Satson HDM-IPBX-003C User Manual

Smart controller for hdmi over ip series
Hide thumbs

Advertisement

Quick Links

Download this manual
HDM-IPBX-003C
HDM-IPBX-003C
Smar t Controller for HDMI over IP
series
User Manual
rev: 170517
Made in Taiwan

Advertisement

loading
Need help?

Need help?

Do you have a question about the HDM-IPBX-003C and is the answer not in the manual?

Questions and answers

Summary of Contents for Satson HDM-IPBX-003C

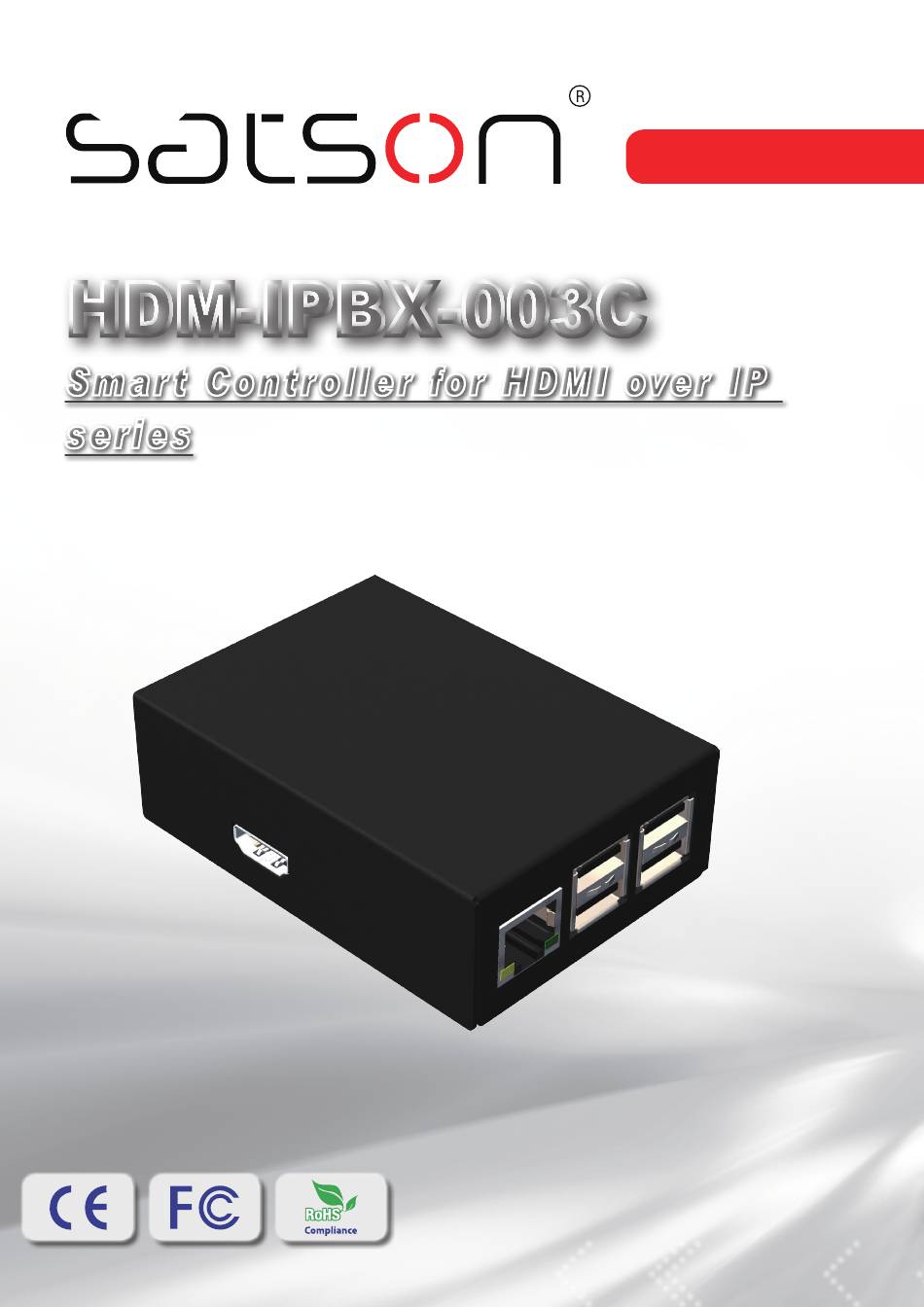

  • Page 1 User Manual HDM-IPBX-003C HDM-IPBX-003C Smar t Controller for HDMI over IP series rev: 170517 Made in Taiwan...

  • Page 2: Table Of Contents

    However, like all electronic equipments, the HDM-IPBX-003C should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.

  • Page 3: Introduction

    Via cooperate network connection, users can remotely access and activate the system from mobile devices. Moreover, HDM-IPBX-003C provides a QR code, allowing fast access into system for smart phone or tablet.

  • Page 4: Specifications

    SPECIFICATIONS Model Name HDM-IPBX-003C Technical Role of usage Smart Controller Input 1x RJ-45 Output 1x HDMI HDMI connector Type A [19-pin female] RJ-45 connector WE/SS 8P8C Mechanical Housing Metal enclosure Model 90 x 65 x 29mm [3.5" x 2.5" x 1.1"]...

  • Page 5: Connection Warranty

    CONNECTION WARRANTY...

  • Page 6: Operation Approach

    OPERATION APPROACH Installation Setup Connect a Laptop/PC, HDM-IPBX-003C into the IP Switch/ Router/ Hub Ensure your IP Switch enables DHCP Server Open the Network and Sharing Center and enter the Change adapter settings page Select the Local Area Connection item and click the right button to enter the Properties page.
  • Page 7 Installation Setup Enter the Properties of Internet Protocol Version 4 (TCP/IP) IP Setting as following:...
  • Page 8 The display will show information, as below image. The default IP is DHCP (obtain an IP address automatically) The QR code allows quick access into Web User Interface pages Login Open the browser and enter the IP address of HDM-IPBX-003C. • Account: admin • Password: admin...
  • Page 9 Connect the HDMI over IP extenders to the Router/Ethernet Hub Mapping Schedule Event Access Setup Smart Controller 1. Mapping In this Page, you can see runtime status of all TX/RX device in controller. The way to do input/ output mapping is to drag TX icon to RX icon. It also provide 10 profile spaces to save the frequent-used scenarios into the device.
  • Page 10 User can schedule the operation for video and power. Just click the button to setup the time, type and action. 3. Event User can set up the condition of trigger point in advance. Event happens, then HDM-IPBX-003C will take Action for self-recovery, real-time notification and alert.
  • Page 11 5. Setup After connecting the HDMI over IP transmitter and receiver units to the Router/Ethernet Hub, the HDM-IPBX-003C will automatically add the device into the control system. More TX and RX information will display here, allowing advanced setting (A/V setting/Reboot/HDMI Re-...
  • Page 12 6. Log This page contain a text log of your system operation history. 7. Smart Controller Enter the Smart Controller page to do advance setting. • Account: admin • Password: admin The home page of Smart Controller shows the system information.

  • Page 13: Warranty

    The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the HDM-IPBX-003C features and specifications is subject to change without further notice.
