Summary of Contents for Eberle P2

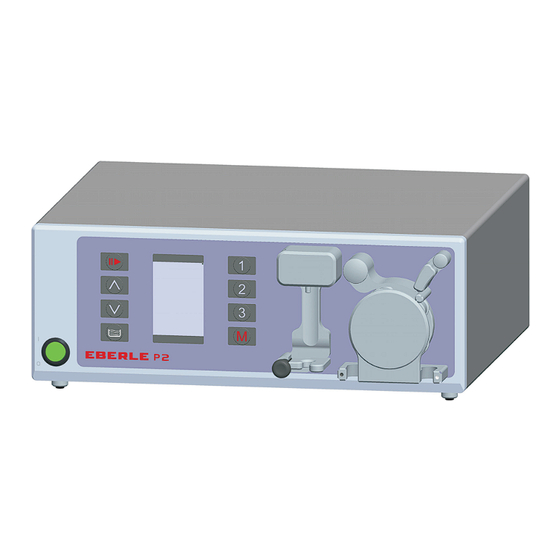

- Page 1 OPERATING INSTRUCTIONS Arthroscopy Pump P2 EBERLE Arthroscopy Pump P2 913031...
- Page 2 OPERATING INSTRUCTIONS Arthroscopy Pump P2 Power switch Start/stop key Key for pressure increase Key for pressure decrease Key for filling LCD display Graphic pressure display Current pressure Display of selected memory location Display of maximum delivery volume Display of set pressure...
- Page 3 OPERATING INSTRUCTIONS Arthroscopy Pump P2 Equipotential bonding Power connector Mains fuse box with fuse holder Connector for power plug Type plate ECB (external communication) Service port Certification label Mains power cable Brief description...
- Page 4 OPERATING INSTRUCTIONS Arthroscopy Pump P2 Tube-Set for Arthroscopy (art. no. 900154 and art. no. 900155) 900154 900155 Bleeder pin art. no. 900154 Luer-lock art. no. 900155 Tube clamp Pressure transducer Reservoir Filter screen Tube clamp White Sealing cap Brief description...
- Page 5 OPERATING INSTRUCTIONS Arthroscopy Pump P2 Patient-Tube with Luer-Lock (art. no. 900153) Blue sealing cap Sterile buffer zone Tube clamp Luer-connector Highly flexible end tube End cap Sealing cap Brief description...
-
Page 6: Table Of Contents
OPERATING INSTRUCTIONS Arthroscopy Pump P2 Contents Page General Information, description and field of application Scope of Delivery Symbol definitions Safety Instructions and Warnings Connection and Start-Up of Device Inserting the Tube-Set and the Complete-Set for Arthroscopy (art. no. 900154,900155, 900209 and art. no. 900210) 4.1.1... -
Page 7: Arthroscopy Pump P2
Arthroscopy Pump P2 1. General Information, description and field of application The EBERLE arthroscopy pump P2 was developed for surgical use in the field of arthroscopy. The device assures a continouos flow of the flush medium by permanently monitoring and controlling pressure. -
Page 8: Symbol Definitions
OPERATING INSTRUCTIONS Arthroscopy Pump P2 3. Symbol definitions Triangular icons advise the user to important information that must be observed. Circular icons with a diagonal bar indicate actions that are prohibited. This symbol alerts the user to an information that must be observed. Failure to observe this information can result in patient or user injury and / or damage the unit. -
Page 9: Safety Instructions And Warnings
OPERATING INSTRUCTIONS Arthroscopy Pump P2 3.1 Safety Instructions and Warnings Utilizing or operating the device in non-conformance to these operating instructions can injure the patient and /or the operating personnel and damage the pump! All Tube sets are singel use products and must not be reused... -
Page 10: Connection And Start-Up Of Device
OPERATING INSTRUCTIONS Arthroscopy Pump P2 4. Connection and Start-Up of Device All components should again be checked visually for any signs of damage before connecting the device and starting it up. A damaged packaging can lead to unsterile or damaged parts. Damaged parts and parts from damaged sterile packaging must not be used and replaced immediately! The sequence shown below must always be observed for connection and start-up. -
Page 11: Arthroscopy
OPERATING INSTRUCTIONS Arthroscopy Pump P2 4.1.1. Leakage Checks of Tube-Sets and the Complete-Set for Arthroscopy If applicable, close the tube-set or the complete-set for arthroscopy on the patient side (delivery status) Switch the pump on by means of the power switch [1], set a pressure greater 100... -
Page 12: Filling Of Patient End-Tube With Luer-Lock
OPERATING INSTRUCTIONS Arthroscopy Pump P2 The sterile person removes the end cap [37] or the highly-flexible end-tube [36] at the still remaining end and connects these with the tube clip or the Luer-connector. The highly-flexible end tube [36] must be removed before connecting the Luer-connector of the arthroscopy shaft. -
Page 13: After Last Surgery Of The Day
OPERATING INSTRUCTIONS Arthroscopy Pump P2 The sterile person removes the end cap [37] or the highly-flexible end tube [36] at the remaining end and connects these with the tube clip or the Luer-connector of the arthroscopy shaft (for connection to the Luer-connector, the highly-flexible end tube [36] must be removed). -
Page 14: Operating
OPERATING INSTRUCTIONS Arthroscopy Pump P2 5. Operating... -
Page 15: Key Assignment
OPERATING INSTRUCTIONS Arthroscopy Pump P2 5.1 Key assignment Power switch [1] Switch on the device by pressing the power button. The power switch has two positions: switched If the device is switched on a green indicator light illuminated in the switch. -
Page 16: Connectors/Ports
ECB [20] Coded connection (Eberle Comunication BUS) The ECB port is used for the mutual control of Eberle devices. Only use EBERLE approved equipment and connecting cables for connection to the ECB. To avoid hazards never touch simultaneously the ECB port and the patient. -
Page 17: Preparing Of Device And Accessories
OPERATING INSTRUCTIONS Arthroscopy Pump P2 7. Preparing of Device and Accessories The device and the accessories must be decontaminated prior to the first and to any subsequent use. The cleaning and sterilization methods apply that are given in the instructions that are included in the delivery of the device or of the accessories or of any other item. -
Page 18: Trouble Shooting
OPERATING INSTRUCTIONS Arthroscopy Pump P2 9. Trouble Shooting Symptom Possible Cause Remedy Complete failure of device - out of operation - power supply failed - check power supply - power switch on - mains fuse defective - replace fuse on device... -
Page 19: Technical Data
OPERATING INSTRUCTIONS Arthroscopy Pump P2 10. Technical Data Safety classification, Protective class IEC 601-1 Application part Typ BF Classification MDD Risk class 93/42/EEC Electrical data Supply voltage 100-240 V/AC Mains frequency 50/60 Hz Mains fuse 2xT1AH250V Max. power input 100 VA... -
Page 20: Compatibility
OPERATING INSTRUCTIONS Arthroscopy Pump P2 11. Compatibility When operating the EBERLE pump P2 only use the EBERLE components listed in the table below! Aarticle no. Description 900153 Patient end-tube with Luer-lock 900154 Tube-set for arthroscopy with bleeder pin 900155 Tube-set for arthroscopy with Luer-connector... -
Page 21: Addresses
OPERATING INSTRUCTIONS Arthroscopy Pump P2 13. Addresses Development, Production and Administration Eberle GmbH & Co. KG Glasbronnenstr. 6 75449 Wurmberg T +49 (0) 7044-9611-0 F +49 (0) 7044-9611-11 info@eberle-med.com www.eberle-med.com Sales Eberle GmbH & Co. KG Carl-Peschken-Straße 5c 47441 Moers...
