WARNING
This equipment must be installed and serviced by a qualified technician in accordance with all applicable
codes and ordinances. Improper installation can create hazards which could result in property damage,
serious injury or death. Improper installation will void the warranty.
The NOTICE label indicates special instructions that are important but not related to hazards.
Notice to Installer
This manual contains important information about the installation, operation and safe use of
this product. Once installation is complete, this manual must be given to the owner/ operator
of this equipment.
aquaguardpoolsystems.com

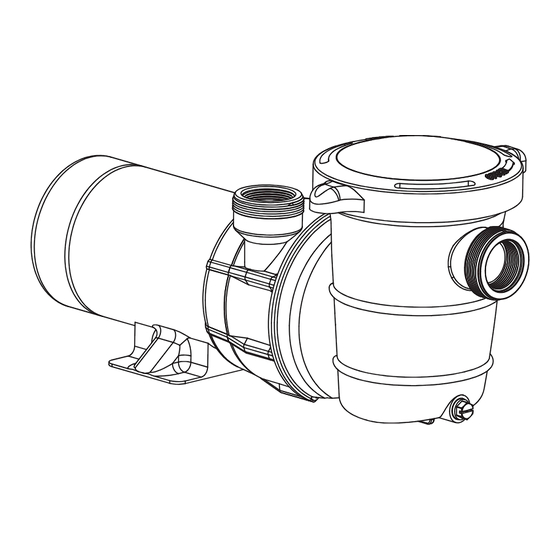

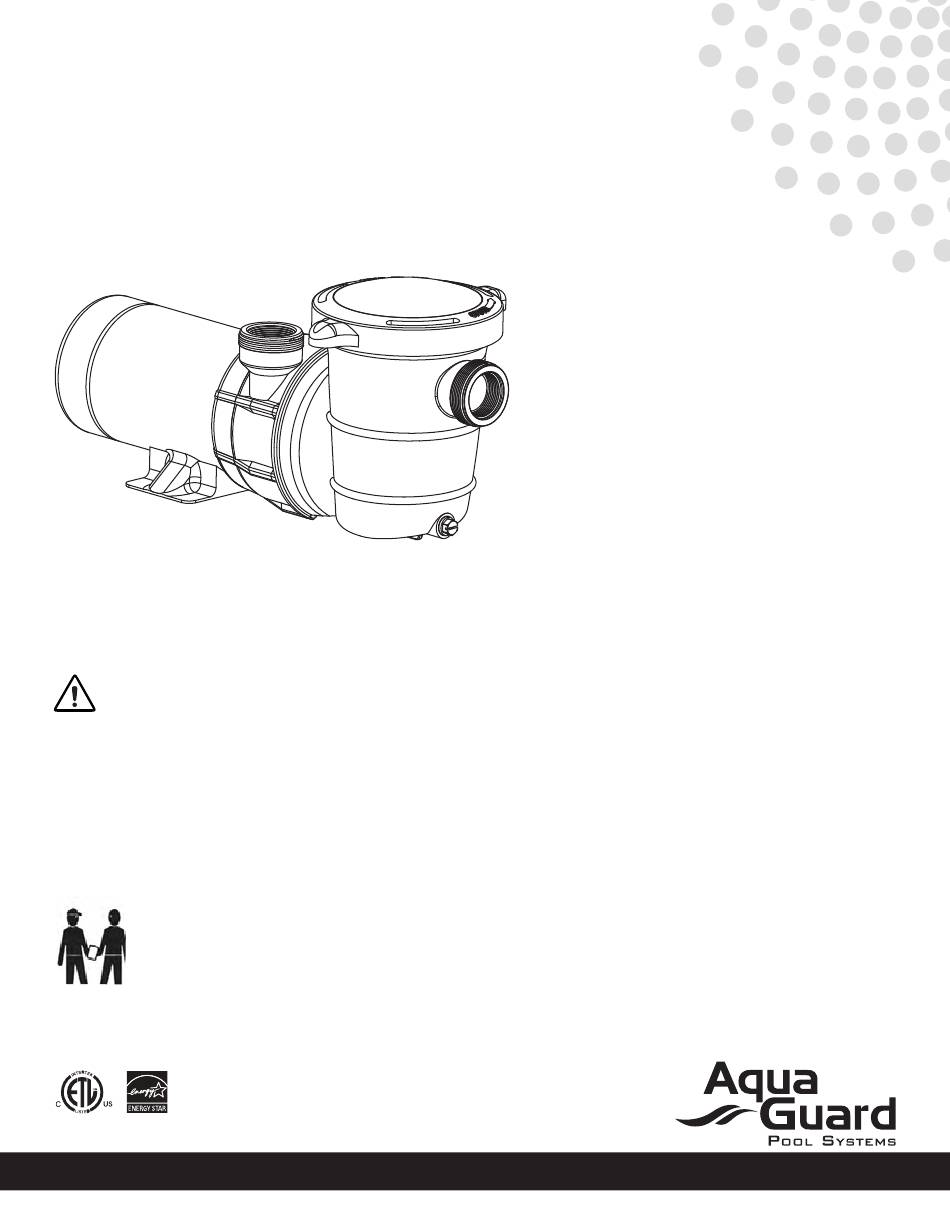

DualFlo
2-Speed Pump
Owner's Manual
Installation, Operation
and Service
Models: DF102S, DF102STL
DF152S, DF152STL
1
Advertisement
Table of Contents
Summary of Contents for Aqua Guard DualFlo DF102STL
- Page 1 DualFlo 2-Speed Pump Owner’s Manual Installation, Operation and Service Models: DF102S, DF102STL DF152S, DF152STL WARNING This equipment must be installed and serviced by a qualified technician in accordance with all applicable codes and ordinances. Improper installation can create hazards which could result in property damage, serious injury or death.
-
Page 2: Table Of Contents
Table of Contents Safety Information ................2 Trouble Shooting ................6 Installation ................... 3 Winterizing ..................6 Initial Startup ..................4 DualFlo Parts Listing ................7 Specifications ..................4 Warranty ....................8 Maintenance ..................5 Safety Information Important Safety Instructions Suction Entrapment Hazards Be sure to read all instructions and warnings carefully. -
Page 3: Installation
Installation Installation Location Electrical Data Locate pump as close to pool/spa as possible, preferably in a Refer to information on motor nameplate for electrical dry, well ventilated area away from direct sunlight. It should service data. All motors should have fused disconnect be on a hard, level surface. -
Page 4: Initial Startup
Initial Startup Do not operate pump until it has been primed as water acts to cool and lubricate the seal. For pumps without strainer bodies and locater above water, close suction line valve and fill pump with water in order to prime. For pumps with strainer bodies and located above water, prime by removing strainer cover and filling strainer body with water. -
Page 5: Maintenance
Technical Data Model Volts / Hz Amps Motor Length (L) 3450/1720 115V/60 10/3.2 11.9" DF102S DF102STL 3450/1720 115V/60 10/3.2 11.9" DF152S 3450/1720 115V/60 12/3.6 12.2" DF152STL 3450/1720 115V/60 12/3.6 12.2" 9.92" 9.76" 10.31" 7.75" 6.67" 4.88" 13.78" 3" 6.50" Maintenance Water Chemistry A proper and consistent use of chemicals is necessary to maintain clean, sanitary water, prevent a spread of germ infection and control the growth of algae which can spoil the appearance and enjoyment of your pool or spa. -
Page 6: Trouble Shooting
Trouble Shooting MOTOR DOES NOT START LOW PUMP PRESSURE 1. Disconnect switch or circuit breaker in OFF position. 1. Pump running at reduced speed (see above) 2. Fuses blown/thermal overload open. Locked motor shaft. 2. Wrong rotation (3 phase only) 3. -
Page 7: Dualflo Parts Listing
DualFlo Parts Listing Models: DF102S, DF102STL DF152S, DF152STL Part Number Description Req’d Qty AGX252772 Strainer Cover AGX310420 Strainer Cover O-Ring AGX252704 Basket AGX252705 Strainer Housing Clip AGX252703 Strainer Housing AGX252702 Housing Cover AGX252871 Impeller for DF102S and DF102STL AGX272971 Impeller for DF152S and DF152STL AGX280030 Seal Assembly AGX252701... -
Page 8: Warranty
Limited Warranty For one (1) year from the date of purchase, will repair or replace, at its option, for the original owner any parts of its filters (“Product”) which are found upon examination to be defective in materials or workmanship. This Limited Warranty covers parts only for a period of one (1) year.
