EZ Lighting EZSL1224CC0002 User Manual

User Manual
Congratulations on your EZ LIGHTING products purchase
PLEASE READ THESE INSTRUCTIONS BEFORE INSTALLATION
12ft Fiexible
LED color changing Strip Light
Model#:
EZSL1224CC0002/
EZSL1224CC0003
LED

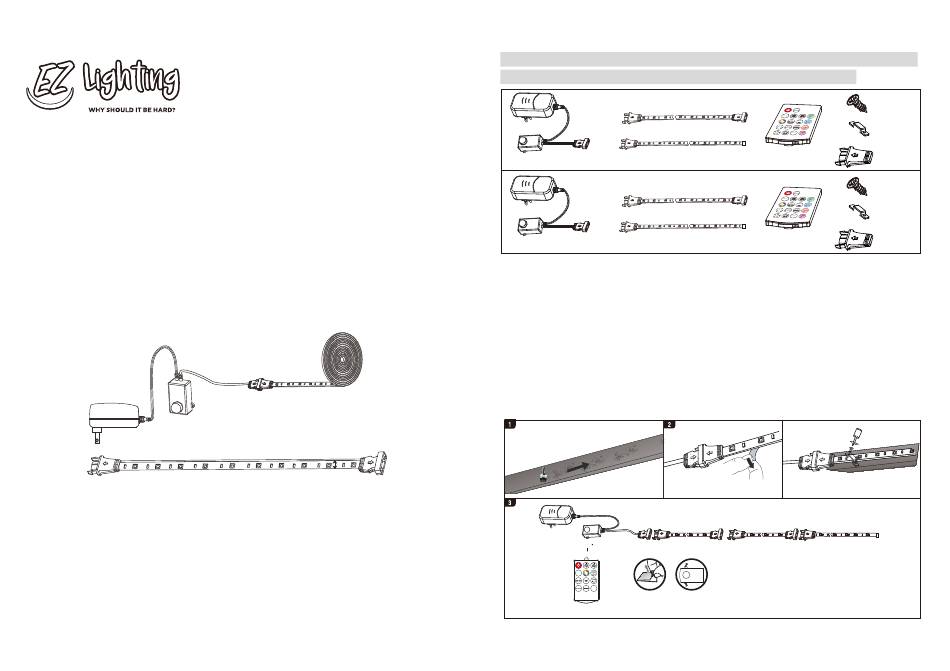

Remove the fixture and mounting package from the box and make sure that no parts
are missing by referencing the illustration on the installation instructions.
EZSL1224CC0002
X1
X1 X1
EZSL1224CC0003
X2
X1 X1
In case of missing parts, please email customercare@ez-lighting.com and we will send them out right away.
ASSEMBLY AND INSTALLATION
1. Remove any surface dust from the area where you will be applying the LED strip.
2A. Remove the protective tape from the adhesive back of the LED strip carefully. Place the LED
strip into the desired location on a clean and dry surface, and press to ensure proper adhesion
to the surface.
2B. Place the LED strip in the desired location. Use the clips and screws to secure the LED
strip as shown. Clips should be placed in open areas of the strip, do not cover the LED chips.
3A. Remove the protective tape from the adhesive back of the RF receiver carefully, then place
the RF receiver into position and press to ensure a proper adhesion to the surface.
3B: Use the two screws to install the RF receiver into desired location.
A
correct
360 °
3A 3B
≤15 m / 49.2 ft
WW C
Flash
Sensor efficiency distance ≤15 m / 49.2 ft and sensor efficiency angle about 360°.
X1
X1
B
A
A B
correct correct
X28
X12
X1
X40
X18
X1
