Summary of Contents for Broughton RG308-18

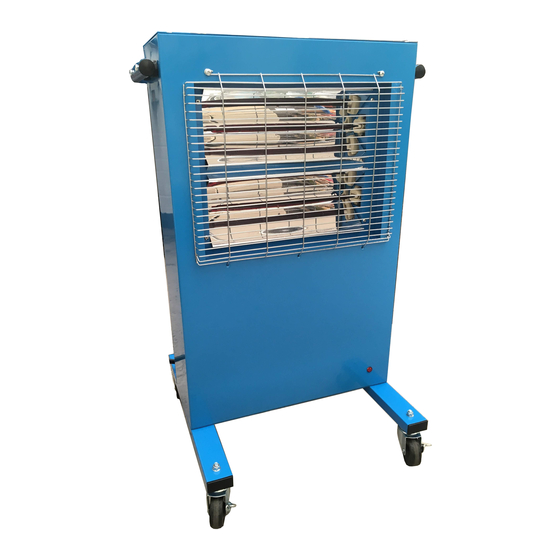

- Page 1 RG308-18 PRODUCT MANUAL. QUARTZ INFRA-RED ELECTRIC HEATER THIS MANUAL COVERS: 230V 2.8Kw, 110V 1.4Kw & 2.8Kw MODELS. P 1 OF 9...
- Page 2 WARNINGS These instructions should be read by: The specifying engineer. The installation engineer. The user. The service engineer. • Failure to follow these instructions may result in risk of personal injury or damage to the equipment. • Damage due to a Failure to follow these instructions will invalidate the warranty.
-
Page 3: Specifications
Specifications: TECHNICAL SPECIFICATIONS. RG308-18 Model 230V 13A 110V 32A 110V 16A Heating capacity. 2.8kw 2.8kw 1.4kw Power supply. 230V. 13A. 50Hz 110V. 32A. 50Hz 110V. 16A. 50Hz Maximum running current. Weight . 16.54kg 17.06kg 16.6kg IP Rating. IP20 IP20 IP20... - Page 4 DO NOT OPERATE THIS MACHINE WITHOUT FITTING THE HANDLE. THE TOP OF THIS APPLIANCE REACHES HIGH TEMPERATURES THAT ARE UNCOMFORTABLE TO TOUCH! Saddle washer. 1: FITTING THE HANDLE TO THE MAINCASE: Fit the handle to the case using 4x M6x45mm hexagonal bolts.
- Page 5 FITTING THE QUARTZ INFRA-RED BULBS: ALWAYS ENSURE THE APPLIANCE IS ISOLATED FROM THE POWER SUPPLY BEFORE ATTEMPTING TO FIT OR CHANGE THE BULBS! The bulbs are supplied in carboard tubes that are cable-tied to the inside of the fire guard. It will be necessary to remove the fire guard to to access the bulbs.
-
Page 6: Maintenance
OPERATING THE HEATER: • Site the appliance on a firm level surface and apply the castor brakes. Do not operate the machine without applying the brakes. • Connect the appliance to the power supply. Check the dataplate for the correct supply. The supplier recommends that extra protection be provided by the use of a 30mA RCD. - Page 7 RG308-18 Spare Parts: Drawing Description Part No Swivel Castor. ME010224 Steel case. BW0202111 Fire Guard. BW020809 Heating bulb. 1400watts. 230v. HE010220 Heating bulb. 1400watts. 110v. (Not Shown) HE010221 Heating bulb. 700watts. 110v. (Not Shown) HE010222 Tube Handle. BW0202112 Reflector Assembly.
- Page 8 P 8 OF 9...
- Page 9 P 9 OF 9...
