EZ Lighting EZSH010650BL00 User Manual

User Manual

7.12"
10.99"
Congratulations on your EZ LIGHTING products purchase
PLEASE READ THESE INSTRUCTIONS BEFORE INSTALLATION
LED Security Lighting Fixture
Model#:
EZSH010650BL00
LED
4.67"
Remove the fixture and mounting package from the box and make sure that no parts
are missing by referencing the illustration on the installation instructions.
X1 X8 X8 X4

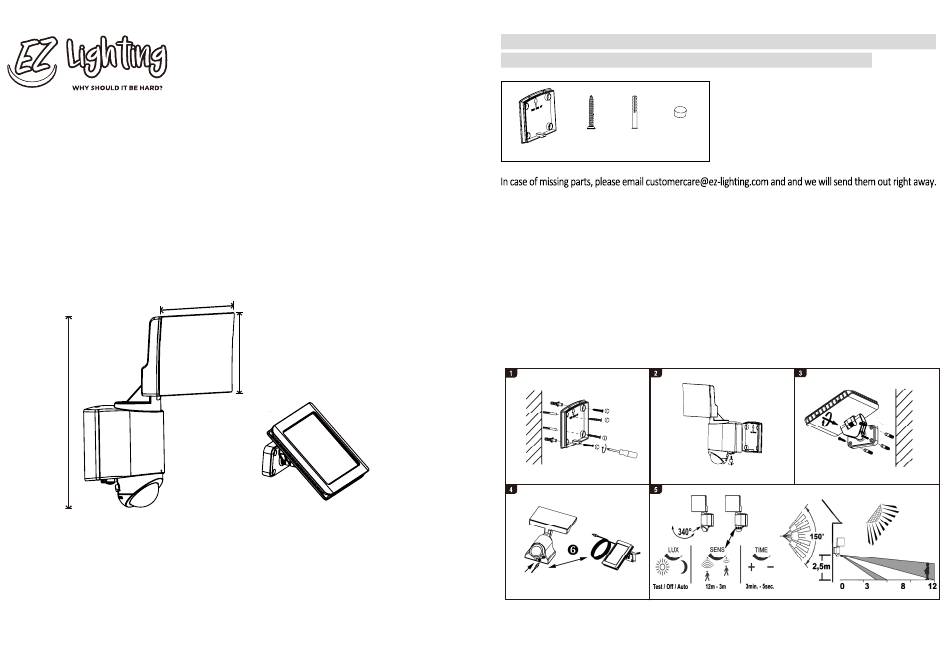

ASSEMBLY AND INSTALLATION

1. Install the back mounting plate with the stamped word "this end up" facing away from the selected
mounting location. Use the back mounting plate screws and wall anchors to secure to wall.
2. Firmly push the lighting fixture onto the back mounting plate ensuring that top of fixture "snaps"
to the back mounting plate. Then install the thumb screw on the bottom of the fixture.
3. Install the solar panel to wall using screws and wall anchors. Note that location selected for solar
panel should have prevalent sunlight.
4. Then connect solar panel to lighting fixture by plugging into bottom of fixture. Note that solar panel
can be located up to 15' from lighting fixture.
5. Setting Controls: Rotate sensor 340 degrees to access controls. Set controls to desired settings and
rotate sensor to return to desired sensing direction.
5
