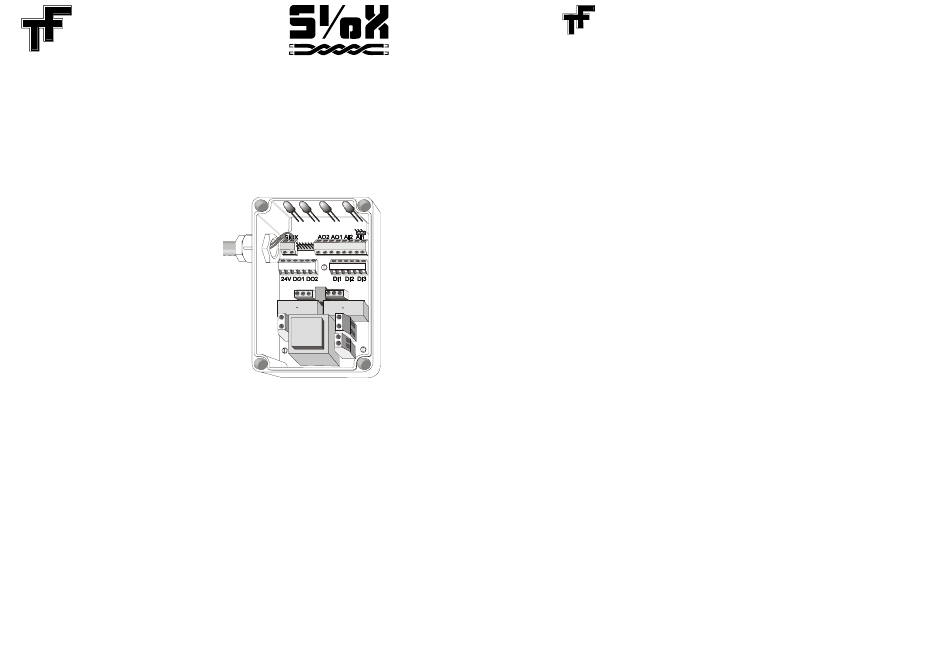

TELEFRANG AB
SIOX Climate Controller Module T05
General Description
T05 is a general microprocessor controller
with enhanced PLC programmability and
SIOX
field
bus
communication.
comprises two analog outputs and two
inputs. Analog input 1 handles voltage /
current or thermistor input. Analog input 2
is preconnected for thermistor input.
Three digital inputs, two outputs, two
power relays and one alarm relay are
included.
T05 can work standalone or together with
other SIOX I/O modules communicating
over a common wire pair for climate
control, energy optimisation and alarm
handling.
Versions
: T05, SIOX Climate Controller with 2 relay outputs, four cable
glands and built-in NTC thermistor at AI2 for local temperature
measurement.
T05-1, SIOX Climate Controller with 3 relay outputs, 3-6 DI, 0-
2 DO, 2-3 AI and 2 AO. A 230 V mains transformer is included.
T05-3, SIOX Heat Exchange Controller with 4 relays, 5 DI, 2 AI
and 2 AO.
T05-4, SIOX Heat Exchange Controller with 4 relays, 5 DI, 2 AI,
2 AO and a Setpoint potentiometer / Mode button.
H:\T05\Man\T05man.wpd/2008-04-07/TF
It
T05 CLIMATE CONTROLLER MODULE p 2
328/287
General Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Versions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installation and Start-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Address Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Analog Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Analog Output Overrange / Underrange . . . . . . . . . . . . . . . . . . . . . . . 6
Analog Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Digital Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Digital Outputs / Relays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Indicator LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
SIOX Message Transfer for T05 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Parameter Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Parameter Specifics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Mechanical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Advertisement
Table of Contents
Summary of Contents for Telefrang SIOX T05
-
Page 1: Table Of Contents
328/287 TELEFRANG AB General Description ........1 Versions . -
Page 2: Block Diagram
T05 CLIMATE CONTROLLER MODULE p 3 T05 CLIMATE CONTROLLER MODULE p 4 Block Diagram T05-1 can alternatively be powered from 230 V mains via a built-in transformer. This connection is shown on next page and must use a separate Pg16 cable gland and include an external power switch and a fuse of max 10 A. -
Page 3: Address Setup
T05 CLIMATE CONTROLLER MODULE p 5 T05 CLIMATE CONTROLLER MODULE p 6 Typically, a two-wire, low capacitance twisted pair is used for the SIOX com- A special feature is added to help recover "lost" modules, i.e. when an unknown munication bus. Shielded cables may be used but unless a correct strategy for bit rate and/or address is selected or the PLC runs a program that erroneously shield grounding is adopted, it may prove to be of little benefit. -
Page 4: Analog Inputs
T05 CLIMATE CONTROLLER MODULE p 7 T05 CLIMATE CONTROLLER MODULE p 8 Analog Inputs Digital Inputs The two inputs are single-ended, meaning that a signal source or transducer Four digital inputs sensing contact closures are available, marked DI1 - DI3 and is connected between the input terminal and the adjacent GND. -
Page 5: Indicator Leds
T05 CLIMATE CONTROLLER MODULE p 9 T05 CLIMATE CONTROLLER MODULE p 10 To permanently change the output range to 2-10 V a write data = 0 / 0 / 40 / to Indicator LEDs EEPROM parameter number 0 / 4 (or 0 / 5) must be done: One extra Digital Output, DO5, controls a red indicator LED. - Page 6 T05 CLIMATE CONTROLLER MODULE p 11 T05 CLIMATE CONTROLLER MODULE p 12 Pos. Value Function Pos. Value Function 0 / 0 / FFFF Soft Reset copies EEPROM to RAM. 0 / 4/0 / 5 4xxx 2-10 V / 0,4-2 V / 4-20 mA Range for AI1 / AI2. 8xxx Permit New Trim Values in parameters 70 / - 7F.
- Page 7 T05 CLIMATE CONTROLLER MODULE p 13 T05 CLIMATE CONTROLLER MODULE p 14 Pos. Value Function Pos. Value Function 0 / A xx0 / 0 / - Edge Triggered Digital Inputs. 0 / 0 / 0 / 0 / = normal. 3C-3F Free Memory for PLC use.
-
Page 8: Parameter Specifics
T05 CLIMATE CONTROLLER MODULE p 15 T05 CLIMATE CONTROLLER MODULE p 16 Parameter 0 / 3, DI Debounce Time Parameter Specifics Setting this parameter to a non-zero value eliminates noise from bouncing Parameter 0 / 0 / , Double Data, Inhibit Data Mode and Speed contacts or electrical interference which otherwise could lead to reading errors. -
Page 9: Safety Precautions
T05 CLIMATE CONTROLLER MODULE p 17 T05 CLIMATE CONTROLLER MODULE p 18 Safety Precautions Electrical Specifications Unit The T05 module is a Class II equipment, i.e. the use of a protective earthing is not required because of the insulation provided between the primary circuit Supply Voltage V DC (transformer and relay contacts) and the secondary circuit. -
Page 10: Environmental Specifications
Operating/Storage Temperature Mechanical Specifications Case Size 130 x 94 x 58 Weight Assistance on safety and technical matters is available from: TELEFRANG AB Varbergsgatan 8 S-412 65 GÖTEBORG SWEDEN Tel: +46 31 40 30 60 Fax: +46 31 40 20 25 E-mail: info @telefrang.se...
