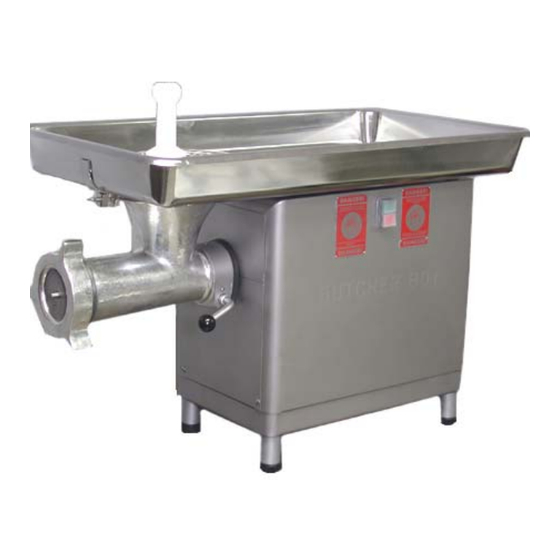

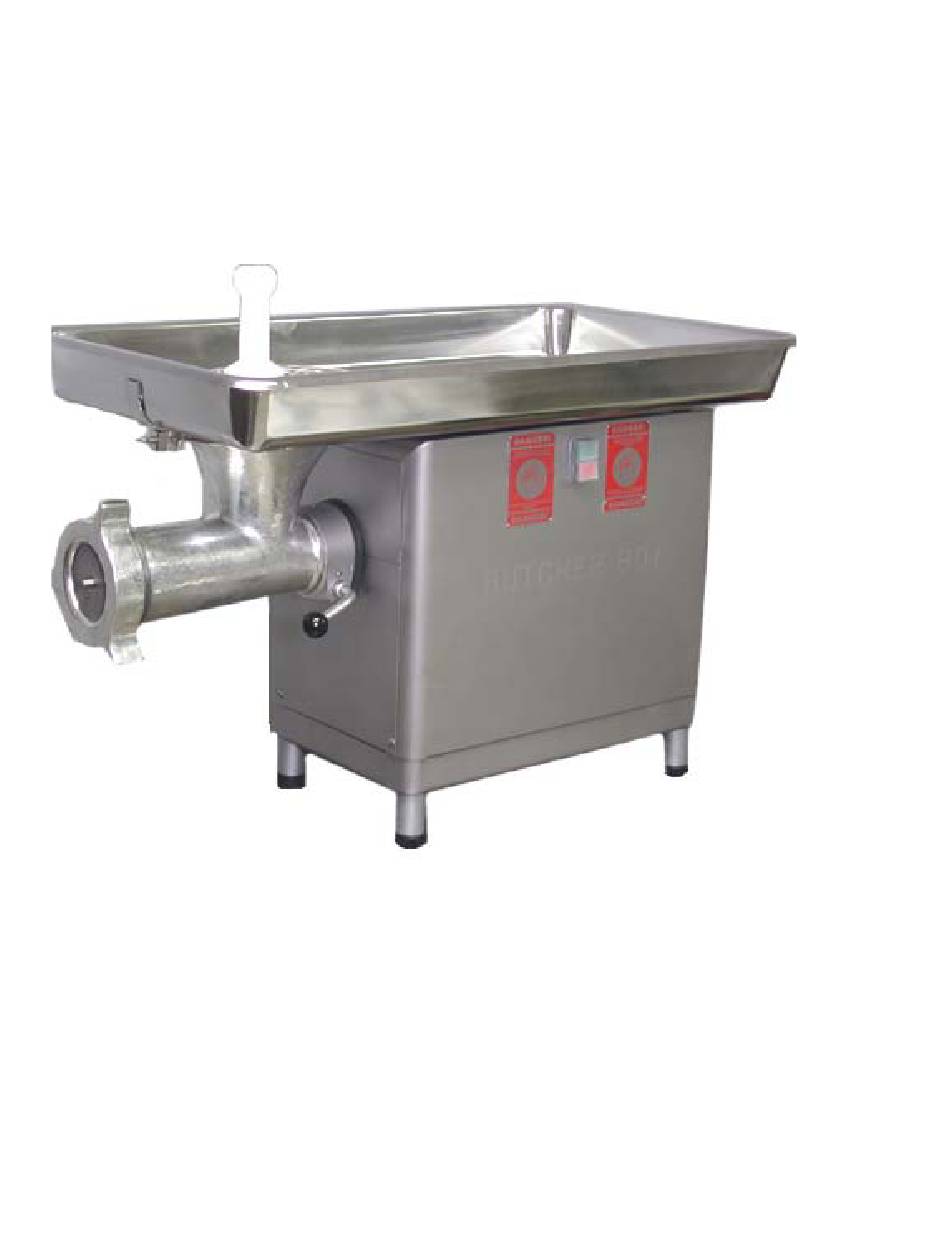

- Page 1 BUTCHER BOY TCA32 COUNTER TOP GRINDER OPERATING INSTRUCTIONS AND PARTS MANUAL SERIAL NO. 13K1087 ON MANUFACTURED BY: AMERICAN MEAT EQUIPMENT LLC 640 Mulberry Ave. Selmer, TN 38375 PH: 731-434-1012 • FAX 731-645-6056...
- Page 2 If you have any doubts about the installation, operation or cleaning of this equipment contact the dealer from which the equipment was purchased or contact the factory. BUTCHER BOY TCA32 GRINDERS are manufactured solely to cut meat, chicken and fish. The grinders are not intended for other purposes.
- Page 3 Under normal operation have your service company replace the oil and check the belts every 12 months. There are no user serviceable electrical components in the BUTCHER BOY TCA32. PAGE 2...
- Page 4 BUTCHER BOY TCA32 COUNTER TOP GRINDER CUTTING GROUP & MISCELLANEOUS NO PART# DESCRIPTION 0032031 KNIFE & PLATE RING 0021038 FEED SCREW STUD 0032042 FEED SCREW ASSEMBLY 0032130 BOWL & GUARD ASSEMBLY 0021022 LOCK HANDLE 0090625 KNOB 0021023 COLLAR 0090412 EDGE SEAL...
-
Page 5: Gearbox Assembly
BUTCHER BOY TCA32 COUNTER TOP GRINDER GEAR BOX ASSEMBLY BUTCHER MK II TCA32 GEAR BOX ASSY SECTION VIEW PART# DESCRIPTION NO PART# DESCRIPTION 0021006 FEED SCREW CHUCK 0090221 SNAP RING 0090413 SEAL 0090410 SEAL 0032020 SPACER 0095518 PLUG 0090309 THRUST BEARING... -
Page 6: Frame & Drive
BUTCHER BOY TCA32 COUNTER TOP GRINDER FRAME & DRIVE MOTORS VOLTAGE PHASE PART# 20.4 92134 (7/8) * 208 13.0 92134 (7/8) 10.2 92134 (7/8) 92118 (7/8) 92118 (7/8) 92118 (7/8) * 208 18.0 92152 (1-1/8) 16.0 92152 (1-1/8) 92154 (1-1/8) - Page 7 BUTCHER BOY TCA32 COUNTER TOP GRINDER FRAME & DRIVE 3HP-230/380/460-3PH-50Hz PART# DESCRIPTION PART# DESCRIPTION 0032150 DRIVEN PULLEY & HUB 0021041 RUBBER BUSHING HUB-MUST BUY WITH PULLEY HN-23-S 0090525 BELT 0032038S BUTCHER BASE 0090199-154 50 Hz MOTOR PULLEY & 0021098 EXTENSION...
-
Page 8: Electrical Components
BUTCHER BOY TCA32 COUNTER TOP GRINDER ELECTRICAL COMPONENTS THIS PAGE FOR USE BY QUALIFIED REPAIR TECHNICIANS ONLY FOR 2HP 115/208 VOLTS 1 PHASE & 3HP 208/230 VOLTS 1 PHASE FOR ALL OTHER SEE P6 MOTOR CONN. BOX PART# DESCRIPTION 0093999-018... - Page 9 BUTCHER BOY TCA32 COUNTER TOP GRINDER ELECTRICAL COMPONENTS THIS PAGE FOR USE BY QUALIFIED REPAIR TECHNICIANS ONLY FOR 2HP 115/208 VOLTS 1 PHASE & 3HP 208/230 VOLTS 1 PHASE FOR ALL OTHER SEE P6 MOTOR CONN. BOX PART# DESCRIPTION 0093999-018...
-
Page 10: Electrical Schematics
BUTCHER BOY TCA32 COUNTER TOP GRINDER ELECTRICAL SCHEMATICS THIS PAGE FOR USE BY QUALIFIED REPAIR TECHNICIANS ONLY 208/230 VOLTS 1 PHASE PUSH BUTTON STOP JUMP SWITCH START (F2) 2.8A FUSE (2) (F1) CONTACTOR 480V TRANSFORMER ENCLOSURE MOTOR PAGE 7... - Page 11 BUTCHER BOY TCA32 COUNTER TOP GRINDER ELECTRICAL SCHEMATICS THIS PAGE FOR USE BY QUALIFIED REPAIR TECHNICIANS ONLY PUSH BUTTON STOP JUMP SWITCH START 208/230/460 VOLTS 3 PHASE (F2) 2.8A FUSE (2) (F1) CONTACTOR 480V TRANSFORMER ENCLOSURE MOTOR PUSH BUTTON STOP...
