Summary of Contents for Volumio Primo

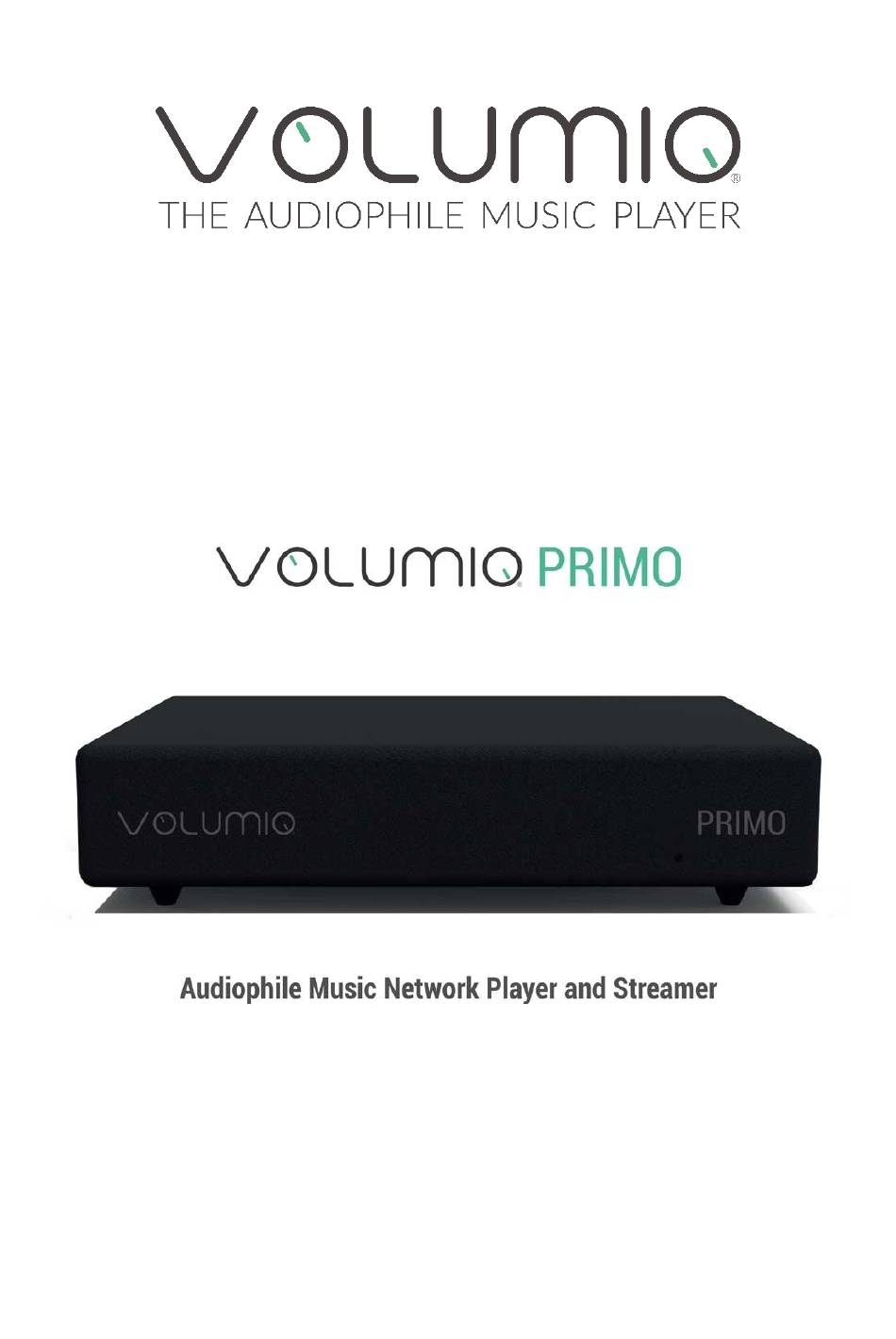

- Page 1 USER MANUAL ENGLISH...

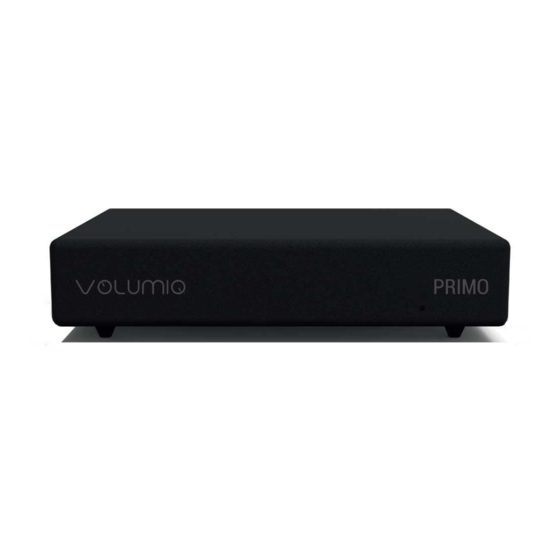

- Page 2 INTRODUCTION Congratulations on your purchase! Volumio Primo is an integrated Audiophile Music Network Player and Streamer designed with 3 key pricinples in mind: ease of use, universal compatibility with music sources and sound quality. To achieve its best potential, please read this manual carefully.
- Page 3 QUICK START GUIDE Primo is a ready to play device. From Unboxing, the unit is ready to play in less than 5 minutes. In order to get started please follow those steps: Step 1: Unbox your Primo Step 2: Connect your Audio system via RCA, SPDIF or USB Step 3: Screw the included Wireless Antenna Step 4: Plug one end of the Power Supply into the wall and the other end into Primo.
- Page 4 Resolution Audio, especially if Router is not located near the Primo or if operated in a very crowded neighbourhood. CONNECTION TO THE UNIT Volumio PRIMO works best when it is connected to your network, since it is meant to be used as a headless device: no monitor connected, and controlled via another device (PC, smartphone, tablet etc).
- Page 5 FIRST SETUP When first turned on, the Primo will initialize for a slightly longer time. Make sure to not remove power and do not operate it for at least 5 minutes on first power up. Once the system is operational and you have connected to it through your network or via the hotspot, you will reach Volumio's web-UI.
- Page 6 Volumio’s User Interface is made up by 4 main components: • Playback Page tab • Browser Page tab • Play Queue tab • Settings pages PLAYBACK PAGE 1 - Command buttons mixer, resampling) Appearance : To select your language, image...
- Page 7 Display album art for the played track or radio Help : Link to the online help (here!) if available. Volumio Shop : A link to the Volumio shop where you'll find compatible and well 8 - Volume control sounding hardware...
- Page 8 BROWSE PAGE Clicking on Browse tab will allow to access all available music sources on your system. 1 – Favorites 7 - Media server Access your favorites tracks Access your media server if any 2 – Playlists 8 - Last 100 Access your Playlists List the last 100 tracks played 3 - Music Library...
- Page 9 QUEUE PAGE Clicking on Queue tab will allow to access to the queue of the tracks that are going to be played. 1 – Random 4 - Clear queue Randomize the order tracks are played Clear the current queue 2 – Repeat 5 - Remove track Repeat the track Remove track from the queue...
-
Page 10: Software Updates
IMPORTANT: Do not remove power in this phase, as it might damage the unit. RESTORE TO FACTORY SETTINGS Volumio Primo can be reset to factory settings (the software version will be reverted to the one applied in production) and all settings and music stored on the device will be deleted. -
Page 11: Specifications
SPECIFICATIONS Analog output: ES9028Q2M DAC via I2S, PCM 24 bits 192kHz , DSD128 via DoP S\PDIF output: PCM 24 bits 192kHz USB output: 4X USB 2.0 , PCM 32 bits 768kHz CPU: Quad core 1.8 GHz ARM Cortex-A17 with passive heatsink RAM:2GB Internal Memory: 16GB Emmc Video Output:HDMI, up to 4K resolution... -
Page 12: Warranty
Software defects are not covered by Warranty. We guarantee your total satisfaction with Volumio products. New, sealed in the box items can be returned within 30 days for a full refund. Used products must be returned within 14 days of delivery for a store credit. -
Page 13: Disposal Informations
Corresponding Source code from us for a period of three years after our last shipment of this product for a charge of 20$ no more than the cost of preparing and mailing a DVD to you. Please contact foss@volumio.org . This offer is valid to anyone in receipt of this information. - Page 14 Via dei Pepi, 76R 50122 Firenze ITALIA Volumio.org Windows® is a registered trademark of the Microsoft group of companies. Mac® and Mac OS® are trademarks of Apple Inc., registered in the U.S. and other countries. DSD is a registered trademark of Sony Corporation.
-
Page 15: Eu Declaration Of Conformity
Regulation (EC) No. 642/2009 Regulation (EU) No. 617/2013 RoHS – Directive 2011/65/EU Equipment Class 1 Equipment Class 2 CE marking (EU conformity marking) Taipei, Taiwan Model Name: Volumio Primo Signature Place of issue 10/07/2016 Jerry Shen Original Declaration Date Printed Name 02/06/2017... - Page 16 EU DECLARATION OF CONFORMITY 1. Model No. : Volumio Primo 2. This declaration of conformity is issued under the sole responsibility of the manufacturer: INTUITU Di Michelangelo Guarise Borgo Pinti, 20 50122 Firenze ITALY 3. Object of the declaration: Audiophile music player 4.
- Page 17 EN 301 489-17 V3.1.1(2017-02) Ecodesign – Directive 2009/125/EC Regulation (EC) No. 1275/2008 Regulation (EC) No. 278/2009 Regulation (EC) No. 642/2009 Regulation (EU) No. 617/2013 RoHS – Directive 2011/65/EU Equipment Class 1 Equipment Class 2 CE marking (EU conformity marking) Signed for and on behalf of INTUITU Di Michelangelo Guarise Taipei, Taiwan Firenze, 01/11/2018 Signature...
