Metaphase Technologies DDC-3 User Manual

Digital dimming controller

Advertisement

Quick Links

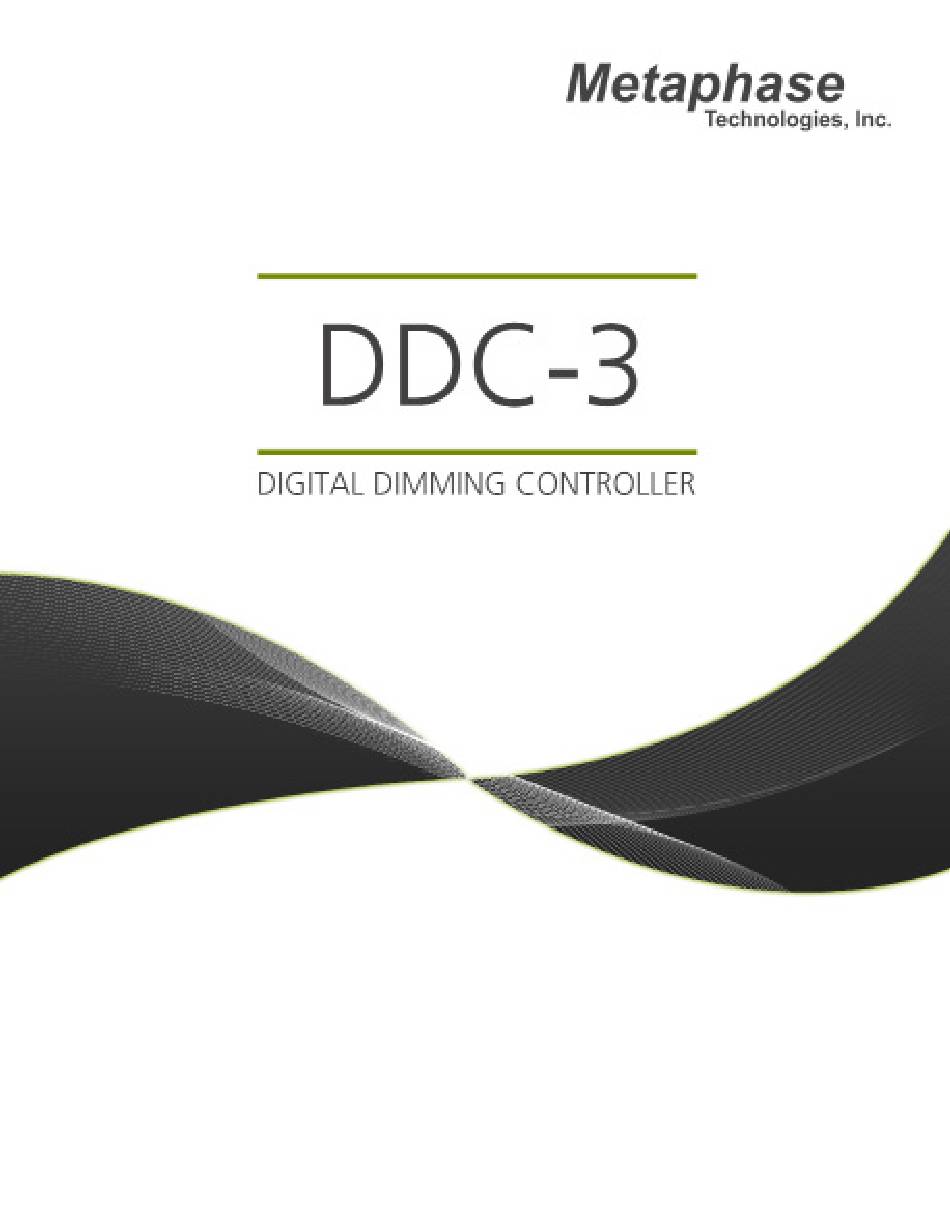

Metaphase
DDC-3
Technologies
USER MANUAL
Version 7.X
August 2014
metaphase-tech.com
pg. 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DDC-3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Metaphase Technologies DDC-3

  • Page 1 Metaphase DDC-3 Technologies USER MANUAL Version 7.X August 2014 metaphase-tech.com pg. 1...
  • Page 2 The DDC-3 may be remotely controlled over Ethernet using Metaphase Technologies’ Me- taBOSS Windows software or by third-party programs using the DDC-3’s Ethernet Com- mands. Additionally, user-adjustments of the DDC-3 are provided by way of a user-friendly LCD interface. metaphase-tech.com...
  • Page 3: Wiring Connections

    • Minimum recommended wire size - 24AWG • The device being driven by the DDC-3’s 0-10V output should be located close to the DDC-3, ide ally 10 ft (3 meters) or less. However, the maximum distance is strongly determined by the electri- cal noise in the operating environment.
  • Page 4: Quick Start

    DDC-3 Technologies Quick Start Follow the steps below to quickly setup the Metaphase DDC-3 for basic operation using the DDC-3 keypad: 1. With external loads disconnected, apply power to the unit. 2. After applying power to the device, the boot-up screen will flash and display the current software versions.
  • Page 5 Octet 1-4 with to change each segment of the IP address. On/Off Menu • Keypad Lock: To prevent changes to the DDC-3 controls, a lock button feature is included • Keypad Unlock: When locked, press the buttons similtaneously and select YES On/Off Menu to enter the setup mode.
  • Page 6: User-Interface Menus

    Technologies User-Interface Menus A. Setup Menus The setup menus below appear only when the DDC-3 is powered on. Each menu described below ap- plies to three channels independently. The menus include: Light Level Max This menu allows the user to set the light level max for each of the three independent channels.
  • Page 7 Metaphase DDC-3 Technologies User-Interface Menus The device should now be restored to the original settings and prompt you to enter setup mode. Jump to Setup Hold down the buttons simultaneously to return to the Setup Menu at any time. On/Off...
  • Page 8 PC to a 172.16 address (such as 172.16.0.100). The subnet mask should be set to 255.255.0.0 on a 172.16 network and 255.255.255.00 on a 192.168 network. •Connect the DDC-3 and host PC, using standard CAT-5 patch cables, to an Ethernet switch. Alternatively, connect the host PC directly to the DDC-3 using a “cross-over” CAT-5 cable.
  • Page 9 Technologies DDC-3 Ethernet Command List For users that do not want to use the MetaBOSS Software or the DDC-3 keypad, Metaphase provides an Ethernet command list that can be embedded into users’ custom programs. Use the link below to ac- cess the complete command list on Metaphase Technologies’...
  • Page 10: Specifications

    Metaphase DDC-3 Technologies [APPENDIX E] Specifications General Channels: 3 Channels, Independantly Controllable Supply Voltage: 12-24VDC regulated supply Supply Current: 30mA. Power supply capable of approx.1A recommended Ethernet Control: UDP messaging listening on port 5000 for any incoming source port IP Address: User selectable.
  • Page 11 Metaphase DDC-3 Technologies DDC-3 Metaphase Technologies, Inc. Pyramid Imaging 4951 Adamo Dr. Suite 224 Tampa, FL 33605-5919 Phone: 813.984.0125 Fax: 866.874.9521 metaphase-tech.com pg. 11 www.pyramidimaging.com...
