M11 Complete User Manual
(Applies to FW1.0.5 and later)
Foreword:
Thank you for purchasing FiiO's high resolution lossless music player M11. To let
you better utilize the M11 to enjoy high-quality music, we have prepared this complete
user manual. We hope this manual will help you get to know the M11 and unleash its
full potential.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fiio M11
Summary of Contents for Fiio M11
- Page 1 Thank you for purchasing FiiO’s high resolution lossless music player M11. To let you better utilize the M11 to enjoy high-quality music, we have prepared this complete user manual. We hope this manual will help you get to know the M11 and unleash its full potential.
-
Page 2: Table Of Contents
Using M11 as a Bluetooth transmitter · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·... -
Page 3: Introduction

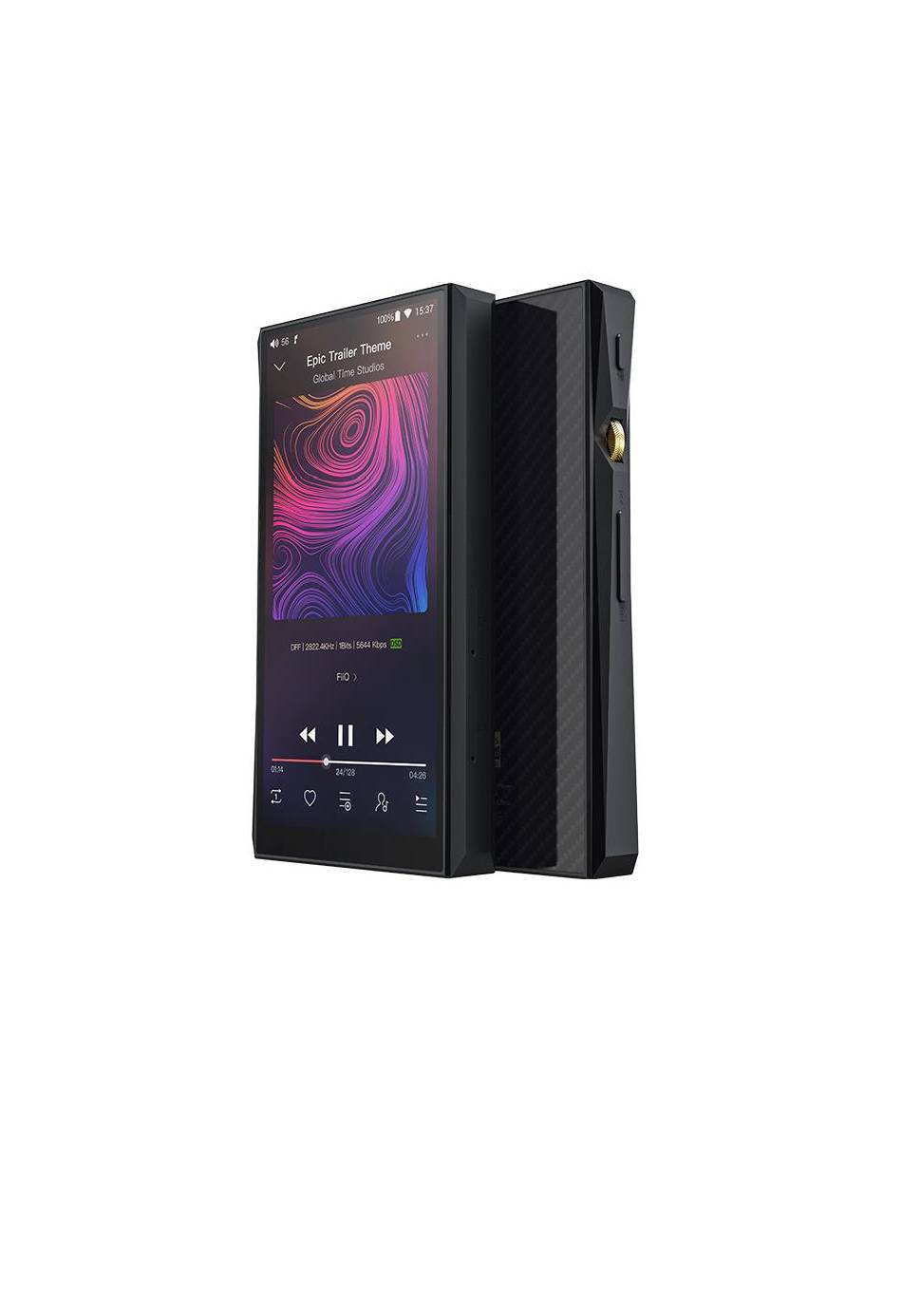

●Introduction The M11 is a high fidelity, high resolution digital audio player, Using Samsung 14nm Exynos 7872, Dual AK4493EQ DACs, 3GB ram, 32GB storage, and support dual external TF card storage(Theoretically up to 4T extension), equipped with 5.15-inch 18:9 HD display. -
Page 4: Buttons And Ports Explained
2) Power / Lock: While M11 is powered off, hold for 2s to turn on; while powered on, hold to display power off / reboot menu; press briefly while powered on to turn screen on / off;... -
Page 5: Main Interface And Drop-Down Display
●Main interface and drop-down display... -
Page 6: Setting Interface
To connect the M11 to WiFi devices / hotspots: 1) Tap the WLAN in setting as shown in the picture below; 2) Slide the WiFi switch to the right (ON) and the M11 will automatically search for and display available WiFi connections;... -
Page 7: Bluetooth
M11 must first be paired with the device as follows: 1) Tap the Bluetooth in setting as shown in the picture below; 2) If Bluetooth on the M11 is off, turn it on by flicking the switch on the upper right to the “ON” position on the right;... -
Page 8: Using M11 As A Bluetooth Receiver
Using M11 as a Bluetooth receiver When M11 is connected to the new Bluetooth device (such as the mobile phone) as a Bluetooth receiver, turn on the "Bluetooth decoding mode" in the Bluetooth settings interface, then the Bluetooth will turned off automatically, turn on the Bluetooth again... -
Page 9: Audio
Disconnect 3. Audio Multifunctional Output: Switch the output in PO/LO/SPDIF Coaxial... -
Page 10: Spdif Coaxial Output
SPDIF Coaxial output: You can choose between DOP and D2p modes. In D2P mode, DSD will Converted to PCM output. In DOP mode, it will original output what you input (The amplifier should support DSD or there will be noise when you play DSD in DOP mode) Gain Sets the gain level of the headphone output to be either High (high volume) or Low (low volume). -
Page 11: Lowpass Filter Mode
Lowpass filter mode: To set the filter modes: Sharp Roll-Off Filter, Slow Roll-Off Filter, Short delay Sharp Roll-Off Filter, Short delay Slow Roll-Off Filter, Super Slow Roll-Off Filter. Wireless playback quality: When the Bluetooth receiver supports multiple Bluetooth audio encode (such as BTR3), you can select which you want to use. -
Page 12: Usb Mode
Storage and USB DAC are provided. If the system of your computer is Windows, please download USB DAC driver on our website and follow relevant instructions to install and use M11 as an USB DAC. MAC computer do not need driver. Download Link:... -
Page 13: Channel Balance
Channel balance: Sets the volume balance between the left and right channels. From being biased leftmost (L10) through centred (0) to rightmost (R10), there are 21 settings available. In-line remote: Response to in-line remotes on connected headsets may be enabled or disabled by your choice. -
Page 14: All To Dsd
ALL To DSD In ALL To DSD mode, PCM will Converted to DSD64 output. Adjustable volume at LO: Adjustable volume at LO: ON/OFF This allows you to set whether the volume through Line Out can be controlled by adjusting the volume level or not. -
Page 15: Airplay
AirPlay: ① To make both the M11 and your Apple device connect to the same WiFi firstly ② Click Airplay of M11 ③ Click the device airplay button, and then choose “FiiO Music Player” to connect. -
Page 16: General
④ Playing music on your Apple device, then you can listen on M11. 4. General General include Navigation control, Power-off timers, Key-lock Settings, Maximum volume setting, Fixed volume setting, Double click to wakeup. Here are a few common function’s introductions. -
Page 17: Navigation Control
Navigation control There are two operation modes: “gesture operation” and “virtual key”. Choose the right way to operate according to your habits. Gesture operation... -
Page 18: Power-Off Timers
Power-off timers Power-off timers includes "Sleep" and "Idle poweroff": Sleep: The device will automatically shut down when the time reaches the set value, and this time can be set to any integer value between 0 and 120 minutes. Note that when the setting is OFF, the sleep shutdown function is turned off. -
Page 19: Key-Lock Setting
Key-lock setting You can choose whether the button will take effect when the screen is locked. Maximum volume setting Prevent the volume from suddenly increasing due to misoperation. Please set the appropriate maximum volume before listening to help protect your hearing. -
Page 20: Double Click To Wakeup
Fixed volume setting The default boot volume is 60, you can set the appropriate boot volume. Double click to wakeup When “Double click to wake-up” is checked, after the display screen is displayed, to double click the screen can wake up the display. -
Page 21: Display
5. Display Display settings include Brightness level, Wallpaper, Sleep, Screen saver, Font size and Display size，The following is a detailed description of several common function items. Sleep Sets the time to go to sleep when there is no operation. After the machine enters sleep for ten minutes, it enters low power mode. -
Page 22: Font Size
Font size You can choose the appropriate font display, including Small, Default, Large, and Largest four fonts. You can choose from four levels of display size, including Small, Default and Large. Display size is reflected in the display icon and text. -
Page 23: Language & Input
6. Language & input 1. “Settings”-“General”- “Language & input”, and “Languages” in sequence, which will bring you to the “Language preference setting” interface; 2. Press “Add a language”; 3. Select a language; 4. After selecting the language, you should press the “=” icon on the right side of the target language and drag the language to the head of the list. -
Page 24: Backup & Reset
7. Backup & reset “Network settings reset” will reset all network settings, including WiFi and Bluetooth. “Factory data reset” will erase all data from your internal storage and restore to the original default settings. Please backup important files in advance. -
Page 25: Firmware Update
OTA update requires a stable connection to Wi-Fi, and once you press the “check update” button, M11 will automatically look for new versions online. If a new version is available, it will notify you of the new version, and then the update can be performed accordingly. - Page 26 3) Please wait patiently after clicking, M11 will start the firmware update automatically. 4) Upon completion of firmware update, M11 will restart itself automatically. It can be used normally after restarting. Note: 1) Please ensure the battery power is sufficient before updating (full power will be the...
-
Page 27: Status Bar
3) Do not manipulate M11 during updating. ●Status bar The status bar at the top of screen shows all kinds of status information about M11. 1——current volume 2——hide icons 3——running app 4——downloading 5——download completed 6——firmware update prompt 7——screen shot 8——micro SD card inserted 9——storage mode connecting with computer... -
Page 28: Fiio Music
●FiiO Music M11 embeds FiiO Music, which is professional audio playback software, specifically designed for Android open-source system and specially built for flagship-level music players. Main functionalities of it are introduced with graphics below. 1. Homepage FiiO Music will enter the homepage when started, as shown below:... -
Page 29: Quickly Locate All Music
Tap to jump to the now playing page Tap to switch among Recently Played, Most Played and Recently Added Settings 2. Quickly locate all music Slide on the letter bar at the right side of touchscreen, and the corresponding initial letter will appear at the screen center. -
Page 30: Functionalities Corresponding To "All Songs" Interface
3. Functionalities corresponding to “All songs” interface Tap the icon (┆) at the right side of each track to show the hidden menu. Then tap the icons in that menu to execute corresponding operation. Tap the hidden icon at the upper right corner of “Local music” interface, the following functions can be performed. - Page 31 Bulk management: batched playback, batched tracks transferring by WiFi (WiFi transfer music), batched add to Playlists, batched Delete, exit batch operation.
-
Page 32: Now Playing Interface
4. Now Playing interface Switching area Current playlist Play mode Add to Favorites Check current artist info Add to Playlists Switching area: clicking on the center area of album cover enables you to switch between album cover and lyrics; sliding to the left or right enables you to play the next or previous track. - Page 33 5. EQ FiiO Music has built-in a graphic equalizer. One may choose between the given genre presets directly, or adjust the ten frequency bands from 20 to 20kHz independently from -12 to +12 dB, thus satisfying your personalized listening needs.
- Page 34 Note: If a factory reset is performed on the M11, all EQ settings will be reset to defaults.
