Page 2: Product Image

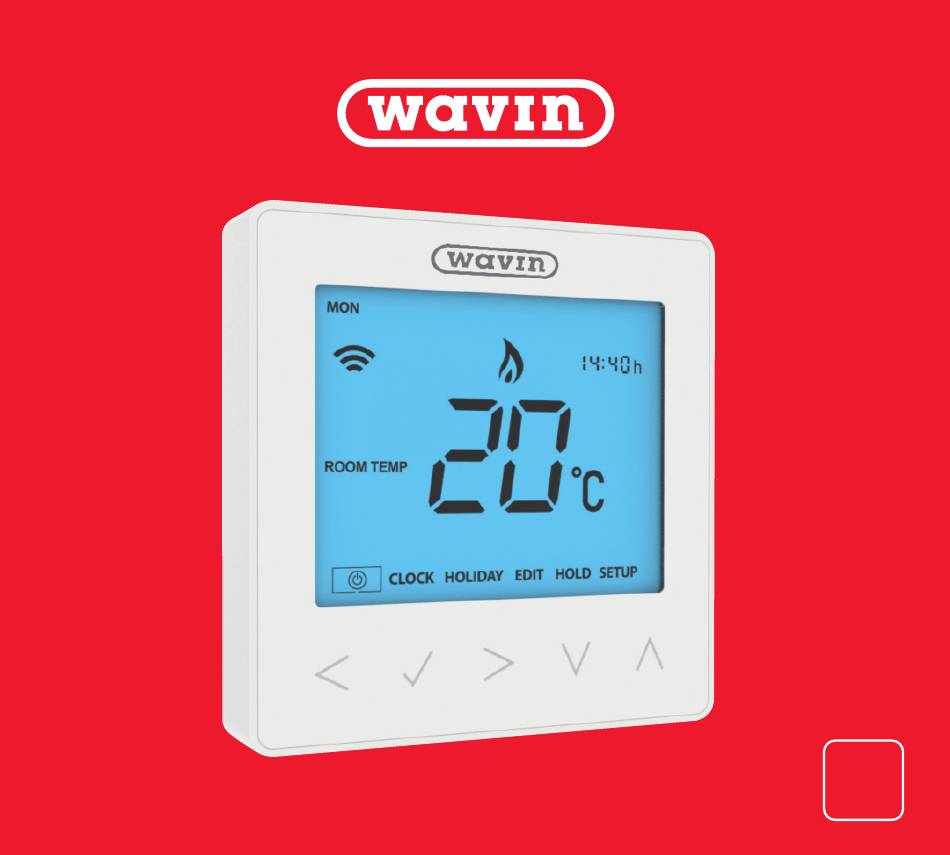

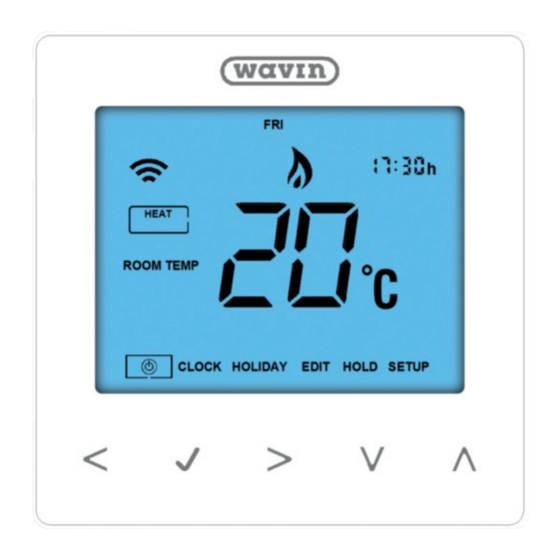

Model: Available in : Sapphire Black and Glacier White Wavin neo... -
Page 3: Table Of Contents
What is a Programmable Error Codes Room Thermostat? 24-27 Thermostat Mode Wiring Diagrams Pairing the neoHub Factory Reset Pairing the neoStat Mode 2 - Time Clock What is a Mesh Network? LCD Display Mode 1 - Thermostat Setting the Switching Times LCD Display... -
Page 4: What Is A Programmable Room Thermostat
Similarly reducing the temperature setting does not affect how quickly the room cools down. Setting a programmable room thermostat to a lower temperature will result in the room being controlled at a lower temperature, and saves energy. Wavin neo... - Page 5 Programmable room thermostats need a free flow of air to sense the temperature, so they must not be covered by curtains or blocked by furniture. Nearby electric fires, televisions, wall or table lamps may also prevent the thermostat from working properly. Wavin neo...
-
Page 6: Pairing The Neohub
Add Location option. • Press the connect button on the neoHub to add the location to your account. • When successfully connected, enter a title for the new location (e.g. Home) and configure the time zone for the system. Wavin neo... -
Page 7: Pairing The Neostat
Pairing the neoStat The next step is to join the neoStat to the neoHub, we recommend joining the neoStat located nearest to the neoHub first. To add a neoStat, follow these steps; • Select Add Zone, enter a zone title and press Add Zone again. -
Page 8: Mode 1 - Thermostat
Mode 1 - Thermostat Wavin neo... -
Page 9: Lcd Display
Cool On - Displayed when cooling is active. Clock - Time displayed in 24 hour format. Holiday Left - Displayed when the thermostat is in holiday mode. Hold Left - Displayed when a temperature hold is active, the remaining time will be shown. Wavin neo... -
Page 10: Temperature Display
Room Temperature Floor Temperature When the neoStat is set to use both the air & the floor sensor, the room temperature will be displayed by default. To view the current floor temperature, press and hold the Left and Right arrow keys for 5 seconds, the floor temperature will then be displayed ........ -
Page 11: Setting The Clock
Use Up / Down keys to set the minutes ..............• Press Tick to confirm selection ................... • Use Left / Right keys to set the the day ..............• Press Tick to confirm selection and return to the main display ......Hours Minutes Wavin neo... -
Page 12: Setting The Comfort Levels
Comfort Levels Explained The neoStat offers three program mode options; Weekday/Weekend programming, 7 Day programming and 24 Hour programming. There is also the option to use the thermostat as a Non-Programmable thermostat. When thermostats are connected to the mesh network, the program mode for the system is configured by using the neoApp. - Page 13 Press Tick to alter LEAVE settings ..................• Repeat these steps to set all comfort levels. set ti For any unused periods me to --:-- • • Use the Left / Right keys to scroll to DONE and press Tick ..... Wavin neo...
-
Page 14: Setting The Temperature
Press Tick to confirm settings and return to the main display ........Set Temperature Set Icon Note: This new temperature is maintained only until the next programmed comfort level. At this time, the thermostat will revert back to the programmed levels. Wavin neo... -
Page 15: Temperature Hold
You will see the HOLD LEFT indication is displayed on screen. The time will countdown the set duration and then revert to the normal program. HOLD LEFT Indicator Hold Time Remaining To cancel a temperature Hold, repeat these steps but reduce the Hold time to 00:00hrs. Wavin neo... -
Page 16: Locking/Unlocking The Neostat
Note: The keypad lock indicator is only displayed when the lock is active. Unlocking the neoStat To unlock the neoStat press Tick once. The display will show 00:00 and you will need to enter the four digit pin number you set previously. -
Page 17: Frost Protection
The frost icon will toggle ON/OFF each time Tick is pressed ..........In this mode, the neoStat will display the frost icon and will only turn the heating ON should the room temperature drop below the set frost temperature (see page 23). -
Page 18: Power On/Off
When the flame icon is absent, there is no requirement for heating to achieve the set temperature but the neoStat remains active. To turn the neoStat off completely, scroll to the Power Icon and hold the Tick key for approximately 4 seconds until the display goes blank .... -
Page 19: Holiday Programming
Friday for 2 days, Saturday will be counted as the first day and the thermostat will revert back to the programmed schedule at 00:00 on Monday. To cancel, repeat these steps but reduce the Holiday duration to 00 days. Wavin neo... -
Page 20: Optional Features
Feature 06 – Sensor Selection: On this neoStat, you can select which sensor should be used. You can select between air temperature only, floor temperature, or both. When you enable both sensors, the floor sensor is used as a floor limiting sensor and is designed to prevent the... - Page 21 7 Day Program Mode - Each day has 4 comfort levels that can be programmed independently. 24 Hour Mode - All days are programmed the same and repeat continuously. Feature 13 - Temperature Format: This function allows you to select between °C and °F. Wavin neo...
- Page 22 Feature Number Setting Value • Use the Up / Down keys to scroll through features .......... • Use the Left / Right keys to adjust the setting within each feature ... • Press Tick to confirm settings ................... Wavin neo...
- Page 23 Cool Set Temperature C - 35 Program Mode 00 = Non - Programmable 01 = Weekday/Weekend (Default) 02 = 7 Day Programming 03 = 24 Hour Mode Temperature Format 00 = C, 01 = F (00 = Default) Wavin neo...
-
Page 24: Re-Calibrating The Thermostat
The remote FLOOR probe has not been wired correctly. The remote FLOOR probe is faulty. E2 = The remote AIR probe has not been connected. The remote AIR probe has not been wired correctly. The remote AIR probe is faulty. Wavin neo... -
Page 25: Thermostat Mode Wiring Diagrams
The thermostat will revert to the main display screen for the selected mode. Note: Factory reset will cancel all parameters that were entered during the set-up and pairing operations. These processes must be repeated after factory reset is completed. Wavin neo... -
Page 26: Mode 2 - Time Clock
Mode 2 - Time Clock Wavin neo... -
Page 27: Lcd Display
Timer Status – Displays the current state of the timed output. Clock - Time displayed in 24 hour format. Holiday Left – Displayed when the thermostat is in holiday mode. Hold Left – Displayed when a temperature hold is active, the remaining time will be shown. Wavin neo... -
Page 28: Setting The Switching Times
• Repeat the steps above to set all periods. For any unused periods enter -- : -- • When complete, use the Left / Right keys to scroll to DONE and press Tick to confirm all changes ..................Wavin neo... -
Page 29: Timer Override
Use the Up / Down keys to set the override duration e.g. 02:00 hours ..• Press Tick to confirm settings and return to main display ........Hold Left and the remaining time will now be displayed. HOLD LEFT Indicator Hold Time Remaining Wavin neo... -
Page 30: Optional Features
24 Hour Mode - All days are programmed with the same on/off switching times. Optional Settings - Feature Table FEATURE DESCRIPTION SETTING Used to pair to the neoHub Pairing Program Mode 01 = Weekday/Weekend Programming (Default) 02 = 7 Day Programming 03 = 24 Hour Mode Wavin neo... - Page 31 Wavin neo...
