Installation, Operation and Maintenance Guide:
Guardian Equipment is the world's leading manufacturer of emergency eyewash and shower technology and related products for use
in industrial facilities, commercial institutions, and many other applications where eye and body protection is a concern. As such,
Guardian drench hose units and dual purpose eyewash/drench hose units have been installed in thousands of facilities over the past
thirty years. These units are relied upon to instantly flush the user's eyes, face or body should a chemical spill occur.
Like all Guardian products, our eyewash/drench hose and drench hose units are designed, engineered and manufactured for reliable
performance and exceptional durability. However, like all of our products, they must be installed correctly, operated properly,
inspected regularly and maintained periodically to assure that they will be available when needed. This Installation, Operation and
Maintenance Guide will assist users and facility maintenance personnel in these activities.
Guardian Equipment
312 447 8100
1140 N North Branch St
312 447 8101
Chicago, IL 60642
gesafety.com
TELEPHONE
FACSIMILE
Operation and Maintenance Guide:
Eyewash/Drench Hose Units
Drench Hose Units
rev. 011619 / © 2019 Guardian Equipment
IOM-DH-010
1
Advertisement
Table of Contents
Summary of Contents for Guardian G5022
- Page 1 As such, Guardian drench hose units and dual purpose eyewash/drench hose units have been installed in thousands of facilities over the past thirty years. These units are relied upon to instantly flush the user’s eyes, face or body should a chemical spill occur.

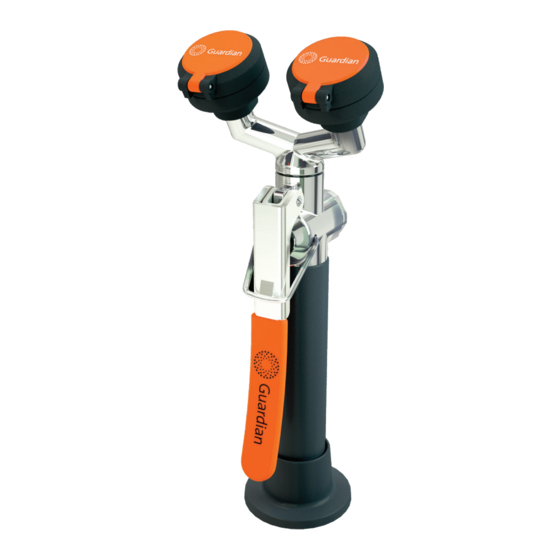

- Page 2 Twenty years ago, Guardian introduced the first dual purpose eyewash/drench hose unit. These units are designed to meet the provisions of ANSI Z358.1-2014 as both an eyewash and a drench hose. Dual purpose eyewash/drench hose units are typically installed on a countertop next to or behind a sink.
- Page 3 Like all emergency eyewash and shower equipment, eyewash/drench hose and drench hose units must be inspected on a regular basis to assure that, in an emergency, they are available for immediate and effective use. Guardian recommends that the following inspection schedule be followed for all emergency eyewash and shower equipment: Weekly Activation: In accordance with the provisions of ANSI Z358.1-2014, all emergency equipment should be activated at least...
- Page 4 Eyewash/Drench Hose Units Drench Hose Units Spray Heads 1. Inspect “Flip Top” Dust Cover(s). Guardian developed the “flip top” style dust cover as an alternative to the loose caps with chains that other manufacturers use. The ”flip top” cover is attached to the spray head by a permanent stainless steel rivet so it can never be lost or removed.
- Page 5 Eyewash/Drench Hose Units Drench Hose Units Valve 1. Inspect Valve for Leakage Through Seat. The Guardian squeeze valve is manufactured from components that will provide the valve with exceptional durability. The valve seat is machined from solid stainless steel bar stock and the valve disc is high durometer synthetic rubber for positive shutoff and exceptional wear resistance.
- Page 6 275 PSI, has a burst pressure of 1000 PSI and a maximum operating temperature of 150°F. Guardian has used reinforced PVC hose for drench hose units for over thirty years and believes that this hose is the best choice for this application. Reinforced PVC hose has the flexibility of rubber but is much more durable.
- Page 7 Replace hose immediately. turns freely on fittings or there is a gap or fitting. separation between the crimped ferrule and end fitting. rev. 011619 / © 2019 Guardian Equipment Guardian Equipment 312 447 8100 TELEPHONE 1140 N North Branch St...
- Page 8 As noted above, Guardian recommends, and ANSI Z358.1-2014 provides, that emergency equipment be inspected at least annually for continued compliance with the provisions of the standard. Guardian has prepared the following checklist to assist in the annual compliance inspection. This list is based upon the provisions of the ANSI standard relating to eyewash and drench hose units.
- Page 9 3. Water delivered by unit is tepid (60-100°F). 8.2.3.4 Training 1. All employees trained in location and proper use of 8.2.4.4 drench hose units. rev. 011619 / © 2019 Guardian Equipment Guardian Equipment 312 447 8100 TELEPHONE 1140 N North Branch St 312 447 8101...
- Page 10 Note: Prior to 2002, Guardian manufactured the AP600-220-3 squeeze valve. This valve had an integral (non-removable) valve seat. In 2002, Guardian replaced this valve with the AP600-240 valve with a replaceable stainless steel valve seat. All eyewash/drench hose units and drench hose units manufactured after 2002 utilize the AP600-240 squeeze valve.
- Page 11 250-010G 250-006G Wall Bracket for Eyewash/Drench Hose Units 8-1/2" x 11" plastic sign 8-1/2" x 11" plastic sign rev. 011619 / © 2019 Guardian Equipment Guardian Equipment 312 447 8100 TELEPHONE 1140 N North Branch St 312 447 8101 FACSIMILE Chicago, IL 60642 gesafety.com...
- Page 12 470-005R 3.2 Gallon Per Minute 1.6 Gallon Per Minute Flow Control (pkg of 6) Flow Control (pkg of 6) rev. 011619 / © 2019 Guardian Equipment Guardian Equipment 312 447 8100 TELEPHONE 1140 N North Branch St 312 447 8101...
