Shenzhen Urion Technology U80R Instruction Manual

Upper arm electronic blood pressure monitor

Hide thumbs

Table Of Contents

UPPER ARM ELECTRONIC

BLOOD PRESSURE MONITOR

Model: U80R

Instruction Manual

Table of Contents

Need help?

Do you have a question about the U80R and is the answer not in the manual?

Questions and answers

Summary of Contents for Shenzhen Urion Technology U80R

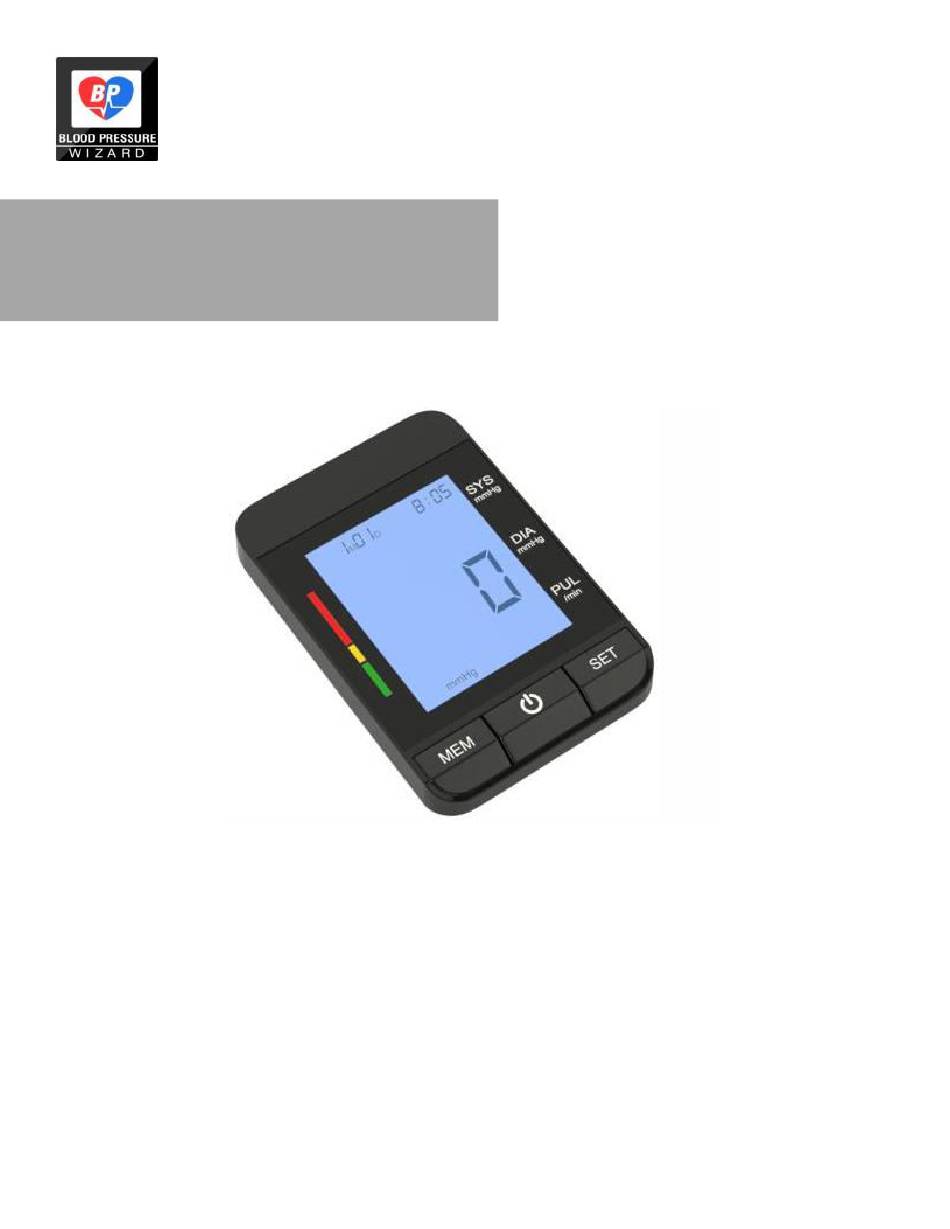

Page 1 UPPER ARM ELECTRONIC BLOOD PRESSURE MONITOR Model: U80R Instruction Manual...
Page 2: Table Of Contents
Table of Contents Introduction Safety Information Product Layout Battery Installation Settings Preparing for a Test Fitting the Cuff Proper use of the Unit About Blood Pressure Errors Care and Maintenance Specifications Warranty EMC Declaration Technical...
Page 3: Introduction
Introduction  Your new digital blood pressure monitor uses the oscillometer method. This means the monitor detects your blood's movement through your brachial artery and converts the movement into a digital reading. An oscillometer monitor does not require a stethoscope. ...
Page 4: Safety Information
Safety Information  To assure correct usage of this product, important safety measures should be followed. Please familiarize yourself with the warning symbols below. Symbol Descriptions The following symbols may appear in this manual, on the device’s label, on the device itself, or on its accessories.
Page 5 Safety Information People with arrhythmia, diabetes, apoplexy, or blood circulation problems should use this device in addition to physician’s care. Contact your physician for specific information about your blood pressure. Self-diagnosis and treatment may be dangerous. Always follow the instructions of your physician or a licensed healthcare provider. Always keep this device out of children’s reach.
Page 6 Safety Information Do not use a cellular phone near the unit. It may cause a reading error. Do not use near flammable gases (such as anaesthetic gas, oxygen or hydrogen) or flammable liquids (such as alcohol) near the unit. WARNING: Do not dispose of electrical appliances as unsorted municipal waste.
Page 7: Product Layout
Product Layout Body Display Cuff size and connection Insert cuff hose into the left side of the unit, as shown in the picture. (Only use the provided cuffs) This unit comes with two cuffs: Standard: 8” – 16” Extra Large: 12” – 21”...
Page 8: Battery Installation
Battery Installation Battery Installation A) Remove battery cover as shown in the picture. B) Insert 4 AAA batteries into the compartment and ensure each battery is facing the proper direction. Low Battery and Replacement When you see this symbol, it’s time to change the batteries: Battery Type and Replacement Please use 4 AAA 1.5V alkaline batteries.
Page 9: Settings
Settings Initial Settings: 1. Choose between User A and User B With unit OFF, press the SET button. The screen will display: Press the MEM button to switch between User A and User B. Press the SET button to confirm your choice of user. The unit will now ask you to set the year.
Page 10 Settings 3. Month and Day Setting The screen will display xxMxxD and xxxx. Press the MEM button to advance to the current month. Press the SET button to confirm your choice of month. The unit will now ask you to set the day. Press the MEM button to advance to the current day.
Page 11: Preparing For A Test
Preparing for a Test Relax for five minutes prior to taking a test.  Avoid eating, drinking alcohol, smoking, exercising, and bathing 30 minutes prior to taking a test. Each of these activities can influence your test results.  Roll up your sleeve to reveal your upper arm. ...
Page 12: Fitting The Cuff
Fitting the Cuff Place the cuff flat on a table. The Velcro should be facing down. Pass the end of the cuff through the loop to form a circle. The Velcro will now be facing up. Pull the cuff over your left upper arm so that the tube points in the direction of your palm and is lined up with your middle finger.
Page 13: Proper Use Of The Unit
Proper use of the Unit Measuring Procedure: Once the cuff is propely fitted on your upper arm, you are ready to take a test. Press the START/STOP button. All symbols will appear briefly on the display. The pump will begin to inflate. After a suitable amount of pressure is achieved, the pump will stop, and the pressure will gradually decrease.
Page 14: About Blood Pressure
About Blood Pressure Blood pressure is the pressure exerted in the arteries. The systolic blood pressure value represents the blood pressure produced by the contraction of the heart muscle. The diastolic blood pressure value represents the blood pressure produced by the relaxation of the heart muscle.
Page 15: Errors
Errors Error Indicators Symbol Cause Correction Wrap the cuff properly. Weak signal or sudden E - I pressure change. Remeasure. The device will fail to record an accurate measurement when Strong external near a cell phone or other radio-wave device. E - 2 disturbance.
Page 16: Care And Maintenance
Care and Maintenance Care for the Main Unit and Blood Pressure Monitor Cuff  Store the unit in its case when not in use.  Clean the unit with soft dry cloth.  Do not use abrasive or volatile cleaners. ...
Page 17: Specifications
Specifications Description Automatic upper arm blood pressure monitor Display LCD digital display Measuring principle Oscillometric method Measuring localization Upper arm Pressure 0 ~ 299 mmHg Measurement range Pulse 40 ~ 199 pulses/min Pressure ± 3mmHg Accuracy Pulse ± 5% of reading Pressure 3 digits display of mmHg LCD indication...
Page 18: Warranty
Warranty Information Statement ■ The unit is intended to be used by adults at home, or by a medical center, to measure blood pressure and pulse via the upper arm. ■ The unit satisfies the requirements of EN 1060-1: 1995+A2: 2009 Non-invasive sphygmomanometers, and EN 1060-3: 1997+A2: 2009 Non-invasive sphygmomanometers.
Page 19: Emc Declaration
EMC Declaration Guidance and Manufacturer's Declaration – Electromagnetic Immunity This blood pressure monitor is intended for use in the electromagnetic environments specified below. The customer or the user of this device should ensure that it is used in such an environment. Immunity Test IEC 60601 Test Compliance Level...
Page 20 EMC Declaration Immunity IEC 60601 Test Compliance Electromagnetic Environment – Guidance Test Level Level Portable and mobile RF communications equipment should be used no closer to any part of the blood pressure monitor, including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter.
Page 21 EMC Declaration Guidance and Manufacturer’s Declaration – Electromagnetic Emissions The blood pressure monitor is intended for use in the electromagnetic environments specified below. The customer or the user of the device should ensure that it is used in such an environment. Electromagnetic Environment –...
Page 22 EMC Declaration Recommended Separation Distances Between Portable and Mobile RF Communications Equipment and the Blood Pressure Monitor The blood pressure monitor is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the blood pressure monitor can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the device as recommended below, and according to the maximum output power of the communications equipment.
Page 23: Technical
Technical Indicators Type of protection against electric shock Class II Degree of protection against electric shock Type BF applied part Mode of operation Continuous operation Grade of waterproof IP22 Product life Two years Sterilized oxygen-rich environment For use in an...
Page 24 UPPER ARM ELECTRONIC BLOOD PRESSURE MONITOR Shenzhen Urion Technology Co., Ltd. Floor 4-6 of Building D, Jiale Science & Technology Industrial Zone No. 3, ChuangWei Road, Heshuikou Community, MaTian Street, GuangMing New District, 518106 ShenZhen PEOPLE'S REPUBLIC OF CHINA Tel: (86) 755-29231308 E-mail: urion@urion.com.cn...
