EggBikes - 20 May 2018
Applicability: bootloader v3, firmware v1.0.9, smartphone application: V1.0.1

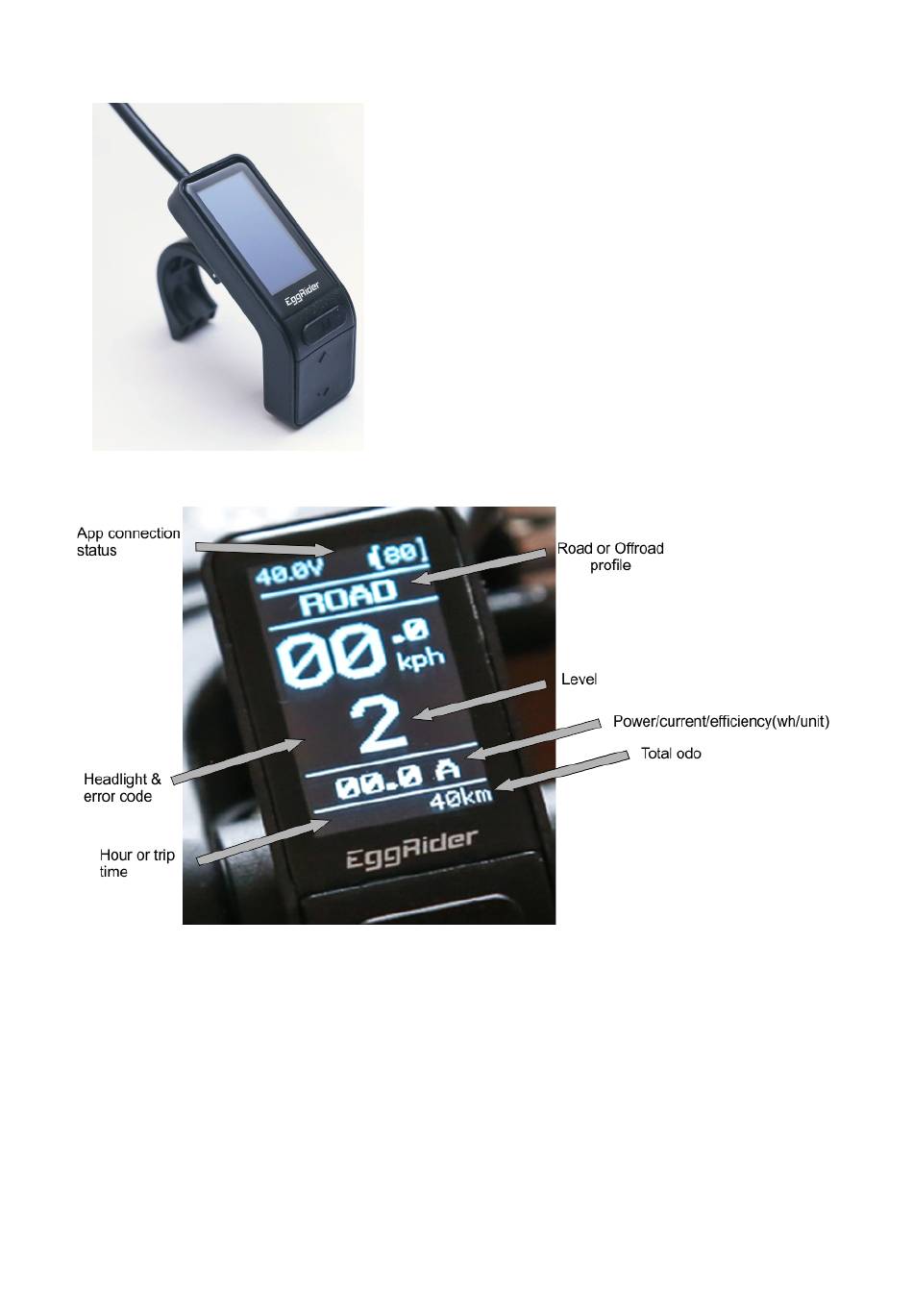

1. Main screen content
● Battery percentage
● Connection status
● Voltage
● Riding profile (road or offroad)
● Speed (mph or kph)
● Error Code (if error is present)
● Headlight status (if headlight switched on)
● Riding Level
● Power (W), Current(A), or efficiency (watt per distance unit)
● Hour (if the app was connected previously) or total trip time
● Odometer
Advertisement
Table of Contents
Summary of Contents for EggBikes EggRider V2
- Page 1 EggBikes - 20 May 2018 Applicability: bootloader v3, firmware v1.0.9, smartphone application: V1.0.1 1. Main screen content ● Battery percentage ● Connection status ● Voltage ● Riding profile (road or offroad) ● Speed (mph or kph) ● Error Code (if error is present) ●...
- Page 2 EggBikes - 20 May 2018 Applicability: bootloader v3, firmware v1.0.9, smartphone application: V1.0.1 2. Buttons: Power : short press to turn on or off Up : increase the assist level Down : decrease the assist level Mode : switch between road and offroad Additionally, the following button combinations are available: When the display is off, ...
-
Page 3: Firmware Update
EggBikes - 20 May 2018 Applicability: bootloader v3, firmware v1.0.9, smartphone application: V1.0.1 4. App interface Press “Back” button to see the rest of the setting screens. 4. Firmware update The recommended app for updating the software is NrfConnect from N ordic Semiconductor . - Page 4 EggBikes - 20 May 2018 Applicability: bootloader v3, firmware v1.0.9, smartphone application: V1.0.1 c) In case of firmware update the display will restart at the end of the process. In case of bootloader update, the display will shut down at the end of the process, and it will require a long power button press to start.
- Page 5 The eggrider V2 does not automatically ensure legal compliance. It does provide all the flexibility that the motor or controller can offer. The “Road” and “Offroad” are merely 2 independently configured profiles.
