TAC Vista TAC Xenta OP Manual

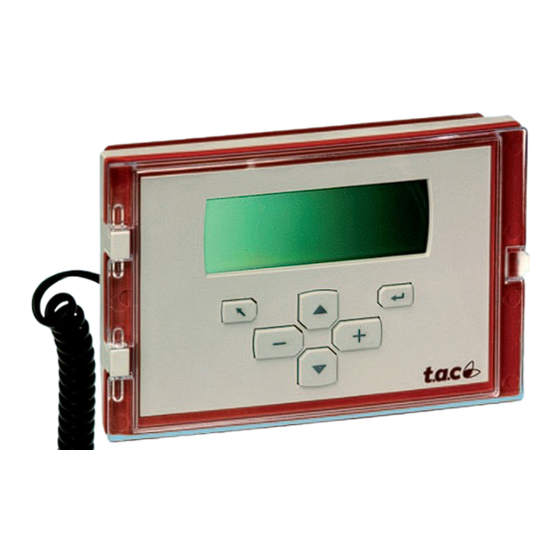

TAC Xenta OP is a small operator panel designed to be used with the TAC Xenta 100, 300 or 400 units. It has an LCD display with
4x20 characters and six push buttons.
TAC Xenta OP/RU can also display Cyrillic characters. TAC Xenta OP is connected via a modular jack situated on the rear of the unit.
Both communication and power supply are handled by this cable. TAC Xenta OP may also be connected directly to the network,
using the screw terminals.
The LCD display may be backlit.
The operator panel allows access to the parameters and makes it possible to list alarms without communicating with a central system.
Additionally, it is used to monitor status, adjust setpoints and time channels. All values are displayed with an explanatory text in the
alphanumeric display.
The operator panel can be placed on the TAC Xenta units, mounted on a cabinet front or used as a hand-held terminal.

TECHNICAL DATA

Supply voltage (from TAC Xenta or external source)
. . . . . . . . . . . . . . . . . . . . . . . . . . .24 V AC ±20%, 50/60 Hz
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . or 20–40 V DC
Power consumption. . . . . . . . . . . . . . . . . . . . . . . . . max. 0.5 W
With the display backlight on, in total . . . . . . . . . max 1.2 W
Transformer sizing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 VA
Ambient Temperature
Storage . . . . . . . . . . . . . . . –20 °C to +50 °C (–4 °F to +122 °F)
Operation . . . . . . . . . . . . . ±0 °C to +50 °C (+32 °F to +122 °F)
Humidity . . . . . . . . . . . . . . . . . . max. 90% RH non-condensing
Mechanical
Enclosure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ABS/PC
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . see diagram
Weight (including package) . . . . . . . . . . . . . . . 0.4 kg (0.88 lbs)
Panel cutout . . . . . . . . . . . . . . . . .136 x 91.5 mm (5.4 x 3.6 in)
Enclosure rating:
Hand-held panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IP 20
Cabinet mounted . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IP 43
Network communication . . . . . . . . . . . . . . . .TP/FT-10, 78 kbps
Communication protocol . . . . . . . . . . . . . . . . . . . . . . . . LonTalk
Flammability class, materials . . . . . . . . . . . . . . . . . . .UL 94 5VB
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . see Fig. 1
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.2 kg (0.44 lb.)
Unit connection:
TAC Xenta 100 . . . . . . . . . . . .via modular jack on Wall Module
TAC Xenta 300 . . . . . . . . . . . . . modular jack or screw terminal
TAC Xenta 400 . . . . . . . . . . . . . modular jack or screw terminal
03-00058-01-en
TAC Xenta OP

Operator Panel

Agency Compliances
Emission: CE . . . . . . . . . . . .EN 61000-6-3, C-Tick, FCC Part 15
Immunity: CE. . . . . . . . . . . . . . . . . . . . . . . . . . . . EN 61000-6-1
Safety: CE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .EN 61010-1
UL 916, C-UL US. . . . Enclosed Energy Management Equipment
Part Numbers
Operator terminal TAC Xenta OP . . . . . . . . . . . . . .0-073-0907
Operator terminal TAC Xenta OP/RU . . . . . . . . . . .0-073-0923
Mounting kit panel TAC Xenta OP . . . . . . . . . . . . .0-073-0904

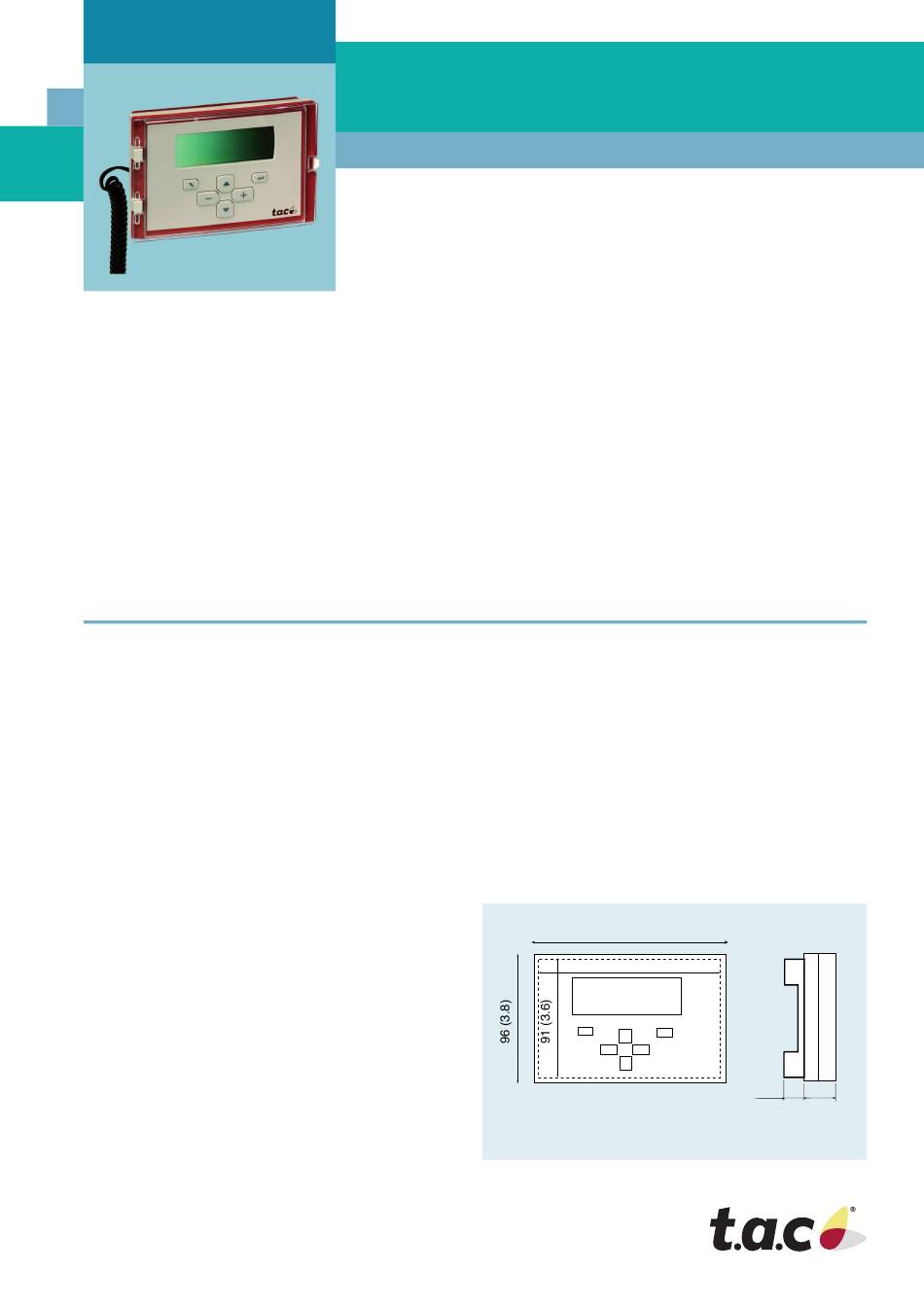

Figure 1
144 (5.7)
135.5 (5.3)
14
(0.6)
TAC Vista
20
(0.8)
