π

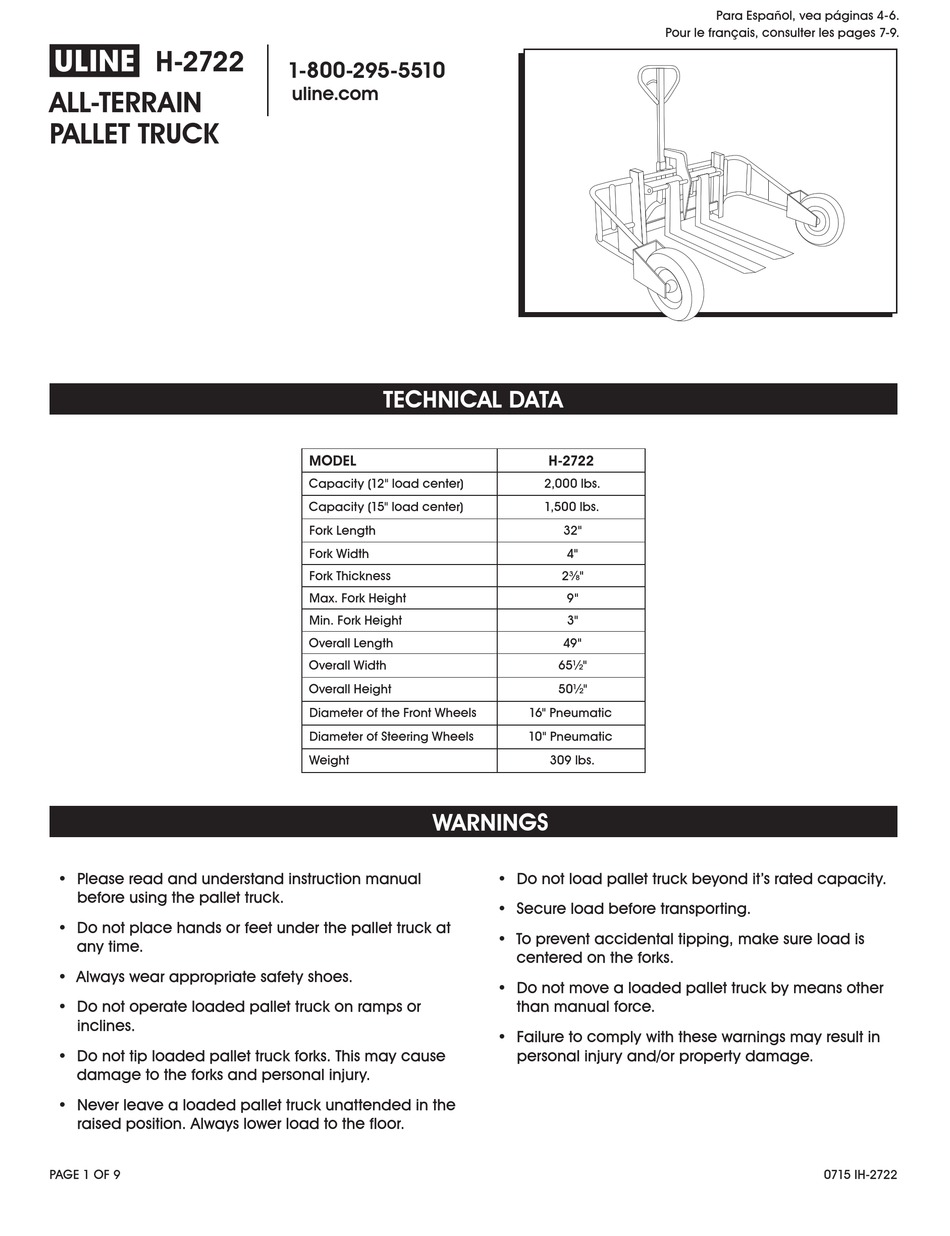

H-2722
ALL-TERRAIN
PALLET TRUCK
• Please read and understand instruction manual
before using the pallet truck.
• Do not place hands or feet under the pallet truck at
any time.
• Always wear appropriate safety shoes.
• Do not operate loaded pallet truck on ramps or
inclines.
• Do not tip loaded pallet truck forks. This may cause
damage to the forks and personal injury.
• Never leave a loaded pallet truck unattended in the
raised position. Always lower load to the floor.
PAGE 1 OF 9
1-800-295-5510
uline.com
TECHNICAL DATA
MODEL
Capacity (12" load center)
Capacity (15" load center)
Fork Length
Fork Width
Fork Thickness
Max. Fork Height
Min. Fork Height
Overall Length
Overall Width
Overall Height
Diameter of the Front Wheels
Diameter of Steering Wheels
Weight
WARNINGS
Pour le français, consulter les pages 7-9.
H-2722
2,000 lbs.
1,500 lbs.
32"
4"
2⁄"
9"
3"
49"
65½"
50½"
16" Pneumatic
10" Pneumatic
309 lbs.
• Do not load pallet truck beyond it's rated capacity.
• Secure load before transporting.
• To prevent accidental tipping, make sure load is
centered on the forks.
• Do not move a loaded pallet truck by means other
than manual force.
• Failure to comply with these warnings may result in
personal injury and/or property damage.
Para Español, vea páginas 4-6.
0715 IH-2722

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-2722 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for U-Line H-2722

Summary of Contents for U-Line H-2722

  • Page 1 Para Español, vea páginas 4-6. Pour le français, consulter les pages 7-9. π H-2722 1-800-295-5510 uline.com ALL-TERRAIN PALLET TRUCK TECHNICAL DATA MODEL H-2722 Capacity (12" load center) 2,000 lbs. Capacity (15" load center) 1,500 lbs. Fork Length 32" Fork Width 4"...

  • Page 2: Operation

    OPERATION To raise the forks, place handle in the UP position Down (bottom part of the handle slot). (See Figure 1) To lower forks, pull lever handle to DOWN position (upper part of the slot). (See Figure 1) Neutral To freely move the handle, set the lever in NEUTRAL position (center notch of slot).

  • Page 3: Troubleshooting

    TROUBLESHOOTING OPERATING ISSUE CAUSES RECOMMENDATIONS Hydraulic unit does not lift. Oil low in tank. Make sure there is no oil leakage from valve and add oil. Steel ball not seated in hydraulic unit. Clean release valve (As noted in Maintenance). Worn O-ring in ram cylinder.

  • Page 4: Información Técnica

    π H-2722 01-800-295-5510 uline.mx PATÍN HIDRÁULICO TODO TERRENO INFORMACIÓN TÉCNICA MODELO H-2722 Capacidad (centro de carga de 12") 907 kg (2,000 lbs.) Capacidad (centro de carga de 15") 680 kg (1,500 lbs.) Longitud de Horquilla 81.3 cm (32") Ancho de la Horquilla 10.2 cm (4")

  • Page 5: Mantenimiento

    FUNCIONAMIENTO Para subir las horquillas, coloque el asa en la posición UP Bajar (SUBIR) (parte inferior de la ranura del asa). (Vea Diagrama 1) Para bajar las horquillas, estire del asa de la palanca y colóquela en la posición DOWN (BAJAR) (parte superior de la ranura).

  • Page 6: Solución De Problemas

    SOLUCIÓN DE PROBLEMAS PROBLEMA DE FUNCIONAMIENTO CAUSAS RECOMENDACIONES La unidad hidráulica no se eleva. Bajo nivel de aceite en el tanque. Asegúrese de que no haya ninguna fuga de aceite que proceda de la válvula y agregue aceite. Limpie la válvula de liberación. La bola de acero no está...

  • Page 7: Données Techniques

    π H-2722 1-800-295-5510 uline.ca TRANSPALETTE TOUT-TERRAIN DONNÉES TECHNIQUES MODÈLE H-2722 Capacité [centre de la charge de 907,2 kg (2 000 lb) 30,5 cm (12 po)] Capacité [centre de la charge de 680,4 kg (1 500 lb) 38,1 cm (15 po)] Longueur de la fourche 81,3 cm (32 po)

  • Page 8: Entretien

    FONCTIONNEMENT Pour soulever la fourche, placez la poignée en position Descente MONTÉE (partie inférieure de la fente de la poignée). (Voir Figure 1) Pour abaisser la fourche, tirez la poignée en position Neutre DESCENTE (partie supérieure de la fente). (Voir Figure 1) Montée Pour déplacer librement la poignée, placez le levier en position NEUTRE (encoche centrale de la fente).

  • Page 9: Dépannage

    DÉPANNAGE PROBLÈME CAUSES RECOMMANDATIONS L'unité hydraulique ne se soulève pas. Faible niveau d'huile dans le réservoir. Assurez-vous qu'il n’y a pas de fuite d'huile en provenance de la valve et ajoutez de l'huile. Nettoyez la valve de vidange (de La bille d'acier n’est pas appuyée dans l'unité la façon indiquée dans la section hydraulique.
