Control mode: DMX - 512 signal control, the mode, voice control mode,
The control channel: 7/15 CH 512 channels
Red laser light source: R: 500 mw 638 nm
Scanning system, stepping motor
Scanning Angle: plus or minus 25 degrees
Cooling system: fan forced cooling system
Inside the box size: 117 x18x27 cm
Carton size: 119 x39x29 cm (2 big packaging)
Net weight: 9. 5 KG,
Gross weight: 12 KG
Function Instruction:
6 channel address code, (001-512),
A001---A512
B, C key to add and subtract address code values
14 channel address code, (001-512),
D001---A512
B, C key to add and subtract address code values
Reset
DEEO
B, C key to modify pulse variable speed
FFOO
B, C key to modify running speed
BEB1
YES, NO Machine restoration
Pulse variable, (01-99)
Running change, (01-99)
Acoustic __1 running change
User Manual

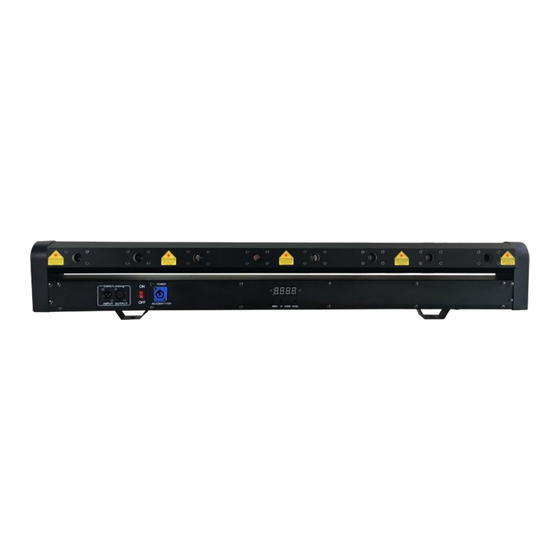

Single Red 8 eye moving head beam laser
Please read the instructions carefully before use
Advertisement
Related Manuals for IMRELAX Single Red 8 eye
Summary of Contents for IMRELAX Single Red 8 eye
-
Page 1: User Manual
The control channel: 7/15 CH 512 channels Red laser light source: R: 500 mw 638 nm Scanning system, stepping motor Single Red 8 eye moving head beam laser Scanning Angle: plus or minus 25 degrees Cooling system: fan forced cooling system... - Page 2 7 Channel mode: Effect 0-55: DMX channel control; Function Introduction 56-80: pulse variable (motor control); 0---255 0°-180° 81-105: running (motor control); 106-130: voice control (motor controlled) motor The motor speed Dimmer 0---255 0-100% 131-155: voice control (motor controlled) Strobe 0---9 No effect 10-255 Strobe speed from slow to fast 156-180: pulse...
