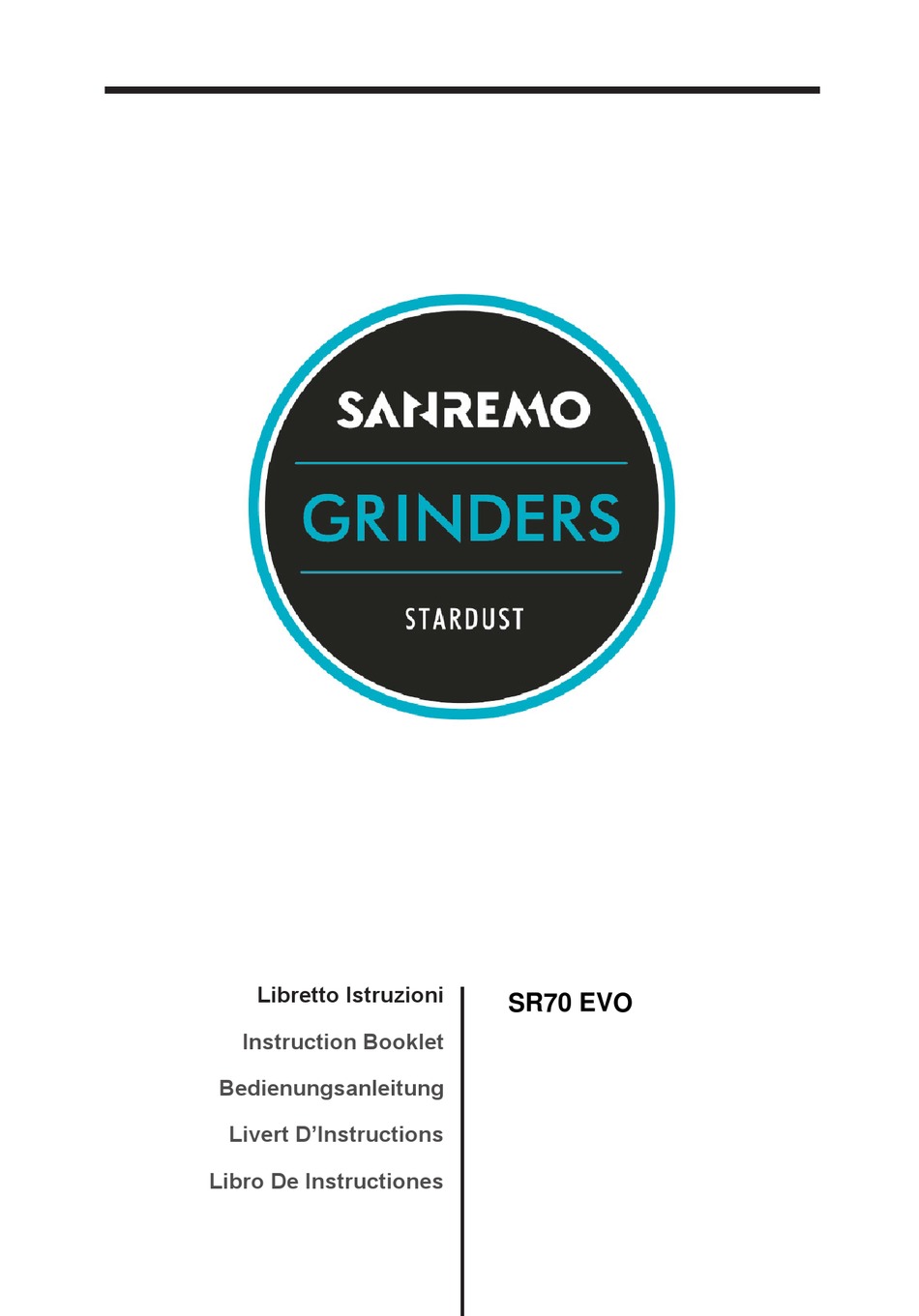

- Page 1 Libretto Istruzioni SR70 EVO SR70 EVO SR64OD EVO Instruction Booklet Bedienungsanleitung Livert D’Instructions Libro De Instructiones...
- Page 3 Congratulazioni per aver acquistato un prodotto SANREMO: ogni nostro articolo è frutto di un’ attenta ricerca, in costante collaborazione con gli amanti del caffè di tutto il mondo. Ecco perché è per noi estremamente importante la tua opinione: grazie alla tua esperienza e collaborazione sapremo migliorare ogni giorno di più, per otte- nere sempre il meglio in ogni creazione SANREMO.
- Page 5 ENGLISH SR64OD EVO WARNINGS sinks and jets of water. • Read thoroughly and stick closely to • Never leave the grinder-doser the instructions and warnings. unguarded when switched on. • Before use, ensure that the mains • This grinder-doser is not to be used voltage is the same as the voltage by people with limited mental or indicated on the data plate of the physical abilities or by children less machine.
- Page 6 ENGLISH SR64OD EVO • Take care, as the grinding blades may continue rotating for a short while even after the grinder-doser is switched off. • Do not let liquids of any kind come into contact with the internal or external parts of the grinder-doser. • Never put ground coffee in the hopper intended only for coffee beans. • Do not tamper with the grinder-doser. • Do not touch the grinder-doser with damp or wet hands or feet. • The hopper must be fastened to the grinder- dosers grinding system by means of the relevant screw which must be inserted in the threaded hole located on the upper grinding blade holder and in the hole on the neck of the hopper. • Make sure that the coffee outlet is free from any obstruction otherwise the appliance will stop. • The manufacturer cannot be held responsible for bodily injury or damage to property if these regulations are not complied with. • Operating temperature: -10°C +60°C Storage temperature: -40°C +70°C • USA & CANADA - duty cycle: 25s “ON” | 60s “OFF” If the grinder-doser is to remain inactive for a long period, clean it carefully, wash and dry the hopper and leave it open.
- Page 7 ENGLISH SR64OD EVO INTRODUCTION Making coffee is an art. Precise rules need to be followed in order to succeed. The formula for a perfect cup of expresso coffee involves various steps and the coffee machine plays a very important role. For a successful result and unquestionable quality, it is necessary to correctly combine three factors: • A high-quality blend. • The appropriate use of available appliances. • The skill and professionalism of the person who makes it. Contrary to belief, to enjoy a good cup of coffee, it is not enough to choose the right blend. The operator’s experience and skills in following the right procedures for making a coffee and the use of suitable appliances strongly influence the creation of a small masterpiece. Therefore, professionals place crucial importance on the espresso machine and grinder-doser. Knowing how to use these appliances well, maintaining them in perfect working order and using them at their best, is a skill belonging to professional coffee makers. The quality of a good espresso coffee comes from a series of operations, including grinding which plays an important role. Therefore, for the operator, the grinder-doser is one of the fundamental appliances, whose structure must meet certain characteristics of sturdiness, resistance and functionality.
-
Page 8: General Description
ENGLISH SR64OD EVO PACKAGING On opening the packaging, check carefully to make sure the grinder-doser is intact and that there are no signs of damage. If in any doubt, do not use the appliance and contact personnel with the appropriate professional skills. Packaging materials must be kept out of the reach of children, as they are a potential source of danger. Keep the packaging until the warranty has expired. DISPOSAL Do not, dispose of the packaging materials in any way other than according to the laws in force. If you decide not to use the grinder-doser anymore, remember to unplug it so it cannot be used, and then cut the cable at the point where it comes out of the grinder-doser. Contact specialized firms for information on the disposal of the grinder-doser components. GENERAL DESCRIPTION... -
Page 9: Operating The Grinder-Doser
ENGLISH SR64OD EVO in conformity with current safety regulations. If in any doubt, have This grinder-doser has been designed the system thoroughly checked by solely for grinding coffee beans. Any personnel with the appropriate other use must be understood as professional skills. - Page 10 ENGLISH SR64OD EVO On the right, it shows the percentage humidity, the time, the date and the grinding mode selected in green. Switching on and off On: set the switch to 1. Off: set the switch to 0. LED indicator light Off: grinder off. On: grinder on. USER MENU Flashing: the grinder is grinding (the To access the user menu, keep the button motor is working). pressed until an intermittent Selection buttons sound starts (about 5 secs.). Three yellow The control panel has three blue LED...
-
Page 11: Settings Menu
ENGLISH SR64OD EVO COFFEE DOSE ADJUSTMENT • Temperature Centigrade or Fahrenheit. Access the settings menu, select Grinding Time. Then select the seconds for single • Brightness grinding option and confirm. Adjust the Percentage. seconds for the double grinding option • Information and confirm again. Firmware version and Serial Number. MILLS REPLACEMENT SETTINGS MENU When the grinding mills need to be replaced, a warning appears on the To access the user menu, keep the display. The state of wear can be button pressed until an intermittent monitored by accessing the settings... - Page 12 ENGLISH SR64OD EVO For a single dose, press the start micro •For counting purposes, continuous switch once with the filter holder cup. grinding corresponds to a single For a double dose, press twice quickly. dose. In this way, the continuous grinding ADJUSTING GRINDING (button ) and the buttons In order to achieve finer or coarser are deactivated.
-
Page 13: Safety Devices
ENGLISH SR64OD EVO SAFETY DEVICES reconnecting the grinder-doser to the power supply, replace the safety device. Thermal overload protection The grinder-doser motor is protected NOISE LEVEL against overheating resulting from EEC Countries - The maximum noise over currents by a thermal overload emission of our coffee grinders and protection which, when tripped, cuts grinders/dosers measured in UNI off the power supply to the motor. If... -
Page 14: For Users
ENGLISH SR64OD EVO The state of the grinding blades must the grinding blades, the threads and the be checked periodically. Keeping the entire grinding system thoroughly using grinding blades in an excellent state a clean brush and cloth. Having refitted assures high-quality grinding, resulting the upper grinding blade holder in the in greater productivity and limited relevant slot, screw the adjustment overheating. - Page 15 ENGLISH SR64OD EVO friendly manner, limiting its effect on the environment and public health. For more detailed information regarding available recycling centres, con- tact your local waste department or the store where the unit was purchased. Manufacturers and importers comply with their responsibility for the recycling, treatment or disposal both directly or by taking part in a collective system.
- Page 16 ENGLISH SR64OD EVO...
- Page 17 ENGLISH SR64OD EVO POS. CODICE DESCRIPTION 10720004 COMPLETE BELL SR64A/M/OD - SR83A/OD 10720002 BELL COVER SR64A/M/OD - SR83A/OD 10720001 SIMPLE BELL SR64A/M/OD - SR83A/OD 10720003 BELL TAB SR64A/M/OD - SR83A/OD 10790300 FAN DASHBOARD SR64OD EVO V5 COMPLETE 10722102 FAN DASHBOARD V0 UL 10760087 FAN 60X60X25 V5 10760002 0-1 POWER SWITCH 10722060 BLACK BREMAS KNOB 10790002 FIXED GRINDER SUPPORT D64 SR64A/M/OD - SR83A 10790003 REGOLATION CHROM RING NUT SR64A/M/OD 10740011 AISI304 M5 7X50 RING NUT LEVER 10710002 M8X15 SX INOX ROTATING FIXING SCREW 10711015 SPRING 10720015 12,42X1,78 VITON 70 2050 SEAL O-RING 10790127 BLOCK RING NUT PIN WHIT LEVER 10770009 COMPRESSION SPRING FOR BLOCK RING NUT...
- Page 18 ENGLISH SR64OD EVO POS. CODICE DESCRIPTION 10750007 ROTOR H 70 R66.20.01 3W SI2 SR64A/M/OD 10790029 MOTOR CAP SR64A/M/OD 10790128 COMPLETE ELECTRONIC LED CARD 220V 10790130 COMPLETE ELECTRONIC LED CARD 110V 10760021 ELECTRONIC WIRING 220V SR64OD 10760125 ELECTRONIC WIRING 110V SR64OD 10720030 COMPLETE BLOCK CABLE (SPARE PARTS) 10720035 D19 H13 FOOT 10760004 SHUKO PLUG NO WIRING 220V 2MT SHEATH 203B 10760033 AUSTRALIAN PLUG 203C 10760046 BRAZIL PLUG 203M 10760030 ENGLISH PLUG 203N 10760031 UL PLUG 10780037 BODY BOTTOM SR64A/M/OD - SR63A-SR71C V2 10730101 BOTTOM HOLE CLOSER SHEET...
- Page 19 ENGLISH SR64OD EVO POS. CODICE DESCRIPTION 10790566 CLEANING TUBE COMPLETE COVER 10760559 CLEANING TUBE LED ELECTRONIC GRINDER DOSER FORK SR64OD / EVO WITH 10790506 TREATMENT 10720091 ELECTRONIC DASHBOARD ADHESIVE TAP 10720166 BODY HOLES TAP 10720154 ABS PRESSER 50/53 D 272A 10720029 ABS PRESSER 50/57 D 278A 10790577 COMPLETE WHITE ELECTRONIC DASHBOARD SR64OD V2 COMPLETE PEARL WHITE ELECTRONIC DASHBOARD 278B 10790578 SR64OD V2 278C 10790579 COMPLETE BLACK ELECTRONIC DASHBOARD SR64OD V2 COMPLETE MATT BLACK ELECTRONIC DASHBOARD 278D 10790580 SR64OD V2 278F 10790581 COMPLETE RED ELECTRONIC DASHBOARD SR64OD V2 278G 10790582 COMPLETE GRAY ELECTRONIC DASHBOARD SR64OD V2...
