Product Description

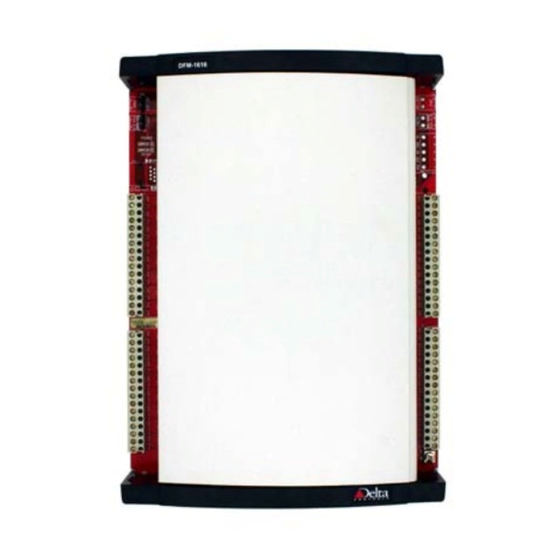

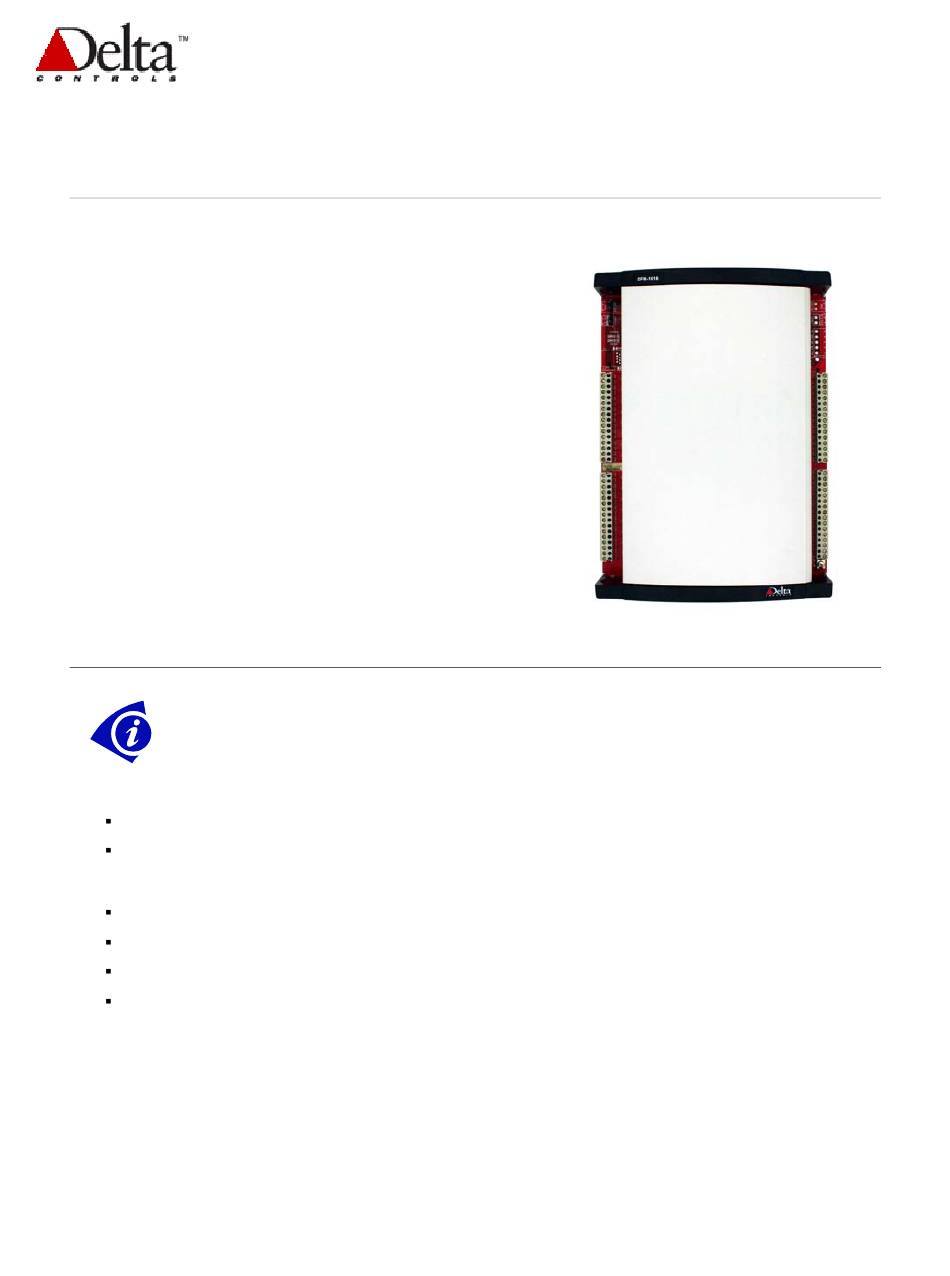

The DFM-1616 Field Module provides additional I/O (16
universal inputs and 16 universal outputs) to Delta's DSC-
1616E or ASM-24E BACnet Controllers. It communicates on
Delta's LINKnet network.
The DSC-1616E when combined with two DFM-1616 Field
Modules forms a high-density I/O Controller intended to fit a
range of Central Plant-type applications requiring up to 48
Inputs and 48 Outputs. When the DFM-1616 is combined with
the ASM-24E it forms a controller suited for Elevator Control
applications.
Important Information
The DFM-1616 works only with the DSC-1616E and ASM-24E (firmware V3.33 R1 or later).
Package Contents
Product: DFM-1616 (Rev. 2.0a)
DFM-1616 (Rev.2.0a) Installation Guide
Related Documents
Delta Controls Wiring Guidelines
ORCAview Operator Guide
ORCAview Technical Reference Manual
Release Notes for related Firmware
I
NSTALLATION
G
UIDE
DFM-1616 Rev 2.0a
Document Edition 2.4
Document Edition 2.4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DFM-1616 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Delta Controls DFM-1616

  • Page 1 Inputs and 48 Outputs. When the DFM-1616 is combined with the ASM-24E it forms a controller suited for Elevator Control applications. Important Information The DFM-1616 works only with the DSC-1616E and ASM-24E (firmware V3.33 R1 or later). Package Contents Product: DFM-1616 (Rev. 2.0a) DFM-1616 (Rev.2.0a) Installation Guide...
  • Page 2 (Class II transformer) per EN61558. The transformer must be rated for 100% duty cycle. Mounting The DFM-1616 includes a plastic enclosure that can be quickly mounted with two screws (not provided). This controller should be mounted in an appropriate location within packaged equipment or another enclosure that meets code requirements.

  • Page 3: Board Layout

    Document Edition 2.4 Board Layout Page 3 of 10...

  • Page 4: Controller Configuration

    Delta Controls Controller Configuration Controller Addressing The DIP Switch is a binary switch. Each individual DIP switch represents a unique value, which forms the controller address when added together. To set the address, simply move the switches that add up to the controllers desired address to the ON position.

  • Page 5: Wiring General

    Document Edition 2.4 Wiring General All wiring must conform to NEC and local codes and regulations. Use earth ground isolating step-down Class 2 transformers. Do not use autotransformers. Determine supply transformer rating by summing total VA of product and output loads. Risk of Electric Shock or Fire More than one disconnect switch may be required to de-energize the equipment before servicing.

  • Page 6: Network Communication

    This functionality allows critical equipment (boiler/chiller pumps) to remain operational so that undesired results will not occur. For example, if a boiler is being controlled through the DFM-1616 set the default value for the boiler pumps in the output object to ON. If communication is lost, the boiler pumps will continue to run.

  • Page 7: Input Configuration

    Document Edition 2.4 Input Configuration The input must be configured to accept the signal used by the input device. Place the jumper for each input in the correct location on the Input Type Selector Block. The diagram to the right shows the factory default selection of 10 KΩ.

  • Page 8: Product Specifications

    Delta Controls Product Specifications Power Requirements 24 VAC 50/60Hz Class 2 Power Consumption 30 VA Ambient Ratings 32° to 131°F (0° to 55°C), 10 to 90% RH (non condensing) Communication Ports NET1 LINKnet Communication: 76800 bps Maximum of 12 LINKnet controllers including up to two DFM...

  • Page 9: Ce Declaration Of Conformity

    Canada V3S 1C7 declares that the product (s): Product Name: 16 x 16 Controllers Model Numbers: DSC-1616, DFM-1616 Product Options: conforms to the following Product Specifications: EN 50081-1:1992 Generic Emission Standard Part 1: Residential EN 55022:1998 Radiated and Conducted Emissions...

  • Page 10: Fcc Compliance Information

    Delta Controls FCC Compliance Information This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
