Summary of Contents for Movex FB Series

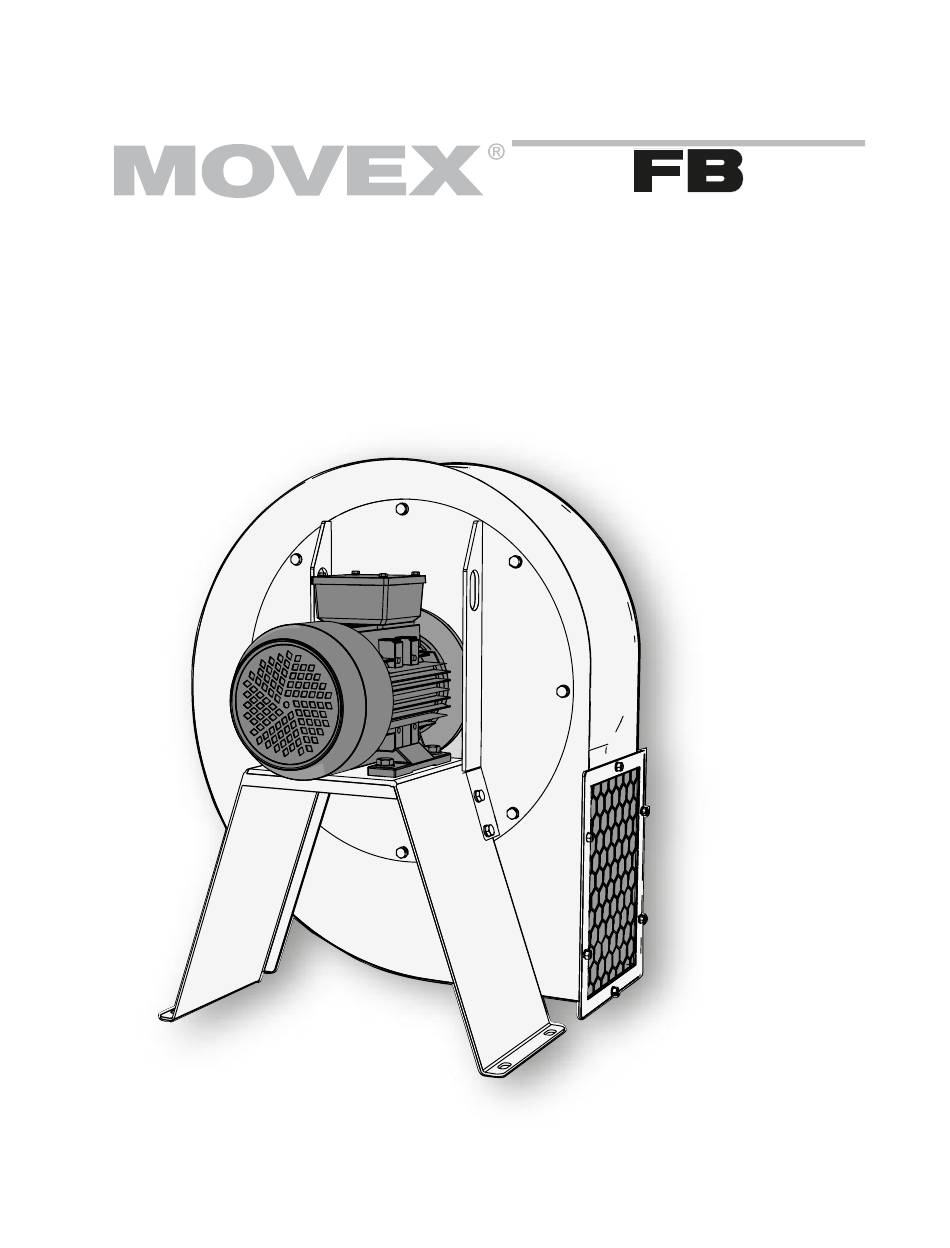

- Page 1 INSTALLATION INSTRUCTIONS F18W09_MFB_MUS_EN...
-
Page 2: Table Of Contents
Contents Page User instructions General Fan installation Maintenance Electrical installation Troubleshooting Technical description General Classification Technical specification Exploded view Accessories... -
Page 3: User Instructions

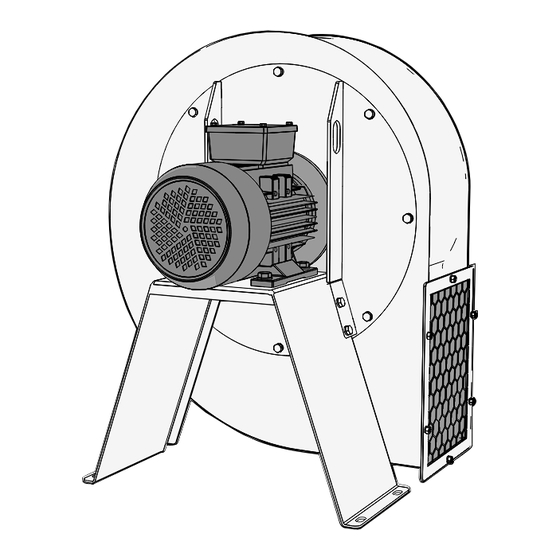

User instructions General The Movex FB fan is a radial fan for the evacuation of gases, smoke and low weight particles. The fan series conforms to the protection and safety regulations in the EU's Machinery Directive. The fans boast high levels of quality and operational reliability. -
Page 4: Maintenance
Maintenance Movex fans have been designed for continuous use for an extended time with a high level of reliability. Like all machines, regular servicing and maintenance are required to achieve optimum function. Movex recommends the following maintenance schedule: Component Interval 6 months Motor Check function. - Page 5 Outdoor wall installation A flexible installation that optimises An installation that is used when the pressure drop on the inlet side. low noise levels are prioritised. Makes it possible to choose outlet The disadvantage of this direction. In the event of arrangement is that the fan is condensation problems, installation located high up if the extract air...
-
Page 6: Electrical Installation
Electrical installation The equipment is supplied with high voltage and Three phase fans are supplied with the motor must always be fitted with a safety switch for carrying connected for 460V (Y-connection). out servicing work in connection with the fan. The choice of cable and cable cross-section must comply 9-Terminal motor for FB 076 and 106: with the national requirements that apply to fixed... -
Page 7: Troubleshooting
Troubleshooting Check that no ice has formed Always go through the troubleshooting schedule in the fan housing. before contacting Movex. This schedule contains information that makes it easy to identify faults that are simple to rectify. Locked impellar Check that the bearing in Set external safety switch in the off... -
Page 8: Technical Description
Technical description General The Movex FB fan series is delivered in a robust Enclosure class: IP 55 box or on a wooden pallet with the required Usage type: packaging material. A rating plate is affixed to the motor. Conformity: The working temperature through the fan is Movex FB fans conform to demands in accordance max. -
Page 9: Exploded View
4 a,b 6 a,b,c 1 a,b,c 2 a,b,c 3 a,b 7 a,b,c 1. Bracket 1 a. Bolt 4 a. Bolt 2. Motor 1 b. Washer 4 b. Washer 3. Motor plate 1 c. Nut 6 a. Bolt 4. Impeller 2 a. Bolt 6 b. -
Page 10: Accessories
Connection, FBD Technical information Intended to be used to prevent the spread of structu- re-borne noise. Supplied complete with hose clip. Material: PVC membrane reinforced with polyester Designation: mesh FBD 055 - Fits FB 037 and 055. Weight: ~0.22 - 0.44 lb FBD 110 - Fits FB 075 and 110. - Page 12 104 Commerce Drive, Northampton, PA 18067, USA | Phone 610 440-0478 | Fax 610 440-0480 | www.movexinc.com | info@movexinc.com...
