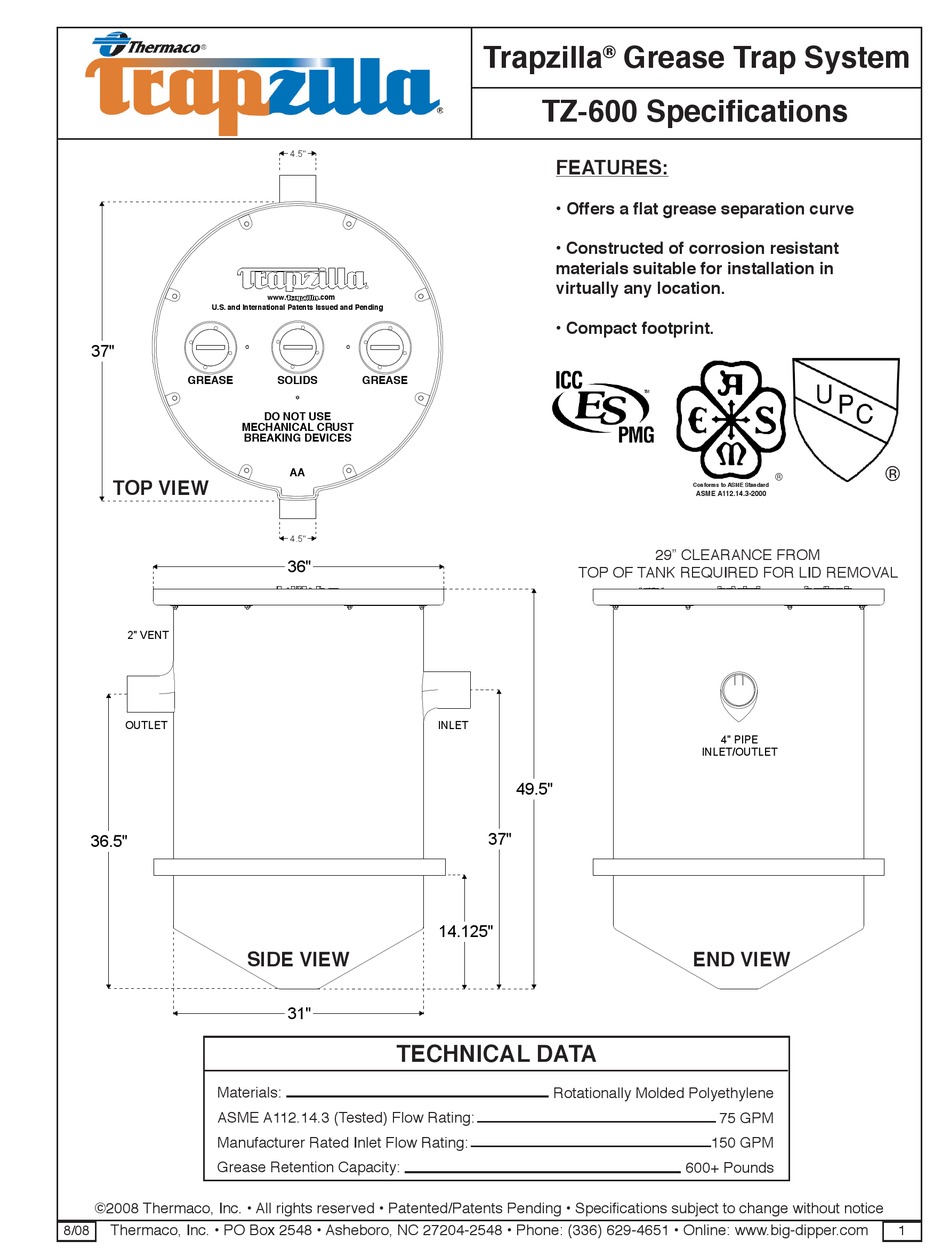

Thermaco Trapzilla TZ-600 Specifications

U.S. and International Patents Issued and Pending
37"
GREASE
MECHANICAL CRUST
BREAKING DEVICES
TOP VIEW
2" VENT
OUTLET
36.5"
Materials:
ASME A112.14.3 (Tested) Flow Rating:
Manufacturer Rated Inlet Flow Rating:
Grease Retention Capacity:
©2008 Thermaco, Inc. • All rights reserved • Patented/Patents Pending • Specifications subject to change without notice
Thermaco, Inc. • PO Box 2548 • Asheboro, NC 27204-2548 • Phone: (336) 629-4651 • Online: www.big-dipper.com
8/08
4.5"
www. .com
SOLIDS GREASE
DO NOT USE
AA
4.5"
36"
SIDE VIEW
31"

TECHNICAL DATA

Trapzilla
®
TZ-600 Specifications
FEATURES:
• Offers a flat grease separation curve
• Constructed of corrosion resistant
materials suitable for installation in
virtually any location.
• Compact footprint.
TOP OF TANK REQUIRED FOR LID REMOVAL
INLET
49.5"
37"
14.125"
Rotationally Molded Polyethylene
Grease Trap System
®
Conforms to ASME Standard
ASME A112.14.3-2000
29" CLEARANCE FROM
4" PIPE�
INLET/OUTLET
END VIEW
75 GPM
150 GPM
600+ Pounds
®
1
