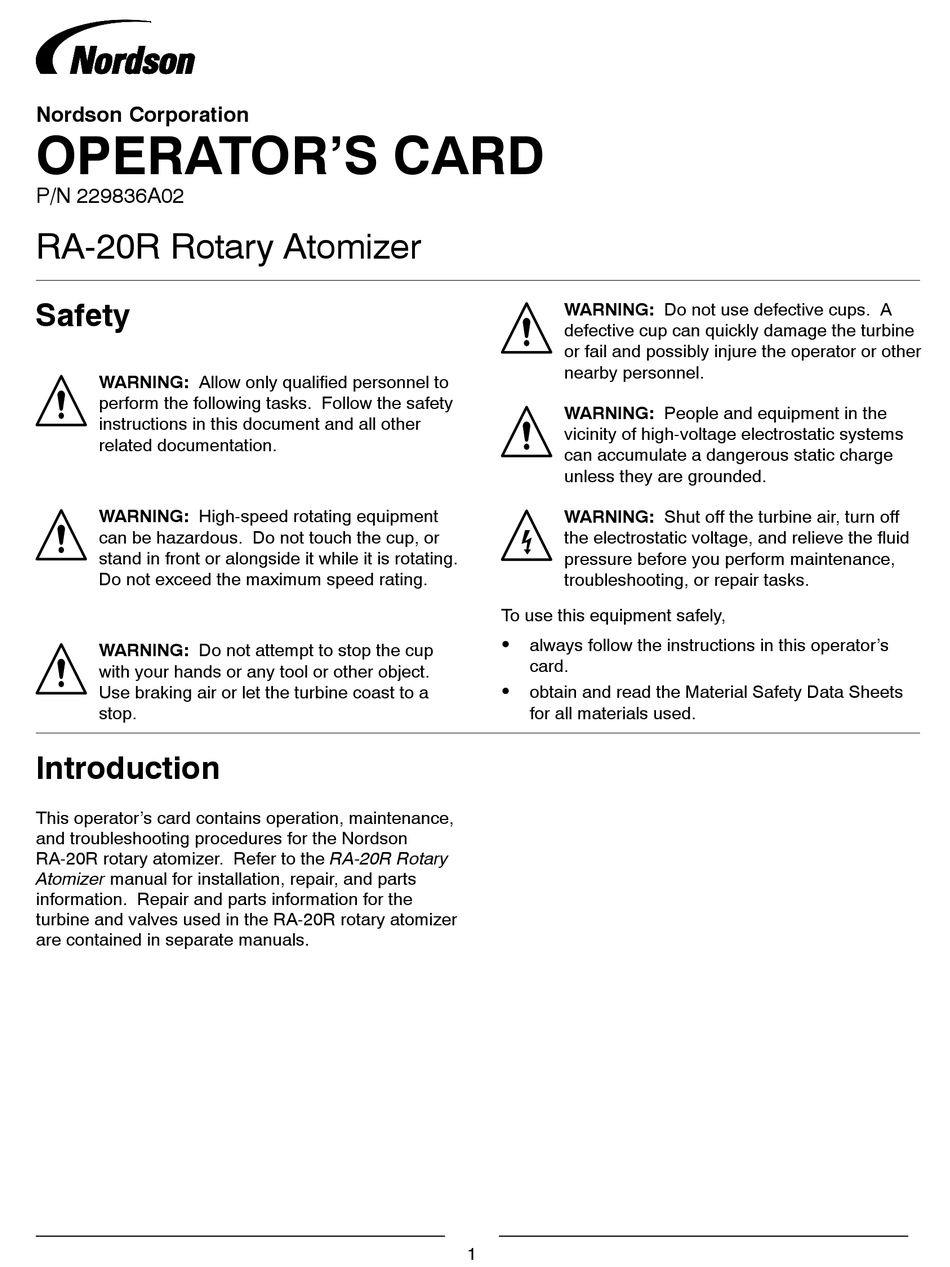

Nordson RA-20R Operator Card

Nordson Corporation
OPERATOR'S CARD
P/N 229836A02
RA-20R Rotary Atomizer
Safety
WARNING: Allow only qualified personnel to
perform the following tasks. Follow the safety
instructions in this document and all other
related documentation.
WARNING: High-speed rotating equipment
can be hazardous. Do not touch the cup, or
stand in front or alongside it while it is rotating.
Do not exceed the maximum speed rating.
WARNING: Do not attempt to stop the cup
with your hands or any tool or other object.
Use braking air or let the turbine coast to a
stop.
Introduction
This operator's card contains operation, maintenance,
and troubleshooting procedures for the Nordson
RA-20R rotary atomizer. Refer to the RA-20R Rotary
Atomizer manual for installation, repair, and parts
information. Repair and parts information for the
turbine and valves used in the RA-20R rotary atomizer
are contained in separate manuals.
WARNING: Do not use defective cups. A
defective cup can quickly damage the turbine
or fail and possibly injure the operator or other
nearby personnel.
WARNING: People and equipment in the
vicinity of high-voltage electrostatic systems
can accumulate a dangerous static charge
unless they are grounded.
WARNING: Shut off the turbine air, turn off
the electrostatic voltage, and relieve the fluid
pressure before you perform maintenance,
troubleshooting, or repair tasks.
To use this equipment safely,
S
always follow the instructions in this operator's
card.
S
obtain and read the Material Safety Data Sheets
for all materials used.
1
