Summary of Contents for Dwyer Instruments WTDL-RX

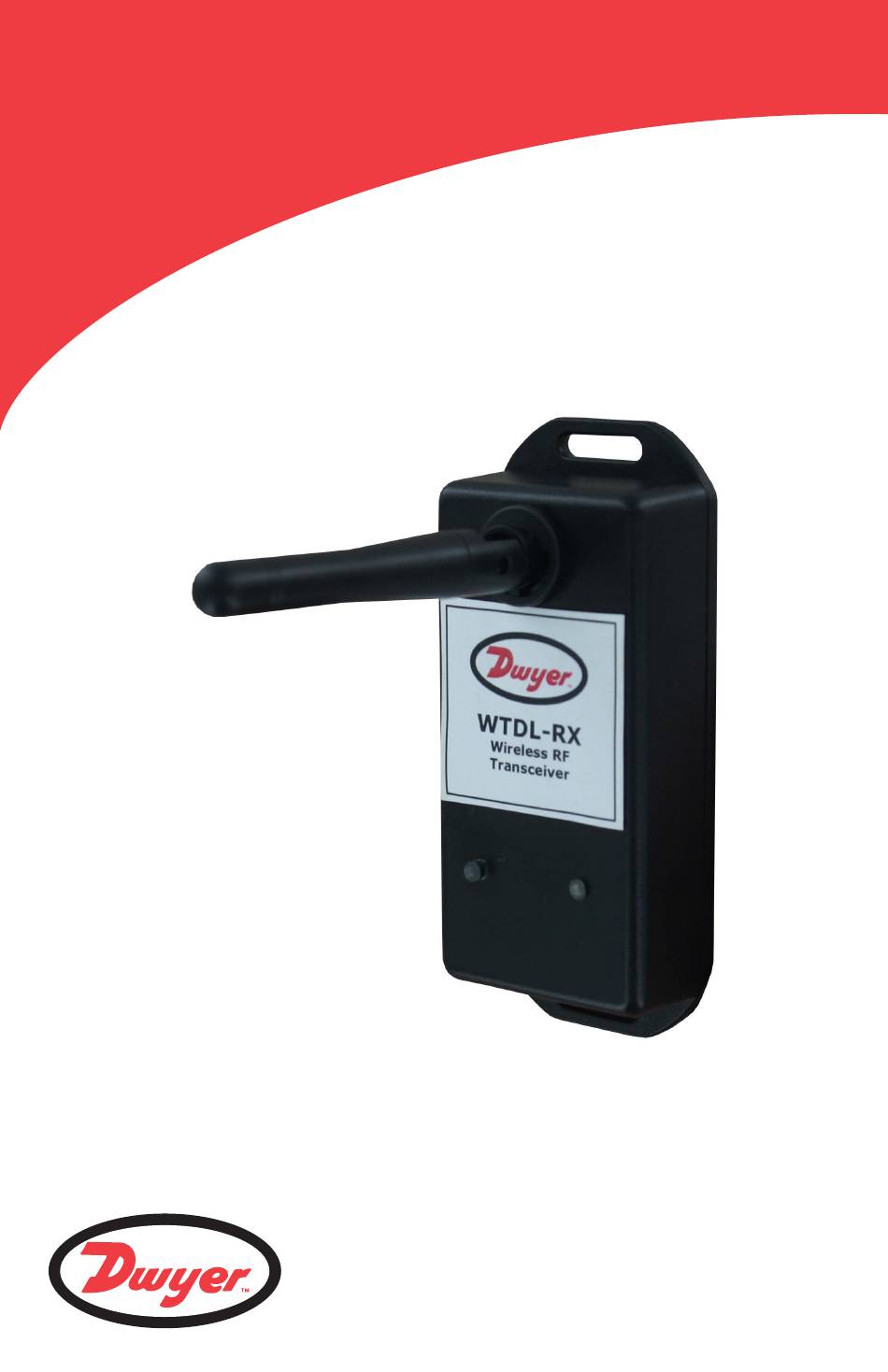

- Page 1 Product User Guide WTDL-RX Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 TestEquipmentDepot.com WTDL-RX Wireless Transceiver...
- Page 2 Product User Guide...
-
Page 3: Product Notes
2000 feet maximum typical outdoors/line of sight, 500 feet maximum typical indoors/urban. The WTDL-RX can connect to a maximum of 64 data loggers. The WTDL-RX transmits on a frequency of 2.405GHz - 2.475GHz. Operating Environment The WTDL-RX is rated for use in an environment with temperatures from -20°C... - Page 4 ‘1’. Deploying and Activating Devices Step 1: Plug the WTDL-RX into the USB port on the base station computer. (Additional WTDL-RXs can be used as repeaters to transmit over greater distances) Step 2: If using multiple WTDL-RXs plug each one into a wall outlet in the desired locations.
- Page 5 Follow the instructions below to configure the channel settings for Dwyer WTDL Data Loggers. WTDL-RX: To program the channel on an WTDL-RX, first unplug the WTDL-RX. Use a Phillips head screwdriver to unscrew the enclosure. The dip switches are located on the front of the PCB circuit board. Change the dip switches to match the desired channel settings by referring to the diagram above.
-
Page 6: Mounting Instructions
Product User Guide Mounting Instructions For best wireless performance, both the WTDL-RX and the Dwyer WTDL Data Loggers should be mounted in the same orientation. This usually means that the external antenna should be pointing straight up. The antenna can pivot to... -
Page 7: Compliance Information
WTDL-RX Compliance Information • “This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.”... - Page 8 FCC ID: OA3MRF24J40MC, IC#: 7693A-24J40MC, CE, Approvals ETSI 300 328 (EU R&TTE) Transmission Distance 2,500’ max. outdoors - line of sight unobstructed (To other WTDL-RX’s) 700’ max. indoors - typical urban environment 2,000’ max. outdoors - line of sight unobstructed Transmission Distance (To data loggers) 500’...
