Summary of Contents for Overline Systems Digitear Beltpack

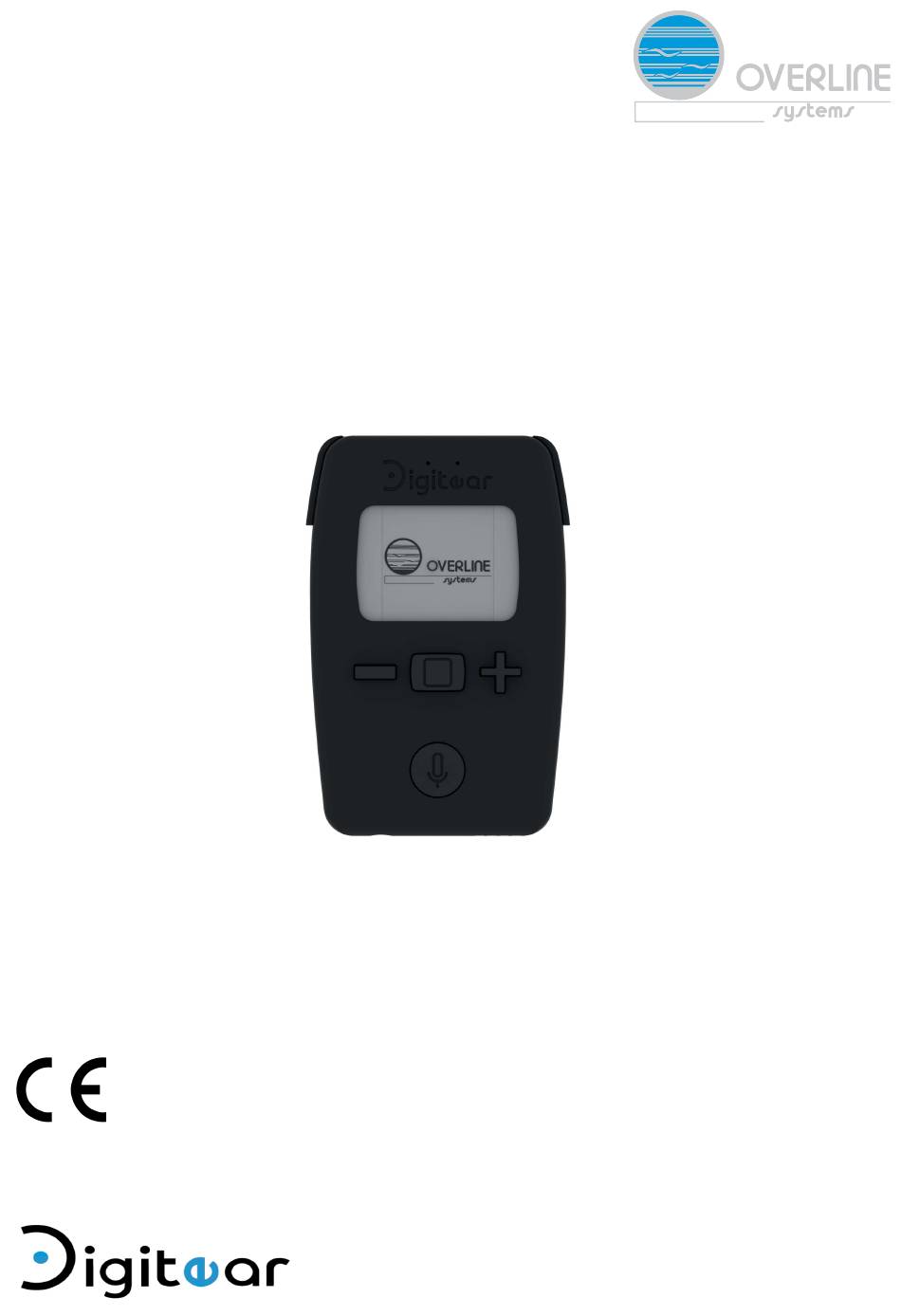

- Page 1 English Beltpack User Guide DE-DPS Beltpack FCC ID : 2ANZJDEDPS1 IC : 23304-DEDPS1 Version 25-03-2019...
-
Page 2: Table Of Contents
USER GUIDE Beltpack TABLE OF CONTENTS 1 - DESCRIPTION OF THE Beltpack 2 - HOW TO... 2 - 1 ...Turn on the Beltpack 2 - 2 ...Unlock the Beltpack 2 - 3 ...Modify the Volume 2 - 4 ...Connect to a Tx-Box 2 - 5 ...Connect to a Digitear network 2 - 6 ...Change the channel used by the Beltpack 2 - 7 ...Pair an In-Ear... -
Page 3: Description Of The Beltpack
USER GUIDE Beltpack 1 - DESCRIPTION OF THE Beltpack Microphone ‘-’ Key Allows you to navigate within the menus or to dimi- LCD screen nish / a level (volume, gain...). ‘+’ Key ‘HOME’ Key Allows you to navigate within the menus or 3.5mm - 4 points JACK to increase a level (volume, gain...) Battery charge connector... -
Page 4: How To
2 - HOW TO... 2 - 1 ...Turn ON the Beltpack To turn on the Beltpack, press and hold the central key until the Overline Systems logo appears. 2 - 2 ...Unlock the Beltpack Press and hold the central key to unlock the Beltpack and to gain access to the menus. -
Page 5: Modify The Volume
USER GUIDE Beltpack 2 - 3 ...Modify the volume On the main screen, use the + and - keys in order to change the volume. Once the right level is chosen, confi rm using the central key. 2 - 4 ...Connect to a Tx-Box To change or connect to a Tx-Box, press on the menu labeled «TxBoxes»... -
Page 6: Change The Channel Used By The Beltpack
USER GUIDE Beltpack 2 - 6 ...Change the channel used by the Beltpack From the Beltpack, you can change the channel on which the TX-Box was associated to by default during the initial connection. To do this you must access the «Channel» menu. Menu Menu Channel... -
Page 7: Delete The List Of Registered In-Ears
USER GUIDE Beltpack 2 - 9 ...Delete the list of registered In-Ear To delete the list, you must go into the «ClearPDL» menu. The list is then emptied out and you can connect two new In-Ears to the Beltpack. Menu Clear PDL 2 - 10 ...Change the battery A spare battery is provided with the Beltpack. -
Page 8: Advanced Functionning Of The Beltpack
USER GUIDE Beltpack 3 - ADVANCED FUNCTIONNING OF THE Beltpack 3 - 1 Beltpack start up Ch 2 Menu Press the central key The status bar may be diff erent following the connection state and status. Beltpack’s battery level. Strength of network signal. -
Page 9: Txboxes Menu
USER GUIDE Beltpack 3 - 2 Txboxes menu Review of the possible actions in the «TxBoxes» menu. Pair Menu No txbox No TX-Box is available on the Back network. Txboxes Pair Txboxes TX Box 1 Back Connected ! Pair Txboxes >... -
Page 10: Wlan Menu
USER GUIDE Beltpack 3 - 3 Wlan menu Review of the possible actions in the «Wlan» menu. Menu Wlan WLAN Scanning WiFi WLAN WiFi Digitear Back Timeout ! Connecting WiFi > Digitear Back if «Timeout» appears : - Check the network. -
Page 11: Lock Menu
USER GUIDE Beltpack 3 - 4 Lock menu Lock Menu Lock <On> <Off > Menu Menu Menu Locked Unlocked ! Two diff erents ways to unlock the Beltpack: - Off : Pressing and holding the central key will give direct access to the menus. - On: Pressing and holding the central key and validating with the + key will give access to the menus. -
Page 12: Update Menu
USER GUIDE Beltpack 3 - 5 Update menu This menu gives the user the possibility to update the Beltpack’s software. The Beltpack will see the update after it is extracted from the USB drive on the TX-Box. (See User manual of the TX-Box) At the end of the update, the Beltpack will restart. -
Page 13: Connect Ie Menu
USER GUIDE Beltpack 3 - 6 Connect IE menu Menu Connect IE Connect IE Connect IE Connecting Timeout ! Connect IE Connect IE Menu Disconnect Disconnected ! Connected ! If «Timeout» appears: - Check that the In-Ear you wish to pair is in «connectable» mode. - Empty the Beltpack’s storage in order to have space for the In-Ear. -
Page 14: Find Ie Menu
USER GUIDE Beltpack 3 - 7 Find IE menu This menu gives the user the possibility to search for the In-Ear that is connected to the Beltpack. The In-Ear’s light will fl ash for 10 seconds. Find IE Menu Find IE Not connected Find IE Blinking... -
Page 15: Mic Menu
USER GUIDE Beltpack 3 - 8 Mic menu This menu gives the user the possibility to search for the In-Ear that is connected to the Beltpack. The In- Ear’s light will fl ash for 10 seconds. Menu Gain Gain Device Back Device Device... -
Page 16: Channel Menu
USER GUIDE Beltpack 3 - 9 Channel menu Menu Channel Menu Menu Menu Changing < Ch 8 > < Ch 7 > 3 - 10 Low battery display When the Beltpack’s battery level becomes very low, it lets you know with this display. From then on you have less than 5 minutes of usage left. -
Page 17: Technical Features
USER GUIDE Beltpack 4 - TECHNICAL FEATURES Bluetooth Version Bluetooth 4.2 Class Frequency range 2 400 MHz - 2 483 MHz <10 meters Functionning distance WiFi Standard 802.11n Frequencies 5 GHz Version CE : 5180MHz, 5200MHz, 5220MHz, 5240MHz Version FCC/IC : 5745MHz, 5765MHz, 5785MHz, 5805 MHz, 5825MHz Battery Type... -
Page 18: Warranty
- A modifi cation or a reparation of a product not made by a third party approved by Overline Systems - Sinister (ex: fi re, fl ood, earthquake, lightenning) -
Page 19: Certifications
Tout changement ou modifi cation apporté à cet équipement non expressément approuvé par OVERLINE Systems peut annuler l’autorisation d’utiliser cet équipement. Any changes or modifi cations made to this equipment not expressly approved by OVERLINE Systems may void the authorization to operate this equipment. - Page 20 USER GUIDE Beltpack L’équipement est conforme aux exigences suivantes : This product complies to the following requirements : 47 CFR Part 15 RSS-247 Issue 2 RSS-Gen Issue 4 Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence.
