IKAM PT-Elite-UL Quick Start Manual

Universal large tablet teleprompter
Hide thumbs

Advertisement

Table of Contents

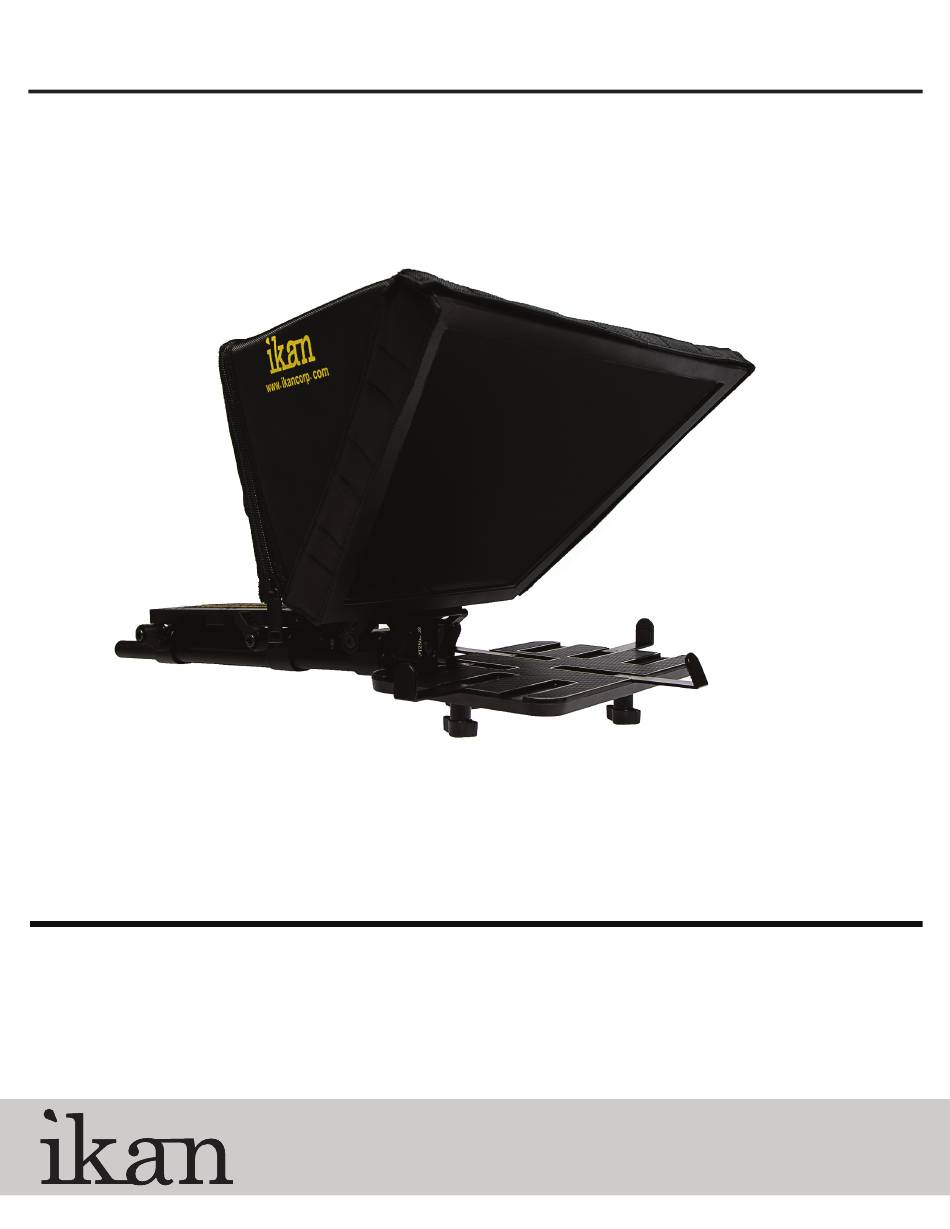

PT-Elite-UL
Universal Large Tablet Teleprompter QUICKSTART GUIDE
CONDITIONS OF WARRANTY SERVICE
• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period has expired.
Free Service will not be Provided in the Following Situations: (*Even if the product is still within the warranty period.)
• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
• Damage caused by natural disaster, abnormal voltage, and environmental factors etc.
www.ikancorp.com
Fits tablets between 6" x 9"
and 9" x 2"
11500 S. Sam Houston Pkwy West, Houston, TX 77031
© 2013 ikan Corporation. All right reserved
1.713.272.8822
support@ikancorp.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PT-Elite-UL and is the answer not in the manual?

Questions and answers

Summary of Contents for IKAM PT-Elite-UL

  • Page 1 PT-Elite-UL Universal Large Tablet Teleprompter QUICKSTART GUIDE Fits tablets between 6” x 9” and 9” x 2” CONDITIONS OF WARRANTY SERVICE • Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
  • Page 2 PT-Elite-UL Page 1 Universal Large Tablet Teleprompter QUICKSTART GUIDE What’s included  Hood  30/70 Prompter Glass  Glass Frame LBP-03  EV2 Adjustable Camcorder  iPad Teleprompter Mount  1 x Hex Key 3mm Baseplate (Large) 1 x Hex Key 2.5mm ...
  • Page 3 PT-Elite-UL Page 2 Universal Large Tablet Teleprompter QUICKSTART GUIDE 1. Fit Frame to iPad Mount. Secure with 2 x Socket Head Countersink Screw. Bottom view of tablet Mount and Frame. ** Align the 2 holes under the tablet Mount to the highlighted sets of holes on PT-AKM-2.
  • Page 4 PT-Elite-UL Page 3 Universal Large Tablet Teleprompter QUICKSTART GUIDE 2. Remove 4 x small frame screws and 2 x brackets. Insert prompter glass into frame. Secure prompter glass by replacing brackets and screws. Bracket Front view Vertical Adjustments to the frame...
  • Page 5 PT-Elite-UL Page 4 Universal Large Tablet Teleprompter QUICKSTART GUIDE ADJUSTMENT POINTS (adjust to fit your camera size) Numerous Adjustment Points allow for precise positioning modi cations. Loosen Thumb Screws to move forward/backwards along 12” Rods. Loosen Hex Screws to make vertical and horizontal adjustments.
  • Page 6 PT-Elite-UL Page 5 Universal Large Tablet Teleprompter QUICKSTART GUIDE 4. Attach the magnetic hood to glass frame. www.ikancorp.com 713-272-8822...
  • Page 7 PT-Elite-UL Page 6 Universal Large Tablet Teleprompter QUICKSTART GUIDE QUICK RELEASE MOUNTING OPTIONS The ikan Large Baseplate is compatible with both the Canon TA100 and ikan-WDGL Tripod Adapter Systems. Simply mount your Quick Release Plate to the bottom of the Large Baseplate component on the appropriate end, using four (4) Socket Head Countersink Screws.
