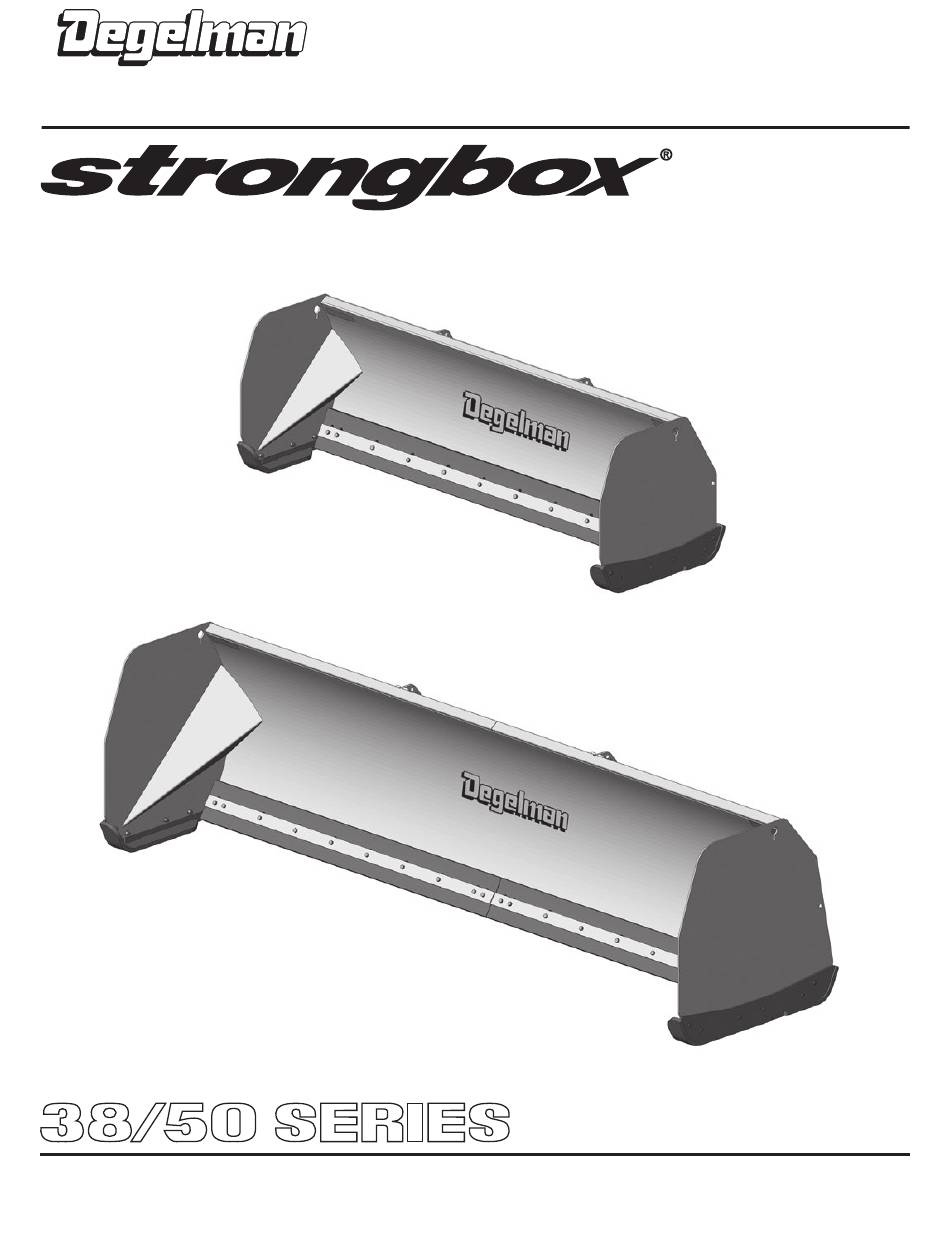

MOUNTING OPTIONS
& PARTS MANUAL
143393 v1.0
STRONGBOX
D E G E L M A N
I N D U S T R I E S
L T D.
®
B O X
8 3 0 - 2 7 2
I N D U S T R I A L
D R I V E ,
38 & 50 SERIES
R E G I N A ,
S K ,
C A N A D A ,
S 4 P
3 B 1
F A X 3 0 6 . 5 4 3 . 2 1 4 0
P H 3 0 6 . 5 4 3 . 4 4 4 7
1 . 8 0 0 . 6 6 7 . 3 5 4 5
D E G E L M A N . C O M
Advertisement
Summary of Contents for Degelman Strongbox 38 Series
- Page 1 MOUNTING OPTIONS & PARTS MANUAL 143393 v1.0 STRONGBOX D E G E L M A N I N D U S T R I E S L T D. ® B O X 8 3 0 - 2 7 2 I N D U S T R I A L D R I V E , 38 &...
-
Page 3: Table Of Contents
QUICK GUIDE INDEX Introduction Safety Maintenance Transport & Storage 38 Series Model Overview & Components Mounting Options Overview Mount Components 50 Series Model Overview & Components Mounting Options Overview Mount Components Warranty Record Serial Number: ............IMPORTANT: D E G E L M A N I N D U S T R I E S L T D. -
Page 5: Introduction
Introduction WELCOME DESCRIPTION Degelman is proud to welcome you to our rapidly The Strongbox box blade is a simple, strong and ® increasing family of high quality and dependable effective tool for high volume snow removal. product owners. This product was designed and built specifically for you, the customer. -
Page 6: Safety
YOU are responsible for the SAFE operation and SAFETY ALERT SYMBOL maintenance of your Degelman implement. YOU must ensure that you and anyone else who is going to operate, maintain, or work around the machine be familiar with the operating and maintenance procedures, and related SAFETY information contained in this manual. - Page 7 Safety GENERAL SAFETY 1. Read and understand the Operator's Manual Wear Protective Equipment and all safety signs before using. Review safety Note: Before working on machine, always turn related items with all operators annually. tractor off, set controls in neutral, and remove ignition key.
-
Page 8: Maintenance
Maintenance MAINTENANCE SAFETY HARDWARE TORQUE SETTINGS The tables below give correct torque values for various 1. Review the all safety items before working with, bolts and capscrews. Tighten all bolts to values in maintaining or operating the machine. charts unless otherwise noted. Check tightness of bolts 2. -
Page 9: Transport & Storage
Product Decals debris or residue. 142008 Degelman Logo, 25-3/4” lg 2. Inspect all parts to see if anything has become 143198 Degelman Logo, 36” lg entangled in them. Remove the entangled material. - Page 10 38 Series Model Overview 838/1038/1238 & 1438/1638 38 Series Strongbox 788270 - 8 ft 788180 - 10 ft 788285 - 12 ft 788003 - 14 ft 788004 - 16 ft 788135 - Loader Binder Kit (Optional) 38 SERIES BLADE COMPONENTS comes with...
-
Page 11: Mounting Options Overview
38 Series Mounting Options Overview STRONGBOX 838, 1038 & 1238 MOUNTING OPTIONS ® 788110 - Universal Bucket Mount 788425 - 3PT Hitch Bracket - CAT 3N (Does not fit quick-attach) 788280 - Universal Skid Steer Bracket 788260 - 3500 DIL Dozer Bracket (Does not fit SB1238 with S/N:1074 &... - Page 12 38 Series Mounts UNIVERSAL BUCKET MOUNT UNIVERSAL SKID STEER BRACKET 788110 - Universal Bucket Mount Assembly 788280 - Universal Skid Steer Bracket Assembly 788105 - Bucket 788280 - Universal Skid Mount Assembly (2) Steer Bracket Assembly (1) UNIVERSAL LOADER BRACKET UNIVERSAL LOADER BRACKET 788320 - Universal Loader Bracket Assembly 788330 - Universal Loader Bracket Assembly...
- Page 13 38 Series Mounts 3500 DEGELMAN DOZER BRACKET 779059 - Angling Cap 788260 - 3500 DIL Dozer Bracket Assembly Assembly, 3500 (1) (Does not fit SB1238 with S/N:1074 & lower) 118026 - Bolt, 5/8 x 2 (3) 118448 - Lock Nut, 5/8...
- Page 14 50 Series Model Overview 1650/1850/2050 50 Series Strongbox 788005 - 16 ft 788006 - 18 ft 788007 - 20 ft 788135 - Loader Binder Kit (Optional) 50 SERIES BLADE COMPONENTS comes with... 788138 - Load Binder Ratchet (1) Urethane Cutting Edge (option) 788137 - Grab Hook (4) 788275 (2) - 16 ft 788136 - Chain, 60”...
-
Page 15: Mounting Options Overview
50 Series Mounting Options Overview 1650, 1850 & 2050 MOUNTING OPTIONS 788150 - Universal Bucket Mount 788310 - Universal Loader Bracket *Requires weld-on bucket brackets 788400 - 3PT Hitch Bracket - CAT 3N 788375 - 69/7200 Truss Bundle (2 Required) 788340 - 69/7200 &... - Page 16 50 Series Mounts UNIVERSAL BUCKET MOUNT 788150 - Universal Bucket Mount Assembly 788151 - Bucket Mount Assembly (2) UNIVERSAL LOADER BRACKET 788310 - Universal Loader Bracket Assembly 788310 - Universal Skid Steer Bracket Assembly (1) 3PT HITCH BRACKET 788400 - 3PT Hitch Bracket (CAT 3N) Assembly 788918 - Pin, 1-1/4 x 4-1/2 (1) 118538 - Flat Washer, 5/16 (3) 118530 - Lock Washer, 5/16 (3)
- Page 17 50 Series Mounts 69/7200 & 7900 DEGELMAN DOZER BRACKET 788340 - 69/7200 & 7900 DIL Dozer Bracket Assembly (Hydraulic Angling & Tilt Kits are not required for these units, deselect when ordering) (This mounting system requires 2 model specific Truss Bundles - see options below)
-
Page 18: Warranty
2. To any goods that have sustained damage or deterioration attributable to a lack of routine maintenance (eg. Re- torque of mounting hardware.) 3. If parts not made or supplied by Degelman have been used in the connection with the unit, if, in the sole judgement of Degelman such use affects its performance, safety, stability or reliability.
