Summary of Contents for Polaxis Talko

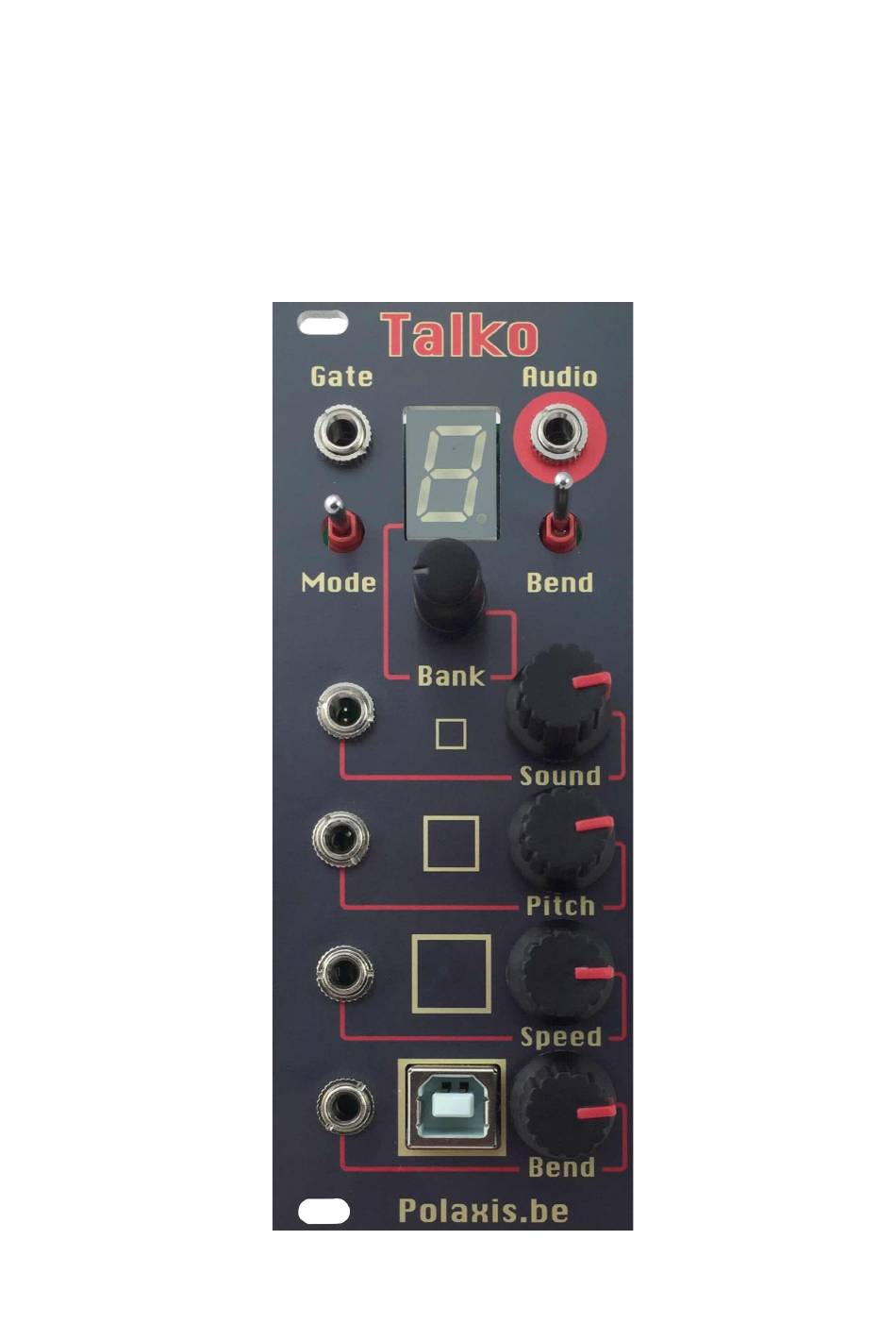

- Page 1 Talko User Manual v1.2 rev2 www.polaxis.be >Talko Have your modular speak out the CV, the LPC, 8 bits, vintage way. Page 1...
-
Page 2: Table Of Contents
Talko User Manual v1.2 rev2 www.polaxis.be Table of Contents 1Short description..............3 2Technical details............3 3Banks..................4 4Panel..................4 4.1Mode Switch........................4 4.2Sound jack & pot....................... 6 4.3Gate jack..........................6 4.4 Bend Switch........................6 4.5 Speed jack & pot.......................6 4.6 Pitch jack & pot.........................6 4.7 Bend jack &... -
Page 3: 1Short Description
width: 10hp depth: 30 mm skiff friendly power: + 12V: 65ma . Talko can also be powered via USB when using a jumper. audio: un-filtered 5V PWM carrier at 62500 Hz, the output is protected against over or under voltage by clipping from 0 to +5V ... -
Page 4: 3Banks
Talko User Manual v1.2 rev2 www.polaxis.be 3 Banks A rotary encoder is used to select the bank, while its button can be used to simulate the gate going high and have the module speak when pressed. 0: Digits (from 0 to 9) male voice... - Page 5 Talko User Manual v1.2 rev2 www.polaxis.be In Speech mode, the speech has the priority and will complete before starting again on the new gate signal. in VCO mode the Speed is not active (unless Bending is turned CCW, see below).
-
Page 6: Sound Jack & Pot
Talko User Manual v1.2 rev2 www.polaxis.be 4.2 Sound jack & pot CV signal in allows to choose the word, phrase or allophone to be generated. Any change on the Sound entry reset the counter in bank N°8 and start a new transmission in Bank 9. -
Page 7: 5Basic Patches
Talko User Manual v1.2 rev2 www.polaxis.be 5 Basic Patches Beyond having it to speak and bending it in (the obvious) Speech mode, test the Repeat mode by feeding some rhythmic pattern into the Gate entry and particularly play with the Gate length. -
Page 8: Updating Firmware
Talko User Manual v1.2 rev2 www.polaxis.be On Mac you just plug the module and a new com port shows up. On PC you must install the MCP 2200 driver to create a com port. The Windows driver can be found here : http://ww1.microchip.com/downloads/en/DeviceDoc/MCP2221%20Windows%20Driver... -
Page 9: 8Assembly
Talko User Manual v1.2 rev2 www.polaxis.be 8 Assembly If you are assembling the kit, see the Github assembly page : https://github.com/deladriere/euro-modules/wiki/Assemble-Talko Page 9... -
Page 10: 9Appendix
Talko User Manual v1.2 rev2 www.polaxis.be 9 Appendix 9.1 List of phrases 0: “set the control for the start of the one” 1: “C time slow” 2: “start the fire 3: “smoke the circuit” 4: “turn past the time” 5: “stop the machine”...
