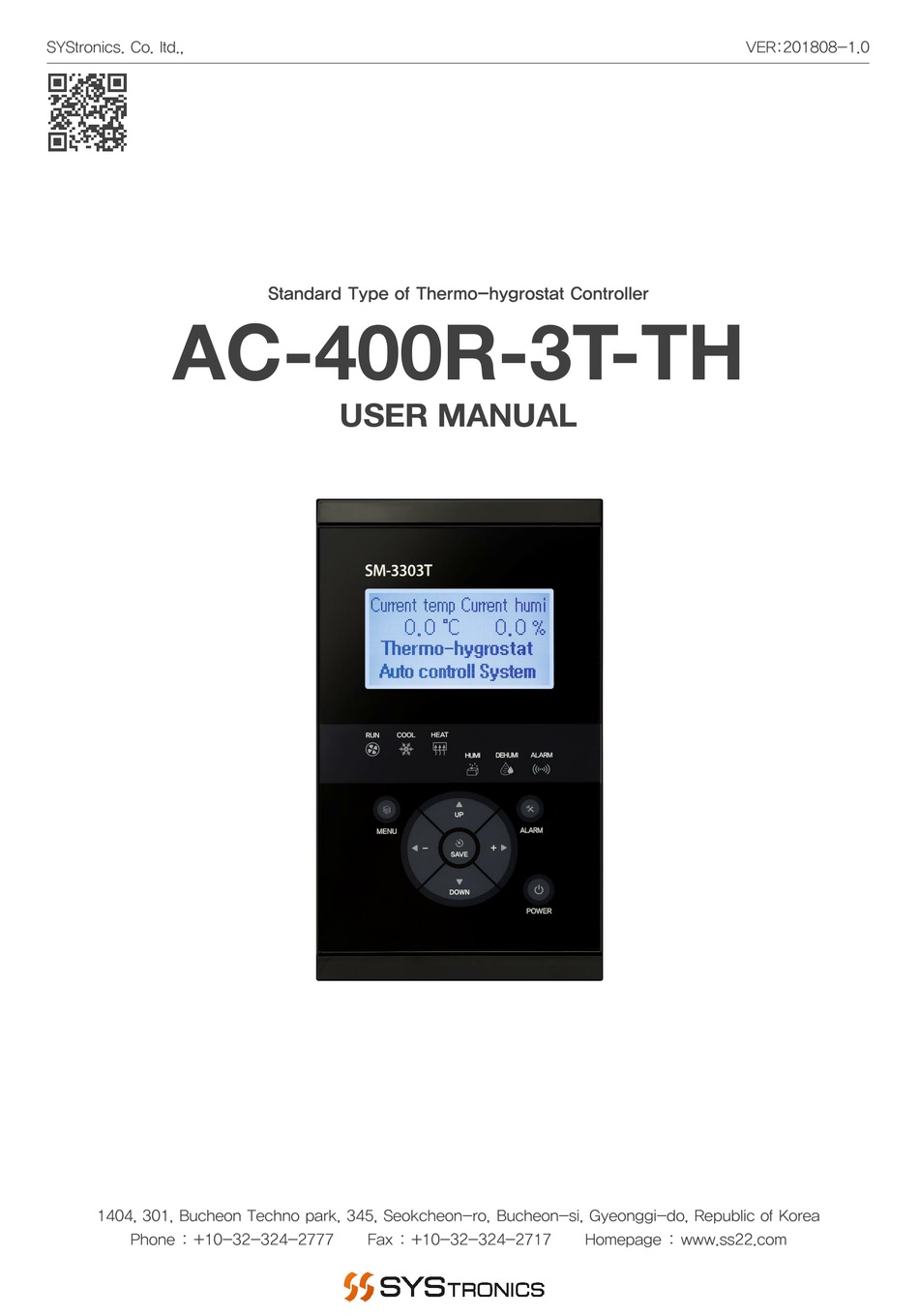

AC-400R-3T-TH MANUAL
SYStronics. Co. ltd.,
VER:201808-1.0
Standard Type of Thermo-hygrostat Controller
AC-400R-3T-TH

USER MANUAL

1404, 301, Bucheon Techno park, 345, Seokcheon-ro, Bucheon-si, Gyeonggi-do, Republic of Korea
Phone : +10-32-324-2777
Fax : +10-32-324-2717
Homepage : www.ss22.com
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the AC-400R-3T-TH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SYStronics AC-400R-3T-TH

  • Page 1: User Manual

    AC-400R-3T-TH MANUAL SYStronics. Co. ltd., VER:201808-1.0 Standard Type of Thermo-hygrostat Controller AC-400R-3T-TH USER MANUAL 1404, 301, Bucheon Techno park, 345, Seokcheon-ro, Bucheon-si, Gyeonggi-do, Republic of Korea Phone : +10-32-324-2777 Fax : +10-32-324-2717 Homepage : www.ss22.com...
  • Page 2 AC-400R-3T-TH MANUAL Precautions Be sure to read and ensure that your safety precautions are used to protect your safety and prevent property damage. We shall not accept any liability for any loss caused by the use or carelessness caused by the use or handling of this manual.

  • Page 3: Product Overview

    AC-400R-3T-TH MANUAL Product Overview thermo-hygrostat controller composed of coolling 2 step·heating 5 step· AC-400R-3T-TH is humidification 1 step when using electrode (E-type)·humidification 2 step when using heating (P-type)·dehumidification 2 step. The monitor and sensor can be changed to other products electrode type humidifier depending on the usage purpose.
  • Page 4 AC-400R-3T-TH MANUAL Product Component Mainboard (1EA / DDC-400R) Vertical monitor General type temp. humi. sensor (1EA / SM-3303T) (1EA / STH-CR5N)
  • Page 5 AC-400R-3T-TH MANUAL Option Product Component Warning Monitor 3 type (SS-3303, SM-3303T, SM-4000T)·sensor 2 type (STH-CR5N, STH-CD5N) can be selected by user convenience. Button type monitor Horizontal monitor (1EA / SS-3303) (1EA / SM-4000T) Current sensor Duct type temp.humi. sensor (1EA / SCT-02)

  • Page 6: Product Specifications

    AC-400R-3T-TH MANUAL Product Specifications Mainboard specification (DDC-400R) Input power 100 ~ 220VAC / 50/60Hz Output voltage 100 ~ 220VAC / 50/60Hz (Main fuse 3A / 250V) Output contact capacity 250VAC / 5A (Relay output) Input port 10 Port (Non powered contact)
  • Page 7 AC-400R-3T-TH MANUAL Option Product Specification Button type monitor specification (SS-3303) Input power DC 12V Current consumption 200mA / 2.0W LCD resolution 128 x 64 (Pixel) Communication port 1 Port (RS-485) Operating environment -10 ~ 60℃ / 5 ~ 90% (Non condensing) Storage temperature -20 ~ 60℃...
  • Page 8 AC-400R-3T-TH MANUAL Product Dimension Mainboard dimension (DDC-400R / Unit: mm) Top view Front view Side view Back view...
  • Page 9 AC-400R-3T-TH MANUAL Product Dimension Vertical monitor dimension (SM-3303T / Percussion dimension : W101 × H150 / Unit : mm) Top view Side view Front view Guide dimension (Screw : PMS 3 × 6 2EA / Unit : mm) Top view...
  • Page 10 AC-400R-3T-TH MANUAL Product Dimension General type temp. humi. sensor dimension (STH-CR5N / Unit : mm) Top view Front view Side view...
  • Page 11 AC-400R-3T-TH MANUAL Option Product Dimension Button type monitor dimension (SS-3303 / Percussion dimension : W111 × H126 / Unit : mm) Top view Front view Side view Guide dimension (Screw : PMS 3 × 6 4EA / Unit : mm)
  • Page 12 AC-400R-3T-TH MANUAL Option Product Dimension Horizontal monitor dimension (SM-4000T / Percussion dimension : W150 × H101 / Unit : mm) Top view Front view Side view Guide dimension (Screw : PMS 3 × 6 4EA / Unit : mm) Top view...
  • Page 13 AC-400R-3T-TH MANUAL Option Product Dimension Duct type temp. humi. sensor dimension (STH-CD5N / Unit : mm) Top view Duct bracket Front view Side view...
  • Page 14 AC-400R-3T-TH MANUAL Option Product Dimension Current sensor dimension (SCT-02 / Unit : mm) Top view...
  • Page 15 AC-400R-3T-TH MANUAL Product Installation Method Mainboard installation method (DDC-400R) 1. Open the channel fixing bracket on the back of the controller completely down. 2. After positioning the channel (35 mm) set on the wall or panel to the groove on the back of the controller,...
  • Page 16 AC-400R-3T-TH MANUAL Product Installation Method Vertical monitor installation method (SM-3303T) 1. After drilling a hole (W110.0 x H149.0 / mm) that meets the specifications of the panel or equipment, push the monitor in the direction and fix it. 2. Align the guide provided with the product to the groove on the back side of the monitor and securely...
  • Page 17 AC-400R-3T-TH MANUAL Product Installation Method General type temp.humi. sensor installation method (STH-CR5N) Securely fix the sensor to the equipment to be installed or the wall with four screws (M3) for body fastening. Installation part dimension (Unit : mm) Please refer to the installation drawing at the bottom for correct operation.
  • Page 18 AC-400R-3T-TH MANUAL Product Wring Method L1 (Monitor) L3 (Main / Remote) L2 (Temp·humi sensor) CT (Current sensor) AO Option board AO 1 AO 2 AO 3 Cooling Heating Humidification proportion proportion proportion In addition, you can use analog output when using optional board.
  • Page 19 AC-400R-3T-TH MANUAL Product Wring Method Wiring diagram when using electrode type (AC-400R-3T-TH-E) MONITOR SENSOR COMMS. BLACK WHITE CT SENSOR AC 220V NOISE FILTER...
  • Page 20 AC-400R-3T-TH MANUAL Product Wring Method Wiring diagram when using heating type (AC-400R-3T-TH-P) MONITOR SENSOR COMMS. NOISE AC 220V FILTER FAN1...
  • Page 21 AC-400R-3T-TH MANUAL Product Wring Method Wiring diagram when install remote monitor Main monitor Remote monitor (SM-3303T) (SM-3303T) RED / DC12V+ BLACK / L2- GREEN / DC12V- WHITE / L2+ WHITE / L1+ BLACK / L1- AC 220V Mainboard Remote monitor power supply...
  • Page 22 AC-400R-3T-TH MANUAL Product Wring Method Analog output option board 1. DDC - 400R is a function not provided and uses the DDC - 401R equipped with an additional optional board. 2. By operating the internal DIP switches, you can select and output 4 ~ 20mA, 2 ~ 10V, 1 ~ 5V.
  • Page 23 AC-400R-3T-TH MANUAL Operating Function Up button Save button Menu button Alarm button Decrease button Increase button Down button Power button Waiting screen Main screen Setting screen Temp Humidity Temp Humidify 1)Operation Status +> Name Image 24.0℃ 50.0% 25.0℃ 50.0% 2)Alarm Total List +>...
  • Page 24 AC-400R-3T-TH MANUAL Screen Function Main screen Numerically displays the current temperature and set temperature, and displays animation and alarm status such as cooling and heating Temp Humidity 25.0℃ 50.0% Humidification· Cooling / Alarm Blowing stop Heating stop not occur dehumidification stop...
  • Page 25 AC-400R-3T-TH MANUAL Display Flow Chart Flow chart of operation stop ( Alarm Contents ) 1)Fan Alarm Delete Cancel Alarm contents screen Press for 5 seconds ( Monitor Setting ) Temp Humidity Return to power outages 24.0℃ 50.0% 1)Backlight : 60 S...
  • Page 26 AC-400R-3T-TH MANUAL Display Flow Chart Flow chart of operation run Stop delaying... ( Deviation Setting ) Time remaining : 10S 1)Cooling 1.0℃ A themo - hygrostat Auto controller system 2)Heating Deviation setting screen Operation stop screen Press for 5 seconds...
  • Page 27 AC-400R-3T-TH MANUAL General Setting General setting description Item Setting range Initial value Contents Temp -20.0℃ ~ 25.0℃ This function sets the desired temperature to control the room temperature. setting 80.0℃ Humidity 0.0% ~ 50.0% This function sets the desired humidity to control the room humidity.
  • Page 28 AC-400R-3T-TH MANUAL Engineer Setting Environment setting explanation Item Setting range Initial value Contents When using the remote monitoring control function, the address of the Unit No. 1 No. 1 equipment is given. number ~ 99 Press the alarm button for more than 5 seconds to unlock the equipment number.
  • Page 29 AC-400R-3T-TH MANUAL Engineer Setting Environment setting explanation Item Setting range Initial value Contents Heater Heating operation set the time for heating step to be delayed by heating delay 5 sec delay time even if heating condition occurs. 250 sec time It is also applied as delay time between heating steps.
  • Page 30 AC-400R-3T-TH MANUAL Engineer Setting Parameter setting Item Setting range Initial value Contents This function set the type of humidifier and operation method. Electrode Type of Electrode : Set when use electrode type humidifier. / Heating Electrode humidifier Heating : Set when use heating type humidifier.
  • Page 31 AC-400R-3T-TH MANUAL Alarm Contents Alarm setting explanation Status Occur cause Controller operating status at alarm When the alarm occurs, the heating output is Heating check After heating output (DO 6, 7, 8, 9, 10) when stopped, and the other operation operates...
  • Page 32 AC-400R-3T-TH MANUAL Alarm Contents Alarm setting explanation Status Occur cause Controller operating status at alarm It occurs when there is no change in the Humidification operation is stopped. When the Drainage check current value even in drainage operation alarm returns, the alarm is canceled and the Auto return in the electrode type humidifier.
  • Page 33 Service Charge The warranty period for Systronics products is 1 year after purchase. (Warranty period for humidifier parts is 4,000 hours of operation time.) To ensure use of the product in a mint condition for a long period of time, be sure to familiarize yourself with the precautions and instructions specified in the manual.
  • Page 34 AC-400R-3T-TH MANUAL Precautions Electronic control equipment has different operating characteristics from electromechanical equipment. Safety instructions for the application, installation and maintenance of the electronic control unit, important differences between the electrical and electronic control unit and the electric machine, and contents of the use for the electric control unit.
  • Page 35 AC-400R-3T-TH MANUAL Precautions Cable shield treatment The cables that require shielding are those that are driven by the inverter and special motors. We recommend using a shielded cable as shown in the figure below where there is a lot of noise or precise signal is required.
  • Page 36 AC-400R-3T-TH MANUAL Precautions Isolation operation for cable noise Isolation operation for cable noiseThe wiring of the microcomputer input / output wiring and the AC input terminal must be separated from each other to prevent noise from occurring. Incorrect Good AC input terminal wiring...
  • Page 37 AC-400R-3T-TH MANUAL...
