Oval PG30D Instruction Manual

NONCONTACT PULSE GENERATORS
MODEL PG30D
■ GENERAL
When used in conjunction with an OVAL flowmeter, the Model PG0D/PG0DEP noncontact pulse
generator provides voltage frequency pulses proportional to the flowrate of process fluid. The pulse
generator contains a pulse generating element of molded type and a protective circuit which prevents
erratic pulses otherwise generated by minute vibration of generator components. As the slit disc revolves,
a succession of voltage pulses (rectangular wave) is generated which can be used in a remote totalizing,
batching or blending system built around an OVAL flowmeter as the front end of signal pickup.
The pulse generator also offers compatibility: for example, PG0D may be replaced by PG0EP, PG0,
or PG0EP, while PG0DEP with PG0, PG0, or PG0EP.
By construction, this pulse generator comes in two types: PG0D (standard) and PG0DEP (flameproof).

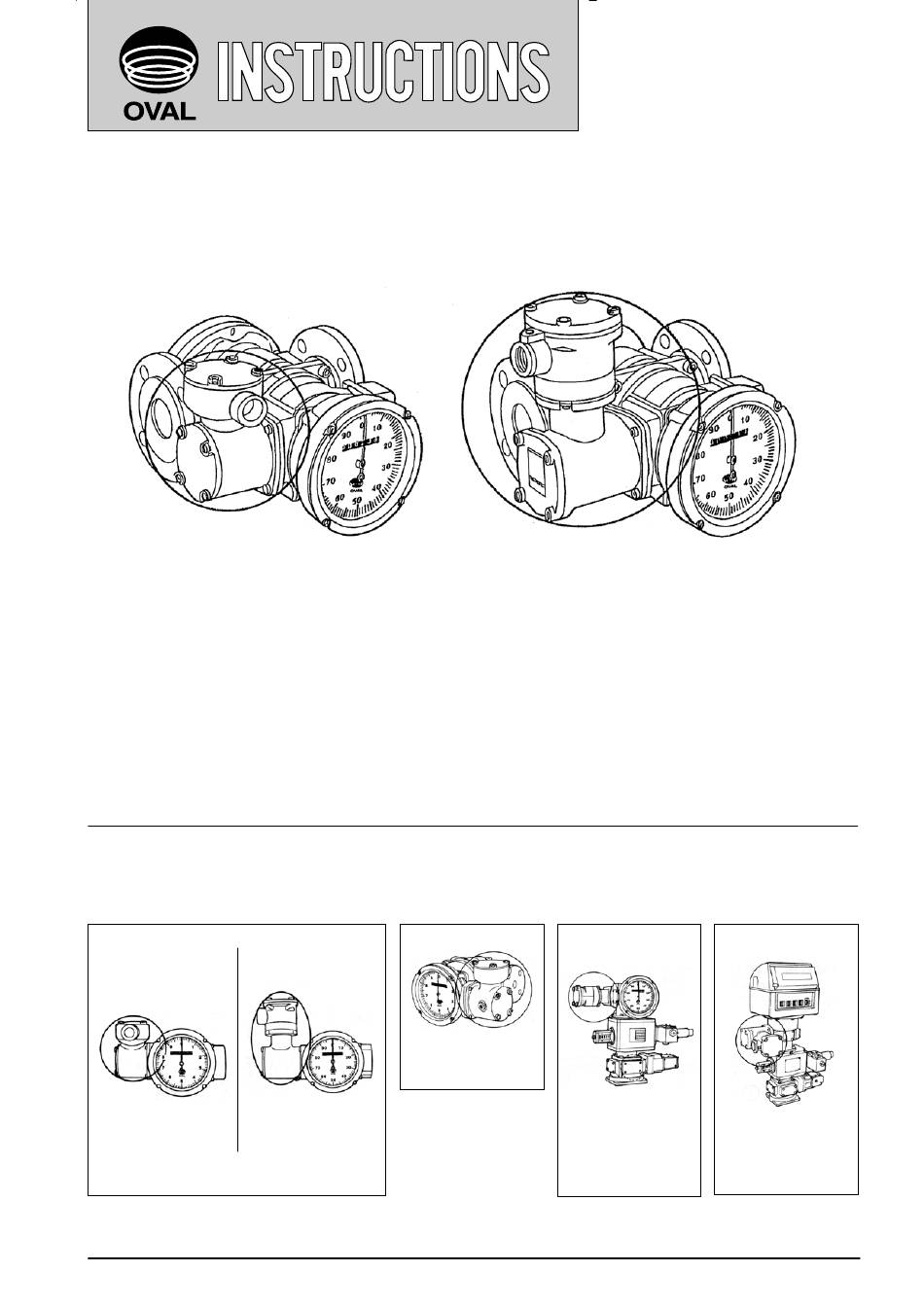

■ TYPICAL PULSE GENERATOR INSTALLATIONS
Engineering-unit pulse generation ... The rotor revolution is, after gear reduction and instrumental error
correction for the flowmeter, picked up and used primarily for remote totalization.
GB type
Pulse generator
for totalizer
Where engineering-unit pulses are required
MODEL PG30D / PG30DEP
2-wire system, operating on 24V
LW13 type
Pulse generator
for totalizer
Sizes 52 and 53 in
applications where
engineering unit pulses
are required.
Mounts as shown
in the circle on
converter "GB" when
non-engineering-unit
pulses before temp.
compensation are
required.
T-518-9-E
Ins. No.
MODEL PG30DEP
CB type
Where unit pulse after Where unit pulse after
temp. compensation
temp. compensation
is desired with model
is desired with model
LW11register. LW42, 43 register.
PB type
