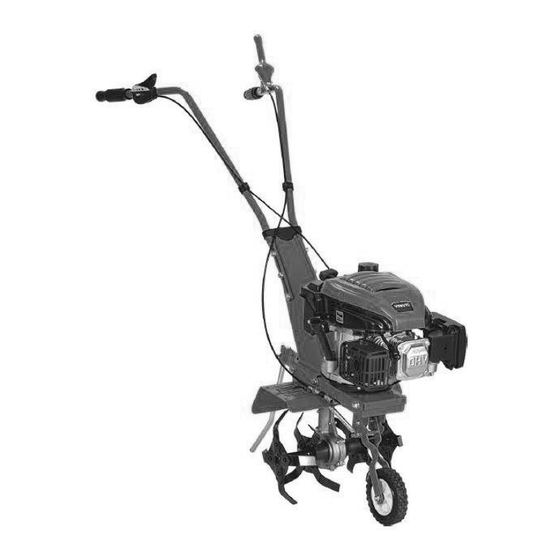

Summary of Contents for P1PE P140T
- Page 1 FOR YOUR SAFETY You must read and understand this manual before use. Keep this manual for future reference.
-
Page 2: Table Of Contents
INDEX CONTENTS PAGE NO.S SAFETY 3 - 8 PART LOCATIONS QUICK START GUIDE 10 - 13 STARTING PROCEDURE STOPPING PROCEDURE USING THE MACHINE 14 - 16 MAINTENANCE 16 - 20 TROUBLESHOOTING SPECIFICATION DECLARATIONS OF CONFORMITY RECYCLING AND PRODUCT DISPOSAL CONTACT DETAILS WARRANTY MAUAL UPDATES... -
Page 3: Safety
1. SAFETY General Safety Notes. The operator of the machine is responsible for, and has a duty of care in making sure that the machine is operated safely and in accordance with the instructions in this user manual. Keep the manual safe and pass it on if the machine is loaned or sold to another user. - Page 4 1.10 Carbon Monoxide (where applicable). 1.11 Carbon monoxide is a colourless and odourless gas. Inhaling this gas can cause death as well as serious long term health problems such as brain damage. 1.12 The symptoms of carbon monoxide poisoning can include but are not limited to the following;...
- Page 5 CAUTION ALL FUELS ARE FLAMABLE 1.31 ALWAYS fuel and defuel in a well ventilated area outside of buildings. 1.32 ALWAYS wear correct, suitable and fit for purpose Personal Protective Equipment (PPE), suggested items are but not limited to safety gloves, overalls. 1.33 When fueling/de-fueling ALWAYS avoid inhaling fumes.
- Page 6 1.56 Nickel/cadmium = potassium hydroxide alkali electrolyte. 1.57 Use fresh running water to wash off excess electrolyte, continue this until medical assistance arrives. Make sure that you do not was the electrolyte to another part of your body or face. 1.58 If electrolyte comes in to contact with Eyes the electrolyte needs to be immediately washed away with large amounts of water.
- Page 7 MACHINE SPECIFIC SAFETY 1.80 General Machine Safety. Read the owner’s manual carefully to understand how to operate this machine 1.81 properly. 1.82 Inspect machine before use and replace any damaged parts before operation. Check for fuel leaks and make sure all fasteners are secure and in place. 1.83 Replace parts that are cracked, chipped or damaged in any way before using the machine.
- Page 8 1.98 If the equipment is running abnormally, please stop the engine and carefully check all the parts to see if any part is damaged. Repair it before re-starting and using the equipment. 1.99 DO NOT exceed the cultivable depth. 1.99.1 DO NOT work too fast.
-
Page 9: Part Locations
2. PART LOCATIONS Clutch Handle Rotary Tines Recoil Starter Handle Depth / Drag Bar Fuel Filler Cap Exhaust Air Filter Oil Filler / Dipstick Spark Plug Handlebars Transport Wheel Throttle Control Lever... -
Page 10: Quick Start Guide
3. QUICK START GUIDE CAUTION This guide is meant to serve as a quick reference for operating your Hyundai Tiller. We always advise reading the manual in full before operation. CAUTION For OUTDOOR use ONLY. The petrol tiller produces carbon monoxide – a poisonous, colourless and odourless gas that can cause serious injury or death. - Page 11 Remove the engine cover (1) to access the recoil starter handle (2). Gently pull the starter handle through the engine cover and replace the engine cover. FUEL CAUTION ALL FUELS ARE FLAMMABLE ALWAYS fuel and defuel in a well ventilated area outside of buildings. ALWAYS wear the correct, suitable and fit for purpose Personal Protective Equipment (PPE).
- Page 12 CAUTION The tiller is shipped without oil. From empty, it will require 0.6l of a quality semi-synthetic SAE 10W-30 engine oil before operation. 2.11 Remove the oil filler / dipstick from the oil filler neck (1). 2.12 Start adding small amounts of engine oil and check with the dipstick until you reach the upper level mark on the dipstick (2).
-
Page 13: Starting Procedure
2.10 The transport wheel has 2 positions. When down the wheel is used for moving the machine. When up the machine is used for tilling. 2.11 Move the transport wheel to the up position by pulling the wheel down and moving it to the up position locking slot (1). -
Page 14: Stopping Procedure
5. STOPPING PROCEDURE NOTE Before stopping / shutting down the tiller, allow the engine to idle for a few minutes. Release the clutch lever (1). Move the throttle lever all the way back passed the MIN position and hold it there until the engine stops (2). - Page 15 Make sure you check for hidden electrical cables or similar on the surface of the lawn. ALWAYS run the machine around these objects. NEVER intentionally run the machine over foreign objects. Check the clutch lever and all guards are fitted and functioning correctly. DO NOT use the machine if it is not working properly.
-
Page 16: Maintenance
5.25 If the machine starts to bounce or shake you should reduce the throttle speed. 5.26 DO NOT leave the engine running when moving to and from the working area. 5.27 You MUST only use the machine in the forward direction. 5.28 DO NOT use the tiller to work across slopes. - Page 17 Every 3 Every 6 Every 12 Every 24 Item Every use months of months or months or months or 15 hours 50 hours 100 hours 300 hours Check Air Filter Clean Check / Adjust Spark Plug Change Carburetor Clean Check Engine Oil Change Cutting...
- Page 18 AIR FILTER CAUTION The engine MUST NOT be run without an air filter otherwise piston and/or cylinder damage can occur. This type of damage will NOT be covered under warranty. Maintaining the air filter is very important. If dirt is allowed to get in to the engine through improperly installed, serviced or inadequate filter elements, it can damage and wear out the engine.
- Page 19 Use a suitable container to catch the fuel. Take care not to spill fuel and make sure that all spilt fuel is cleared away safely. SPARK PLUG You MUST allow the engine to cool down before carrying out any maintenance. Always replace with the same model spark plug as fitted.
- Page 20 Refit the cleaned and adjusted spark plug by hand to avoid cross-threading. 6.12 After spark plug seats then tighten as necessary but avoid over-tightening. 6.13 Re-attach the spark plug cap. CLEANING CAUTION DO NOT use a hose pipe or pressure washer to clean the engine. Water can damage the engine or contaminate the fuel system.
-
Page 21: Troubleshooting
8. TROUBLESHOOTING NOTE Where necessary, all corrective actions should be carried out by suitably qualified persons. Problem Possible Cause Possible Corrective Action Fuel tank is empty Fill fuel tank Stale fuel Drain carburetor float bowl Engine does not start Air filter element is dirty Clean or replace air filter Spark plug is loose Tighten spark plug... -
Page 22: Specification
9. SPECIFICATION Engine IC140V Displacement – cc Power @ 2800rpm – kW Starting Method Recoil Fuel Tank Capacity – l Fuel Type Unleaded Petrol Engine Oil Capacity – l Engine Oil Type SAE10W30 Transmission Gear Drive Cutting Width – mm Noise Level - dBA Vibration Left Handle –... -
Page 23: Declarations Of Conformity
10. DECLARATIONS OF CONFORMITY Genpower Ltd confirms that these P1PE products conform to the following CE Directives; 2006/42/EC Machinery Directive 2004/108/EC EMC Directive 97/68/EC_2010/26/EC NRMM Emissions Directive... -
Page 24: Recycling And Product Disposal
11. RECYCLING & PRODUCT DISPOSAL We do not offer a takeback scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and or Batteries is passed onto you by So when it becomes necessary to dispose of your machine you must take it to your local Civic Amenity Site. -
Page 25: Contact Details
TELEPHONE +44 (0) 1646 687880 +44 (0) 0164 686198 TECHNICAL EMAIL aftersales@genpower.co.uk WEBSITE www.p1pe.co.uk 13. WARRANTY To register your machine for the manufacturer’s warranty, please visit http://p1pe.co.uk/warranty/ 14. MANUAL UPDATES Our manuals are constantly being reviewed and updated. However if you find and error, omission or something you find unclear, please contact your dealer for assistance. - Page 28 P1PE – Position One Power Equipment Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW www.p1pe.co.uk...
