Hesai HS4000 User Manual

Handheld remote methane leak detector

Advertisement

Quick Links

www.hesaitech.com
4000-en-1901A1
HS4000
Handheld Remote
Methane Leak Detector
User's Manual
HESAI Wechat

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HS4000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hesai HS4000

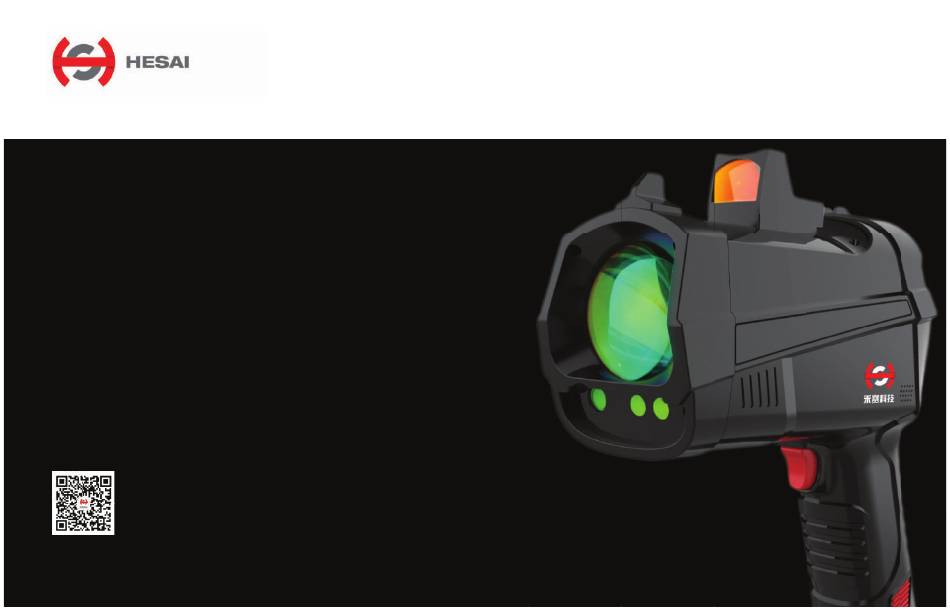

  • Page 1 4000-en-1901A1 HS4000 Handheld Remote Methane Leak Detector User’s Manual HESAI Wechat...
  • Page 2 All reasonable efforts have been made to ensure the accuracy of the information. However, Hesai cannot be held responsible for any errors. Hesai does not warrant the accuracy and reserves the right to make changes to the catalog and its functions at any time...
  • Page 3: Table Of Contents

    Contents Safety Notice Instrument Operation Charging Battery Body Safety 11-12 Laser Safety Battery Installation 13-14 01-02 Battery and Charge Safety Instructions on the Red Dot Sight Usage Safety Bluetooth Connection Storage and Transportation Safety Operational Steps 17-18 Intrinsic Safety Detection Do's and Don'ts 19-20 Technical Support and Introduction...
  • Page 4: Safety Notice

    The enclosure level of the instrument is IP54. Please stop using the instrument and pull out the battery if any liquids have gotten inside. Do not look at laser apertures while using the instrument. Do not fix the instrument without the permission from Hesai. Do not touch the LCD when it is broken.
  • Page 5: Laser Safety

    1.2 Laser Safety Infrared measurement Infrared Measurement Laser: Class 1 Eye Safe, wavelength: 1651 nm, <10 mW. laser aperture Green Indication Laser: Class 3R, wavelength: 520 nm, <5 mW. Green indication laser aperture NOTE Please avoid direct eye exposure. The device satisfies the requirements of: IEC 60825-1:2014;...
  • Page 6: Usage Safety

    Do not change the battery in explosive atmospheres. Use charger type HS4000-C only. Do not charge the battery pack in explosive atmospheres. Do not dispose of the battery pack in the fire. Never attempt to disassemble the battery pack. Do not short-circuit the terminals of the battery pack.
  • Page 7: Introduction

    Through the APP, users can generate detection reports using the saved data as well. 2.1 Working Principle HS4000 emits an infrared laser at 1.65 um. The laser beam travels to the target, is partially absorbed by the gas, then reflected all the way back into the receiver.
  • Page 8 Unit ppm*m/%vol*m/%LEL*m Rechargeable Lithium battery pack, Power Supply Response Time 0.1 s/0.4 s/1.6 s Nominal Voltage: 7.2 V, HS4000-B Weight (with battery and sight) 0.76 kg Continuous operating time: 15 hours Operating Time (Typical value, ambient temperature 25°C, 2 batteries)
  • Page 9: Package Components

    Carrying Case Figure 2.2 Package Components Components Quantity Remark Handheld Remote Methane Leak Detector Lens Cap Battery Pack (HS4000-B) Can be equipped with additional batteries Power Adapter Charging Base (HS4000-C) Carrying Case Table 2.2 Package Components Description - 0 6 -...
  • Page 10: Interface Operation

    Interface Operation 3.1 Buttons Figure 3.1 Device Buttons Button Descriptions Power/Return Button Hold the power button about 3 seconds to open the device Enter Button Enter the menu/Confirm Up Button Move up the cursor Down Button Move down the cursor Test Button Click once to start testing and click again to stop testing Battery Compartment Button...
  • Page 11: Light Instructions And Display

    3.2 Light Instructions and Display 3.2.1 Light Instructions a b c Figure 3.2 Light Instructions Figure 3.2 Light Instructions Name Notes Infrared Laser Emitter Class 3R, Avoid Direct Eye Exposure Indication Laser (Green) The indication light will start to blink when the device starts detecting The blue working light will turn on in the process of device self-test Working Light (Blue) It will not light after the device is started...
  • Page 12 3.2.2 Interface Display Bluetooth Measuring Speed (Fast, Medium, Slow) Alarm Volume (Configurable) Battery Percentage Unit (ppm*m/%vol*m/%LEL*m) Measured Value Maximum Value Detected Background Value (Configurable) Alarm Threshold (Configurable) Histogram of Measured Value (the latest measured values of the last 80 measurements, x-axis represents time, y-axis represents concentration) Light Intensity (Reflected Light)
  • Page 13: Setting Menus

    3.3 Setting Menus 3.3.1 Menus and Default Settings Please click the enter button to enter the menus. Through the setting menus, users can set the alarm threshold value, alarm volume, screen display brightness, screen standby time, and system language. Also, Users can check the device hardware and software version through About menu.
  • Page 14: Instrument Operation

    Instrument Operation Before the operation, please read all instructions carefully in this manual. 4.1 Charging Battery 4.1.1 Charging Method Connect the power adapter cord to the charging base. Insert the battery into the charging base. Plug the power adapter into a power outlet. Unplug the adapter and remove the battery when charging is complete.
  • Page 15 4.1.2 Charging Notes Fault Indicator Light Charging Indicator Light Figure 4.2 Charging Indicator Light There are two lights on the battery charging base. One is the fault indicator light, the other is the charging indicator light. If the fault indicator light is on, stop charging immediately, unplug the charger, and contact us for maintenance. The charging indicator lights up during charging and turns off...
  • Page 16: Battery Installation

    4.2 Battery Installation 4.2.1 Insert Battery Step1 Step2 Step3 Align the battery with the battery compartment Push the battery in gently The installation is completed when you hear a click sound Figure 4.3 Insert Battery Steps NOTE Please ensure surrounding environments are safe. - 1 3 -...
  • Page 17 4.2.2 Remove Battery Step1 Step2 Step3 Press the battery compartment button Pull the battery out gently Till the battery is fully unplugged Figure 4.4 Remove Battery Steps NOTE Please ensure surrounding environments are safe. - 1 4 -...
  • Page 18: Instructions On The Red Dot Sight

    4.3 Instructions on the red dot sight Users can look through the red dot sight to achieve better aiming. The red dot sight is powered by the device . It automatically lights up after powering on the device. NOTE The sight is effective when aiming over 15 m away. If the distance from the measured object is too short, the red dot will not overlap with the green indication laser.
  • Page 19: Bluetooth Connection

    4.4 Bluetooth Connection 4.4.1 Functions HS4000 uses Bluetooth for communication tool. By connecting the detector with the App, users can: Check real-time data. Take pictures of a leakage point and show the corresponding N/E position. Show GPS location on the map.
  • Page 20: Operational Steps

    4.5 Operational Steps 4.5.1 Start to Use Step 2 Step 4 Remove the lens cap Click the test button to start measuring Step 5 Connect the device to Step 1 Step 3 the App (if needed). Take out the device and Hold the power button Aim the green insert the battery...
  • Page 21 4.5.2 After Use Step 2 Step 4 Hold the power button Cover the lens cap till the device turns off Step 5 Step 1 Step 3 Put the device, battery, Click the test button Remove battery and lens cap back to again to stop measuring the dedicated casing.
  • Page 22: Detection Do's And Don'ts

    4.6 Detection Do's and Don'ts 4.6.1 Case 1 When detecting through the glass, if the infrared laser is incident on the glass vertically, part of the light reflected by the glass will be received by the device, which will cause light intensity saturation or inaccurate measurement result. In such case, please point as shown in Figure 4.6.B to avoid receiving the glass reflected light.
  • Page 23 4.6.3 Case 3 When detecting towards the corner (or similar situation), as shown in Figure 4.8.A, the infrared laser may reflect between walls, resulting in high measurement concentration. In such case, please point as shown in Figure 4.8.B to have the accurate measurement result. Figure 4.8 Do's and Don'ts when detecting the corner - 2 0 -...
  • Page 24: Technical Support And Maintenance

    When the error message appears, try restarting the device. If error code 0x01\0x04\0x05\0x08\0x09 appears, please try to restart the device after it is completely cooling down. If the error still exists, please contact Hesai for the technical support. NOTE Do not try to repair the device on your own accord.
  • Page 25: Trouble Shooting

    5.2 Trouble Shooting The instrument cannot be turned on. Please reinstall the battery, wait 5 seconds, then press the power button to turn on the instrument. If the instrument still cannot turn on within 30 seconds, please check whether it is out of battery. The instrument's alarm is always on or never on.
  • Page 26: Warranty And Maintenance

    Warranty During the warranty period, Hesai will provide free maintenance service when the device can't operate due to the problem of software or hardware. But Hesai will not provide the service if the problem is caused by improper or unauthorized operations. Situations that break the warranty include but are not limited to the following: Missing warranty document or effective purchase vouchers.
  • Page 27: Fcc Statement

    Appendix I FCC Statement FCC ID: 2ASO2HS4000 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 28 Hesai Photonics Technology Co., Ltd Phone: 021-80394947-802 Business Email: info@hesaitech.com Technical Support: 021-80394947-896 Service Email: service@hesaitech.com Website: www.hesaitech.com Address: Building L2-B, Hongqiao World Centre, Shanghai HESAI WeChat...
