Always connect the battery first, in order to allow
•
the Controller to recognize system voltage
Use a 12V (36 cells) solar array for a 12V system.
•
Use a 24V (72 cells) solar array for a 24V system.
•

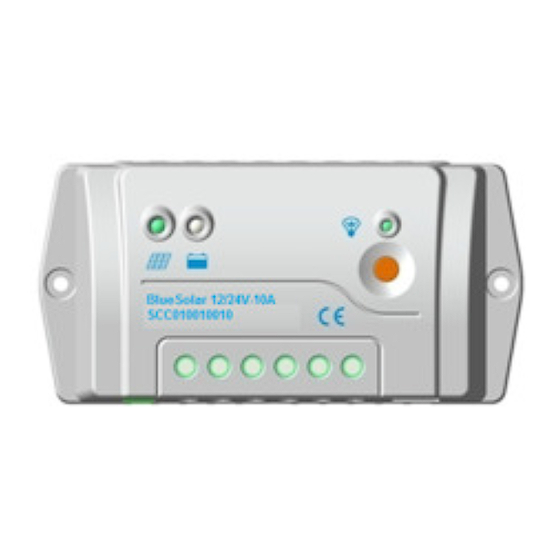

BlueSolar PWM-Pro Charge Controller
12V | 24V - 5A
12V | 24V - 10A SCC010010010
12V | 24V - 20A SCC010020110
12V | 24V - 30A SCC010030010
IMPORTANT
SCC010005010
Manual
Advertisement
Summary of Contents for Victron Energie BlueSolar PWM-Pro Series
- Page 1 Manual IMPORTANT Always connect the battery first, in order to allow • the Controller to recognize system voltage Use a 12V (36 cells) solar array for a 12V system. • Use a 24V (72 cells) solar array for a 24V system. •...
-
Page 3: General Safety Information
1. General Safety Information Read all instructions and cautions in the manual before starting the installation. Keep the controller away from rain exposure, severe dust, vibration, corrosive gas and intense electromagnetic interference. Do not allow water to enter the controller. There are no user serviceable parts inside the controller. - Page 4 3. Intallation and operation Important note: always connect the battery first, in order to allow the controller to recognize system voltage. The controller is a common positive controller. If system grounding is required, preferably the positive pole of the battery should be grounded.
- Page 5 Indicator Status Description: No voltage from solar array Green (night time) Low voltage from solar Green On Solid array (low irradiance) Green Slowly Flashing Charging Green On Solid Normal (Vbat > 12,1V resp. 24,2V) Green Fast Flashing Over voltage (Vbat > 15V resp. 30V) Orange On Solid Under voltage...
-
Page 6: Programming The Controller
4. Programming the controller The default settings (see specifications) can be modified with help of the remote panel. The panel must be connected to the controller with a standard RJ45 UTP cable. Use remote panel SCC900300000 to program the controller Possible settings (please see the manual of the remote panel for details): Load programs:... - Page 7 5. Protection Load Overload If the load current exceeds the rated current of controller (≥1.05 times rated discharge current), the controller will disconnect the load. Overloading must be cleared, then press the switch button. Load Short Circuit Fully protected against load wiring short-circuit (≥2 times rated discharge current).
-
Page 8: Troubleshooting
6. Troubleshooting Possible Faults Troubleshooting reasons Charging LED indicator off during daytime PV array Check that PV and battery wire when sunshine disconnected connections are correct and tight. falls on PV modules Battery voltage Check battery voltage. If too high, Green Battery higher than over disconnect the solar module... - Page 9 7. Technical specifications BlueSolar PWM-Pro charge controller 12/24V 5 A /10 A 20 A 30 A Battery voltage 12/24V Auto Select Rated charge 5 A / 10 A 20 A 30 A current Automatic load disconnect Maximum solar 28 V / 55 V (1) voltage Self-consumption 8 mA...
- Page 10 8. Battery related programming options (see remote panel manual for details) Battery related programming Sealed Flooded User options (default defined setting) Battery capacity setting (needed 200Ah 1~9999 for the internal battery monitor) Over voltage load disconnect 16.0V 9~17V Charge limit 15.0V 9~17V Over voltage reconnect...
- Page 11 Victron Energy Blue Power Distributor: Serial number: Serial number: Version : 01 Date : 01 September 2014 Victron Energy B.V. De Paal 35 | 1351 JG Almere PO Box 50016 | 1305 AA Almere | The Netherlands General phone : +31 (0)36 535 97 00 Customer support desk : +31 (0)36 535 97 03 : +31 (0)36 535 97 40...
