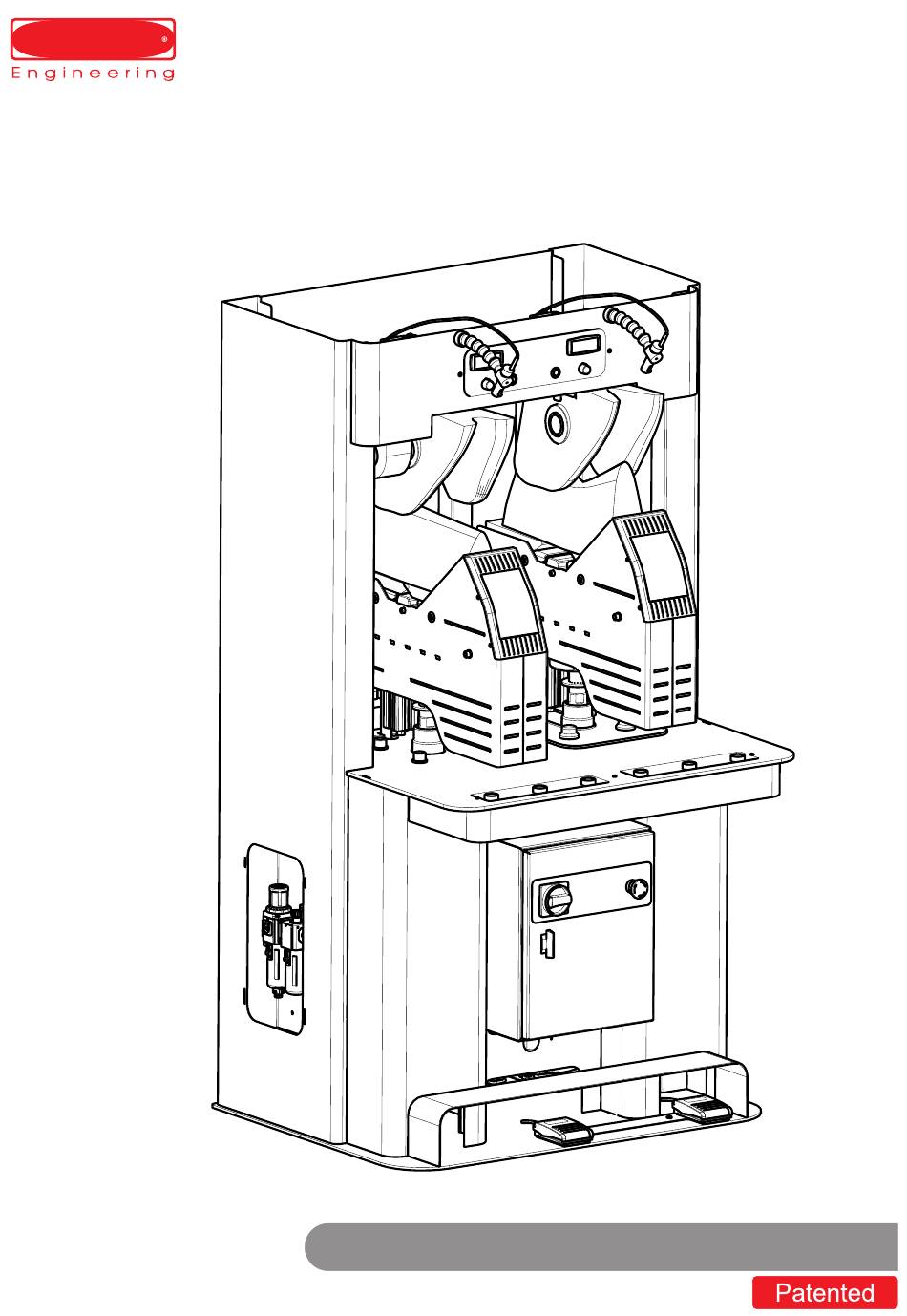

- Page 1 OLYMPIC VC-19D Operator’s manual OPERATOR'S MANUAL VC-19D VER. ASM-01217...
- Page 2 OLYMPIC VC-19D Operator’s manual...
-
Page 3: Table Of Contents
Panel Adjustments Operation Maintenance VC-19D Assemblying VC-19D Hot Station Head Assembly VC-19D Hot Station Support Base with Ø160 Cylinder Assembly VC-19D Cold Station Head Assembly VC-19D Cold Station Support Base with Ø160 Cylinder Assembly VC-19D Bottom Base Valves Assembly VC-19D Projector... -
Page 4: Introduction
OLYMPIC VC-19D Operator’s manual Introduction Electric and pneumatic connections 1. Connect the machine (SINGLE PHASE 230V - 50Hz). The purpose of this manual is to inform the owner of this 2. Before plugging in the machine, check that the main... -
Page 5: Holding - Transportation
OLYMPIC VC-19D Operator’s manual Holding - Transportation Technical data & Dimensioning 1. Use the clevy’s existed on the top of the machine with 920 mm proper belts to lift the machine. 2 . Pass the trans-pallet's forks under the pallet as shown in 847 mm the Figure below. -
Page 6: Panel Adjustments
OLYMPIC VC-19D Operator’s manual Panel Adjustments Panel Adjustments 1 Hot Station Temperature: Set the temperature from 60 to 2. Cold Station Temperature: Set the temperature from 9 to 110°C. Temperature is a basic factor for the crimping. 11°C (find the suitable temperature for the minimum Choose the higher temperature (according the material you condensation). -
Page 7: Operation
OLYMPIC VC-19D Operator’s manual Operation Step 3. Press the START buttons simultaneously and release Step 1. Place the vamp in the hot station mould as shown in the pedal to complete the procedure. The machine will revert Figure 1 to its initial position after the end of the setting time. -
Page 8: Vc-19D Assemblying
OLYMPIC VC-19D Operator’s manual ASSEMBLING VC-19D Hot Station Head Assembly p ( age 9) Hot Station Support Base with Main Cylinder (page 10) Cold Station Head Assembly p ( age 11) Cold Station Support Base with Main Cylinder (page 12) -
Page 9: Vc-19D Hot Station Head Assembly
OLYMPIC VC-19D Operator’s manual VC-19D Hot Station Head Assembly 9948 BOM ID PartNo Description CAS-00150 HOT MOULD HEAD INTERCHANGE PART CAS-00154 VC-19 HOT STATION MOULD CAS-00155 VC-19 HOT STATION MALE MOULD ELE-00516 HEATING SENSOR 6x35 (L=80CM) ELE-00660 HEATING ELEMENT Φ20X110... -
Page 10: Vc-19D Hot Station Support Base With Ø160 Cylinder Assembly
OLYMPIC VC-19D Operator’s manual VC-19D Hot Station Support Base with Main Cylinder 1238 1015 BOM ID PartNo Description BOM ID PartNo Description CAS-00151 VC-19D SUPPORT MOULD BASE PNE-09925 ELBOW MALE ADAPTOR 8-1/4" GEN-00488 VC-19 MOULD SUPPORT COVER REV-00376 NUT, CUSTOM, M36X2.0... -
Page 11: Vc-19D Cold Station Head Assembly
OLYMPIC VC-19D Operator’s manual VC-19D Cold Station Head Assembly 9948 1240 9946 1098 1163 1097 BOM ID PartNo Description BOM ID PartNo Description CAS-00156 COLD STATION MALE MOULD REV-00531 ROTATING BASE CONNECTION PIN CAS-00158 COLD STATION MOULD, NORMAL REV-00535 HOLDING WASHER Φ50... -
Page 12: Vc-19D Cold Station Support Base With Ø160 Cylinder Assembly
Cold Station Support Base with Main Cylinder 1239 BOM ID PartNo Description CAS-00151 VC-19D SUPPORT MOULD BASE GEN-00488 VC-19 MOULD SUPPORT COVER LAS-00589 PISTON GUIDE LAS-00822 VC-16 LIQUID HOLDER PNE-00059 NIPPLE, TAPER, 1/4 (M) - 1/4 (M) PNE-00074 NON-RETURN VALVE, 1/4... -
Page 13: Vc-19D Bottom Base Valves Assembly
OLYMPIC VC-19D Operator’s manual VC-19D Bottom valve assembly BOM ID PartNo Description BOM ID PartNo Description GEN-00093 SAFETY VALVE, 1/4, P.T. 6 bar PNE-00608 ASM-00461 VALVE 5/2 G1/8, 24V PNE-09923 ELBOW MALE ADAPTOR 4-1/4" PNE-00094 SILENCER, 1/4, PLASTIC, BLUE PNE-00082... -
Page 14: Vc-19D Projector
PNE-00023 MALE-FEMALE ELBOW 1/4" PNE-00204 OFF SET MALE TEE 4050 1/4 PNE-00619 MALE HOSE ADAPTER (TAPER) 9-1/4 PNE-09921 STRAIGHT MALE ADAPTOR 8-1/4" PNE-09925 ELBOW MALE ADAPTOR 8-1/4" VC-19D Top Valve with components BOM ID PartNo Description PNE-00096 CONNECTOR, Y, MALE, 1/8 - Ø4... -
Page 15: Vc-19D Pneumatic Diagram
VC-19D Pneumatic Diagram HOT STATION COLD STATION DESCRIPTION Ø50 Ø50 A PNE-09948 CYLINDER ACE Φ50Χ50 B ASM-00461 VALVE 5/2 1/8, 24V C PNE-09946 CYLINDER ACE 80x100 D ASM-00694 CYLINDER SI 160x240 E PNE-00725 VALVE 1/4 5/2 1Ρ F PNE-00074 NON-RETURN VALVE, 1/4, FEMALE G PNE-01163 CYLINDER ACE Φ100x100... -
Page 16: Vc-19D Electrical Diagram
TH1, TH2 ELE-00264 THERMOREGULATOR R38S N1, N2 ELE-00664 DRIVER 1W 230V ELE-00660 HEATING ELEMENT 230V 900W ASM-01228 VC-19D COOLING UNIT ELE-00407 LED BAR L2, L3 ELE-00663 PUNT 1 LED 32 ROSSO 1W 3,8VDC ELE-00331 BRIDGE 10A/1000V ELE-00336 CHINT NB1 63C10A... -
Page 17: Vc-19D Electronic Board Diagram
OLYMPIC VC-19D Operator’s manual VC-19D Electronic Board Diagram VC-19D Hot Station Temperature °C Cold Station Temperature °C M A D E G R E E C E Timer Timer Cooling Unit Head Lock Cooling Unit 24VAC SV10 FUSE 15A VC-19D... -
Page 18: Vc-19D Troubleshooting
OLYMPIC VC-19D Operator’s manual VC-19D Troubleshooting VC-19D Troubleshooting Solenoid L1 Solenoid L1 SV1 output SV1 output Pedal1 led on Pedal1 led on Fault at main Fault at main Pull-up cylinder Pull-up cylinder board board Ø40 is not Ø40 is not... - Page 19 OLYMPIC VC-19D Operator’s manual Notes...
