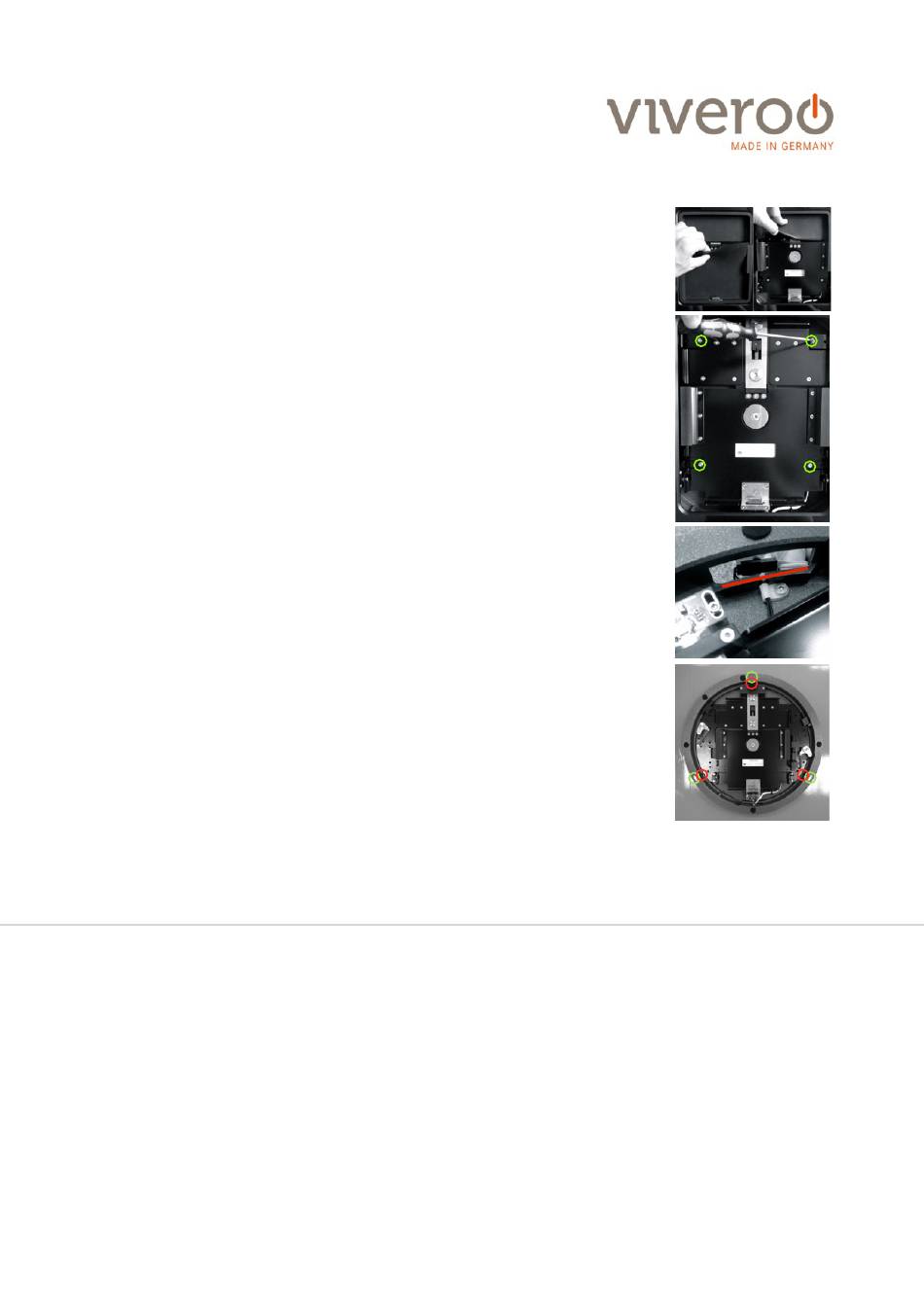

viveroo LoopDock User Manual page 5

Operation
Use the corresponding MountingSet to install your LoopDock. All MountingSets come with
specific mounting instructions.
Carefully remove the lower rubber pad first and then the upper
Step 1
rubber pad.
Proceed as follows:
- Open the iPad resting shelf by pressing the button down
completely. If the LoopDock is in a horizontal position, the shelf
must be gently lifted manually.
- Lift the lower rubber pad starting from the center of the LoopDock
(see photo). When the inlay has reached approximately a 45°
angle it can be carefully pulled out.
- Close the resting shelf and gently pull the upper rubber cushion
out.
Carefully remove the four screws on the cover (see photo - green).
Step 2
!! IMPORTANT: Hold cover tightly when removing the final screw to
avoid damage from falling down.
Carefully remove the cover by lifting it towards you and place the
Step 3
cover in a safe spot.
Plug the connecting cable from the MountingSet into the LoopDock
Step 4
plug contact. Make sure that the cable runs along the outer section
behind the barrier (see photo -
!! WARNING: Do not run the connecting cable through the inner
section of the LoopDock because it can easily block and damage the
rotating function.
The various fastening points for the LoopDock are easily identifiable.
Step 5
Using the screws included in the MountingSet, fasten the LoopDock
as follows:
- Photo Red:
- Photo Green: Furniture and door mounting
!! IMPORTANT: Please follow the instructions included with the
MountingSet.
Place the cover on the LoopDock. Important: The correct positioning
Step 6
is dictated by the button. Thread the cover into place there. Fasten
the cover with the four screws and put the rubber pads back in
place.
red line).
Inwall-Mounting with flush mounting box
