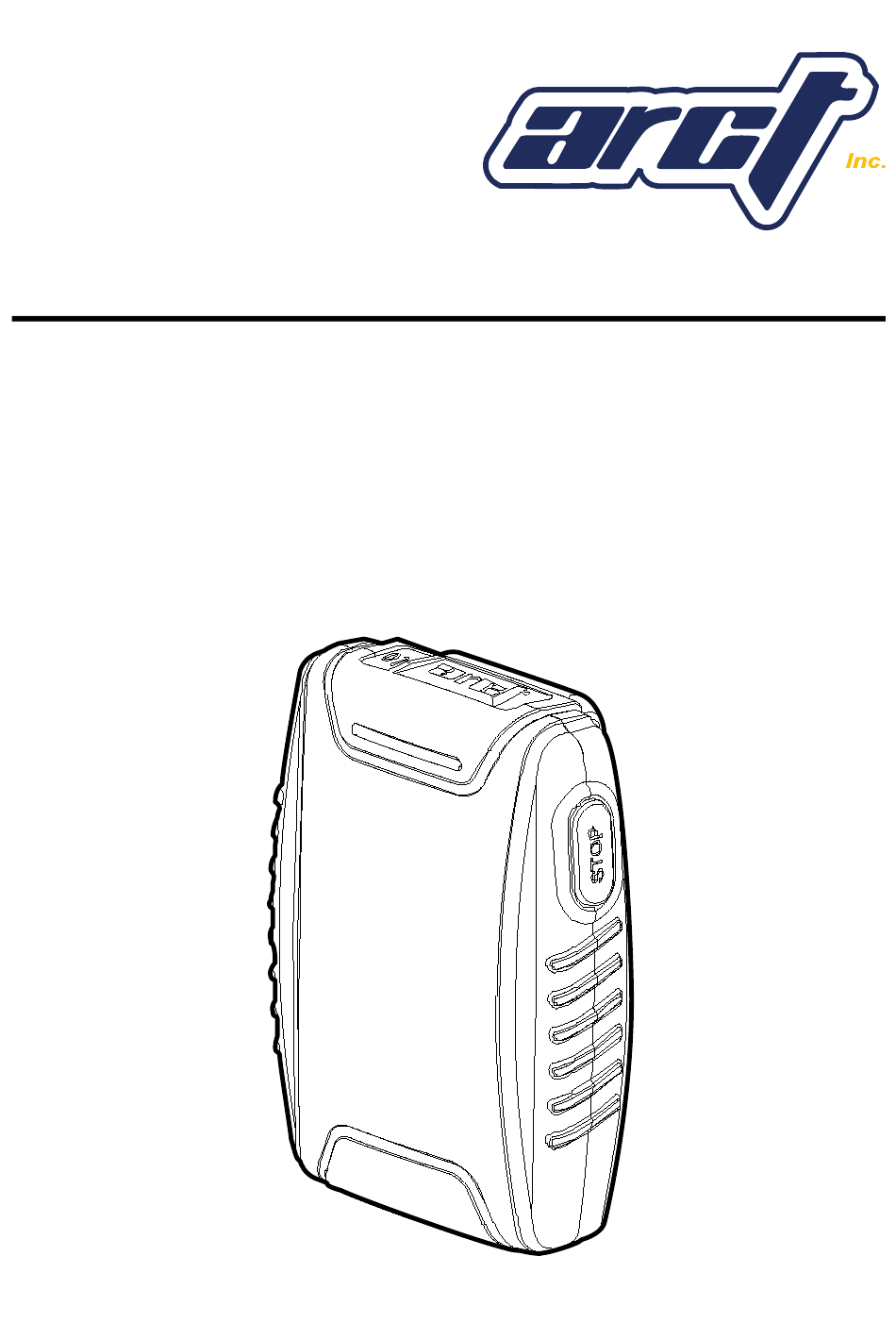

Page 1 Operating Instructions Staff pager Model No. SP-01...
Page 2: Table Of Contents
Contents: Read me first…..3 Warranty Policy…...3 Safety precautions….3 Precautions for use…..5 Confirmation of accessories…..6 Names of parts and their functions…..7 Using the staff pager…..8 Replace a battery pack….10 Troubleshoot….12 Specifications…..12...
Page 3: Read Me First
Before connecting, operating this product, please read these instructions completely, and save this manual for future use. Here by, we declare that this SP-01 is in compliance with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
Page 4 There is the risk of heat generation, fire, or explosion. Do not charge, use, or leave the SP-01 where temperatures are high such as a place close to fire or a place under the hot sun. The same applies to the used Ni-HM battery.
Page 5: Precautions For Use
Do not open or modify the main unit case. The Ni-HM battery of SP-01 is a consumable. The Ni-MH battery life, which varies with using conditions, is approximately a year as a guideline, and after a year or approximately over 500 times of recharging, the recharging capability becomes weak.
Page 6: Confirmation Of Accessories
Confirmation of Accessories: Before using, check the following accessories. In case some items are missing, contact your dealer. Main unit: Operating instructions(this document)
Page 7: Names Of Parts And Their Functions
Names of parts and their functions Main unit(front side) Name Details Indicator Blink Light green: Standby mode Light red: charging is under way. Light red and green: Battery is full charging. Blink Green & Red alternately: programming mode. Alarm Indicator Flashed red: get a paging signal.
Page 8: Using The Staff Pager
Main unit(back side) Name Details Charging Used for supply power to this unit and charging it. terminal Back clip Clip on a belt or vest. Using the staff pager: Remove the battery isolation film before using (as below)
Page 9 The pager can vibrate, beep, and flash the alarm lights Alarming The staff pager SP-01 will alarm a certain type and pattern depending on the alarm mode- A1, A2, or A3 of the ATX-01. That is selected from the ATX-01 keypad.
Page 10: Replace A Battery Pack
Press the “stop” button then put the staff pager into charger. Release the stop key until the pager into programming mode--the pager’s indicator LED – Green and Red LED will alternate blinking Replace a Battery Pack How to replace Ni-MH battery Screwed the back cover of the SP-01 pager...
Page 11 Take out the Ni-HM battery Replace a new Ni-HM battery When inserting the Ni-HM battery into the unit, make sure that the terminals are correctly directed. Close the back cover of SP-01 Put back the back cover of the SP-01, and fasten screws...
Page 12: Troubleshoot
If staff pager still cannot be charged, please contact our distributor or sales representative for assistance Pager does not receive Reset the SP-01, put the pager on the charger then take it out. It any page. will be reset. Make sure the Ni-HM battery is good.
