EXXOTEST CL550 User Manual

Multifunction digital controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

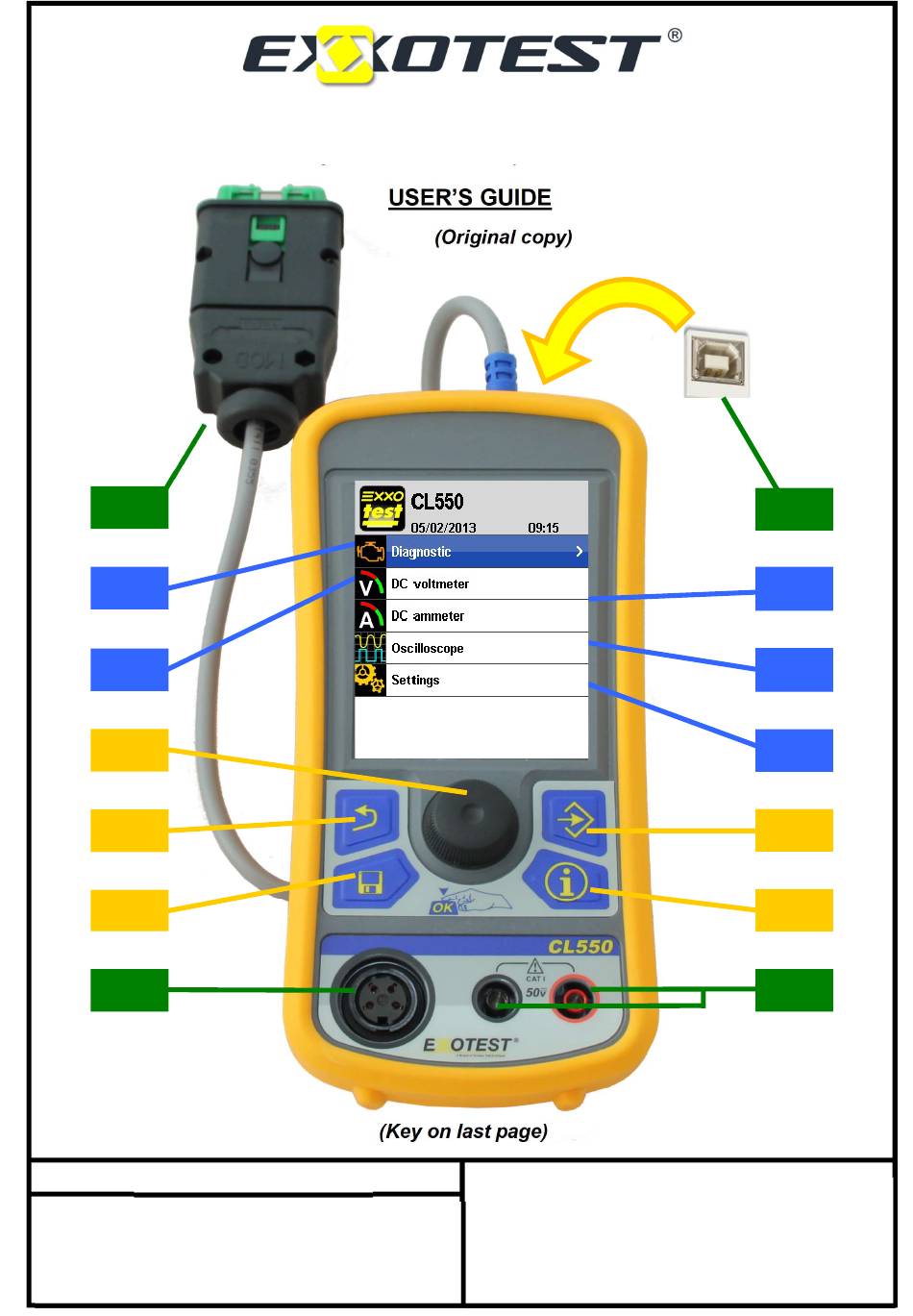

MULTIFUNCTION DIGITAL CONTROLLER CL550
For automobile diagnostics Oscilloscope, Voltmeter, EOBD reader
1
5
6
10
11
12
3
www.exxotest.com
WARRANTY: 2 years parts and labour
48h-repair on return to factory, shipping paid
by sender
Document N° 00297502-v1
USER'S GUIDE
(Original copy)
(Key on last page)
ANNECY ELECTRONIQUE S.A.S.
Parc Altaïs, 1 rue Callisto
74650 CHAVANOD
Tel: +33 (0)4 50 02 34 34
Fax: +33 (0)4 50 68 58 93
2
7
8
9
13
14
4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CL550 and is the answer not in the manual?

Questions and answers

Summary of Contents for EXXOTEST CL550

  • Page 1 MULTIFUNCTION DIGITAL CONTROLLER CL550 For automobile diagnostics Oscilloscope, Voltmeter, EOBD reader USER’S GUIDE (Original copy) (Key on last page) www.exxotest.com ANNECY ELECTRONIQUE S.A.S. Parc Altaïs, 1 rue Callisto WARRANTY: 2 years parts and labour 74650 CHAVANOD 48h-repair on return to factory, shipping paid...
  • Page 2  Use the CL550 in full respect of the instructions given in this manual, to avoid damaging its built-in protection.  Do not use the CL550 if the device or its measuring cords are damaged, or if the device does not seem to be working correctly.

  • Page 3: Table Of Contents

    CONTENTS GENERAL PRESENTATION ..............4 CONNECTING THE DEVICE ..................... 4 CONTENTS OF CL550 CASE ................... 4 AVAILABLE OPTIONS ....................... 5 MAIN SCREEN ..................6 CONTROL BUTTONS......................7 DIAGNOSTIC FUNCTION ..............7 DC VOLTMETER FUNCTION ............... 10 DC AMMETER FUNCTION ..............11 OSCILLOSCOPE FUNCTION...............

  • Page 4: General Presentation

    The EXXOTEST® CL550 digital controller can be used in different ways: - EOBD reader: In this case, connect the CL550 to the diagnostic port of the vehicle inspected. This mode uses the device's EOBD connection (item A). - Voltmeter, Oscilloscope: The voltage readings require the use of one or both of the measuring wires provided (item B).

  • Page 5: Available Options

    USB cable: connection of CL550 to computer (for printing, updates, etc.). Once connected to the vehicle (diagnostic port or battery), or to the computer (USB port), the CL550 emits an audible signal and displays the home screen: The device is ready for use AVAILABLE OPTIONS ...

  • Page 6: Main Screen

    MAIN SCREEN When the CL550 device is powered up, it emits an audible signal and the home screen is displayed. The first line Diagnostic is selected by default (see illustration). Use the centre button (item 10) to browse the device menus.

  • Page 7: Control Buttons

    CONTROL BUTTONS Back: Settings: Closes a menu or quits the Shortcut to Settings menus (general current mode. or oscilloscope). Selector button: Rotate to change the selection Press to confirm the selection Inactive buttons DIAGNOSTIC FUNCTION The diagnostic function is selected by default when the device is powered-up. Press the centre button to enter this mode:...
  • Page 8 If the following screen is displayed, several situations are possible:  Either the EOBD port is not connected, or The vehicle  (or equipment) connected does not use the EOBD standard, or  The vehicle ignition is off. Once the device is connected, three choices are available: - Read parameters: The parameters returned by the vehicle are displayed;...
  • Page 9  Read fault codes with presence of faults: Number of fault code Description of fault code Full description of the fault code selected Fault code level: transient, awaiting confirmation or confirmed. - Erase fault codes: Select this line and confirm to erase fault codes, confirmation is shown in the illustration.

  • Page 10: Dc Voltmeter Function

    DC VOLTMETER FUNCTION Select the DC Voltmeter mode on the main screen (rotate the centre button to reach it) and confirm (press the centre button) to be presented with two possibilities: 1 channel or 2 channels Use the red wire to measure a single voltage in relation to the battery Earth (1 channel) or the red and black wires to measure two distinct voltages in relation to the battery Earth (2 channels).

  • Page 11: Dc Ammeter Function

    (depending on the ammeter clamp used and the intensity measured): 1 mV / A or 10 mV / A.  The DC Ammeter mode requires the use of an ammeter clamp that is not supplied with the CL550 device (see options on page 5).

  • Page 12: Oscilloscope Function

    OSCILLOSCOPE FUNCTION Select the Oscilloscope mode on the main screen (rotate the centre button to reach it) and confirm (press the centre button) to be presented with two traces. The configuration details are indicated at the top and bottom of the oscilloscope: 1.

  • Page 13: Configuring Settings

    Press button 13 to view the oscilloscope settings menu (press again to close the menu). Use the centre button 10 to select and confirm a setting. Use button 11 to return to the previous screen. Automatic setting: the CL550 automatically manages the trace display. Timebase: serves to define the time scale for traces (possible values from 100 µs to 10 sec).

  • Page 14: Selecting Measurements, Pause Function, Examples

    SELECTING MEASUREMENTS, PAUSE FUNCTION, EXAMPLES Select and confirm the menu choice Measurements in the previous screen and confirm one of the 4 lines proposed, then you will be able to: Select the channel for which you wish to display the measurement, Select a measurement amongst those proposed.

  • Page 15: Settings Menu

    SETTINGS MENU From the home menu: Rotate the centre button to move the cursor and make your selection. Press the same button to confirm your settings.

  • Page 16: Use With A Computer

    USE WITH A COMPUTER INSTALLING THE DRIVER The CD-Rom provided with the CL550 device contains 3 executable files. But before connecting the device to a PC using the USB cable supplied, you need to install the device driver. To do so, double-click the file 'Exxotest_driver_Setup..exe.

  • Page 17: Installing The Usb Capture Software

    The CD-Rom supplied with the CL550 device contains the following program USBCapture_Setup_..exe Double-click the .exe file and complete the installation steps. When installation is complete, run the software. When the CL550 is connected using the USB cable, the following windows appear: - The magnifying tool to the right of...
  • Page 18 - Click this icon to refresh the preview. Important note: for the oscilloscope windows, you also need to press one of the CL550 buttons! - Used to save the screen display as an image. - Continuously refreshes the screen preview of the CL550 (in this case, it is not possible to save the image).

  • Page 19: Installing The Usb Update Software

    The CD-Rom supplied with the CL550 device contains the following program Setup_USBMaj_DIDAC.exe Double-click the .exe file and complete the installation steps. When installation is complete, run the software. When the CL550 is connected using the USB cable, the following windows appear: This program updates your CL550 device...

  • Page 20: Technical Specifications

    50 V DC measurement terminals Reference temperature 23°C +/-2°C Operating temperature From -20°C to +70°C Storage temperature From -30°C to +80°C BATTERY VOLTAGE MEASUREMENT (CL550 power voltage) Reading Accurate from Range Impedance resolution -20°C to +70°C 0 to 36 V 0.1 V...
  • Page 21 VOLTAGE MEASUREMENT with black and red terminals (item on cover page), in relation to power supply Earth Range Reading Accurate from Impedance (full scale) resolution -20 to 70°C -15 V to +15 V 0.01 V +/-0.25 V 2 MΩ -50 V to +50 V 0.01 V +/-0.25 V 2 MΩ...
  • Page 22 EOBD READING II ISO 9141-1 (ISO) Physical connections ISO14230-1(KWP2000) ISO15765-2 (DiagOnCan) SAE J1979 (April 2002)/ISO 15031-5 (April 2002) Communication protocols ISO 9141-2 (ISO) and OBD modes ISO14230-1(KWP2000) ISO15765-2 (DiagOnCan) Known fault codes SAE J2012 / ISO 15031-6 OBC connector SAE J1962 / ISO 15031-3 PC function Update via USB Measurement units...

  • Page 23: 10. Ce Declaration Of Conformity

    Declares that the following product: Brand Model Description EXXOTEST® CL550 Multifunction digital controller Has been manufactured in accordance with the requirements of  EMC Directive 2004/108/EC - 15/12/2004 and satisfies the requirements of the following standard:  NF EN 61326-1 dated 07/1997 +A1 of 10/1998 +A2 of 09/2001, Electrical measurement, control and laboratory equipment, EMC-related requirements.

  • Page 24: Description

    Ammeter mode: intensity measurements using an ammeter clamp (1 mV/A or 10 mV/A) Dual-trace Oscilloscope mode Settings menu on CL550 Rotate the centre button to browse the choices on the screen and press to confirm. The Back button serves to close a menu or a window, or to quit the current mode.
