MS3690 (BT) Lightweight Data Terminal Quick Guide
Notice
1) A standard packing includes a terminal, a USB cable and a CD (containing software
and electronical manuals). Optional accessory includes a Bluetooth USB adapter
BA2110 and an AC/DC adaptor for battery charge.
2) Effective communication range: The communication distance is 30 meters under the
condition of temperature at 27 ℃, sunny day, and visibility of 5 kilometers. Natural
surroundings significantly affect the communication distance in practice. The distance
drops quickly in the rainy, high-humidity, or heavy haze day; radio interference also
shortens the communication distance.
3) Bluetooth uses the 2.4 GHz ISM frequency band. The WLAN also uses the same one.
So the coexistence of the terminal and WLAN may cause a strong decline in the
effective communication range.
4) The terminal provides a variety of wireless communication modes, and supports batch
data mode and U disk mode. It is suggested to read the user manual in details before
use.

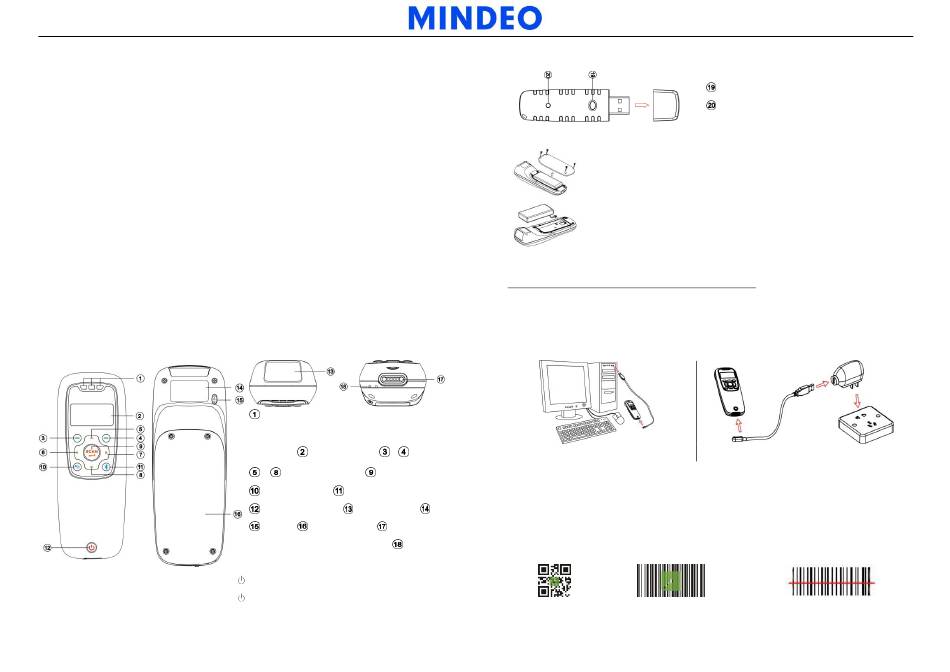

Parts of the terminal
Power on the terminal: Press the power key
Power off the terminal: Press the power key
Note: 1. More details refer to User Manual. 2. For better readability, please print this document with laser printer. 3. Version: MS3690(BT)_QG_EN_V1.1.
Blue LED (Bluetooth power); Green LED
(Decode success); Red LED (Charging
~
indicator) OLED screen Soft keys
~
Navigation keys Scan/Select key
Return key Bluetooth on/off
Power/Sleep key Scan window
Beeper Battery cover Magnetic USB
port/Battery charging port Hook
neck/wrist strap
for two seconds.
for two seconds.
Parts of BA2110
Replace battery
1) Remove the 4 screws from the battery cover (one at a time).
2) Load the battery while sliding it with the connection on the
3) Place back the battery cover, and screw in the 4 screws to
Charge battery
1) Please charge the battery before the first time of use. The charging indicator (red LED)
turns on when the charging is in process. When the charging process completes, the red
LED turns off.
2) The terminal uses a 1900 mAh Lithium-ion battery. The charging time is 4 hours for fully
charged with charging current of 500 mA.
Charge battery by a PC
Enter barcode scan status to scan
Power on the terminal, and then press Scan Key once. When scanning the barcode, please
key
adjust the terminal and the barcode in a certain distance, and make the green LED indicator
Label
locate in the core of the barcode or the laser line crosses the barcode. If read successfully,
the barcode will be displayed on the screen.
for
Reset/Firmware upgrade key
Power/Data transmission LED (Green)
battery pack on the terminal body.
tighten the terminal and the battery cover.
Charge battery by an AC/DC adapter
