Summary of Contents for Vauth-Sagel HSA power move

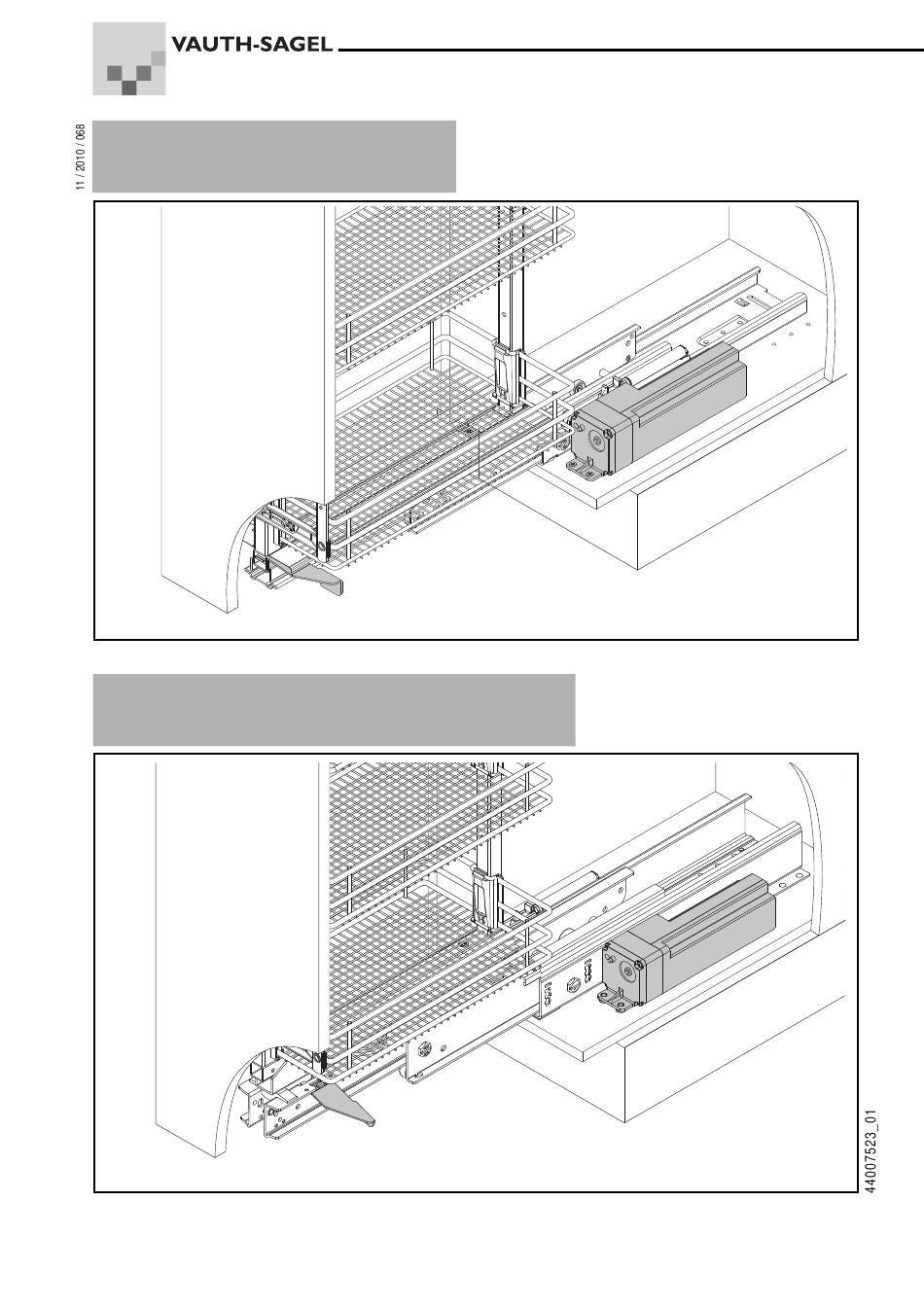

- Page 1 power move ® Operating and installation manual rotary power move ® Important document for the end customer...
-
Page 2: Table Of Contents
Index Page 1. GENERAL EXPLANATIONS 1.1 Introduction 1.2 Proper use 1.3 Safety instructions 2. EQUIPMENT 3. FEATURES 4. INSTALLATION HSA and HSA rotary 5. ELECTRICAL CONNECTIONS 6. FUNCTIONAL DESCRIPTION-OPERATION 7. SYMBOLS USED 8. TYPE PLATES 9. TECHNICAL DATA 10. DIAGNOSING PROBLEMS/TROUBLESHOOTING 11-12 11. -
Page 3: General Explanations
It may only be used in accordance with the operating and installation instructions, in combination with authorised Vauth-Sagel products and the original system components. We do not accept any liability and warranty for use deviating from the proper use. -
Page 4: Equipment
EQUIPMENT Pos. Component Drive unit Rubber base front (2x) Rubber base rear (1x) Spax countersunk screw 5 x 20 (3 x) Self-locking hexagon nut M5 (1 x) Nut holder Ejection lever Countersunk screw M5 x 10 (1x) Mains adapter bracket Spax countersunk screw 4 x 16 (2 x) Mains adapter, cable length 1.5 m (output side) Mains cable, length 2 m... -
Page 5: Features
FEATURES ® The HSA power move has been developed to support the opening of Vauth-Sagel tall cabinet pull-outs and has the following features: = Easy opening of the tall cabinet thanks to electromotive support = Drive control dependent on load... - Page 6 INSTALLATION HSA Ejection lever and drive unit 20 mm Ø = 5 x 20 mm...
- Page 7 INSTALLATION HSA rotary 20 mm Ø = 5 x 20 mm...
-
Page 8: Electrical Connections
ELECTRICAL CONNECTIONS (HSA and HSA rotary) Note: Only insert the mains plug after all the components have been installed correctly and all the other connections have been set up. The system may only be connected to the mains voltage specified in section 9. -
Page 9: Functional Description-Operation
FUNCTIONAL DESCRIPTION-OPERATION The trigger pin of the drive unit holds the pull-out or the cabinet front in a position in front of the corpus that can be set using a cross-slot screwdriver. Pressing or pulling the front actuates the trigger pin and triggers the opening impulse. The spindle on the drive unit moves the pull-out out with a controlled movement into the opened position and moves straight back into the final position. -
Page 10: Symbols Used
SYMBOLS USED Indication of danger Heed the operating instructions For use indoors Protective class II, protective insulation Protective class III, safety extra-low voltage Only operate the system in intermittent mode! Observe a break of at least 10 minutes after a maximum AB 1 min/10 min of 1 minute permanent operation! With shorter operating times, the intermittent times can be reduced in the same ratio. -
Page 11: Diagnosing Problems/Troubleshooting
DIAGNOSING PROBLEMS/TROUBLESHOOTING Problem Possible cause Remedy The pull-out does not open, Power failure Check the fuses and consult an electrician if neither when pressed nor necessary. pulled. The switchable socket is switched off Check whether the switchable socket is switched Plugs are not inserted correctly. -
Page 12: Diagnosing Problems/Troubleshooting
DIAGNOSING PROBLEMS/TROUBLESHOOTING Problem Possible cause Remedy The pull-out is not dampened The height setting of the plastic part Set the height of the plastic part on the inner when it closes. on the inner guide rail’s door link guide rail’s door link bracket according to the bracket is incorrect. -
Page 13: Cleaning And Maintenance
Sketches, graphs and drawings are not to scale. Publisher: Vauth-Sagel Systemtechnik GmbH & Co. · Neue Straße 27 · D-33034 Brakel-Erkeln · Tel. +49 (0) 5272 601-01 · Fax +49 (0) 5272 601-193 Copies, even extracts, may only be made following agreement with the publisher... - Page 14 Vauth-Sagel Neue Straße 27 · D-33034 Brakel-Erkeln · Telefon: +49 5272 601-01 · Fax: +49 5272 601-193 · Internet: www.vauth-sagel.de...
