Operating instructions

DWQS 6/7/9 - DIQS 10
Range hood

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DWQS 6 and is the answer not in the manual?

Questions and answers

Related Manuals for ZUG DWQS 6

Summary of Contents for ZUG DWQS 6

  • Page 1: Operating Instructions

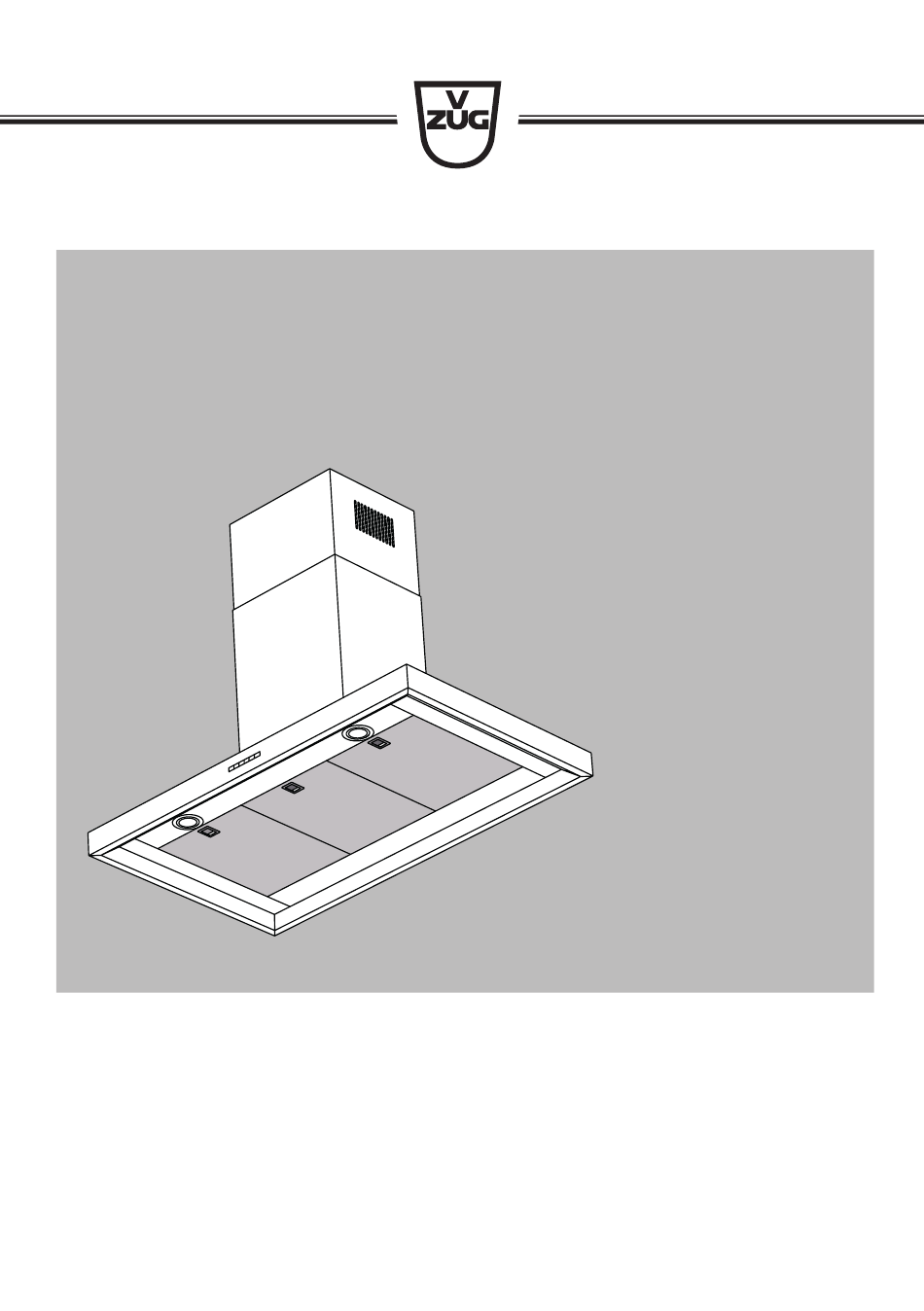

    Operating instructions DWQS 6/7/9 - DIQS 10 Range hood...
  • Page 2 These operating instructions apply to: Type Product Size Type Product Size family system family system DWQS6 62011 DIQS10 63011 DWQS7 62012 DWQS9 62013 Variations depending on the model are noted in the text. © V-ZUG AG, CH-6301 Zug, 2016...

  • Page 3: Table Of Contents

    Contents  2 1 Safety precautions  5 Symbols used ..................... 5 General safety precautions .............. 6 Before using for the first time .............. 7 Correct use.................... 7 Children in the home ................. 7 Note on use.................... 8 2 Disposal  10 3 Appliance description  11 Appliance description................ 11 Extraction model..................
  • Page 4 9 Index  30 10 Notes  32 11 Service & Support  35...

  • Page 5: Safety Precautions

    Safety precautions Symbols used Denotes important safety precautions. Failure to observe said precautions can result in injury or in dam- age to the appliance or fittings! Information and precautions that should be observed. Information on disposal Information about the operating instructions ▸...

  • Page 6: General Safety Precautions

    1 Safety precautions General safety precautions ▪ Read the operating instructions before using the appliance for the first time! ▪ This appliance can be used by children aged 8 and above and by persons with reduced physical, sensory or mental cap- abilities, or lack of experience and/or knowledge, provided they are supervised or have been instructed on the safe use of the appliance and have understood the hazards involved.

  • Page 7: Before Using For The First Time

    1 Safety precautions Before using for the first time ▪ The appliance must be installed and connected to the electricity supply in accordance with the separate installation instructions. Have a qualified fitter/ electrician carry out the necessary work. ▪ Dispose of the packaging material in accordance with local regulations. Correct use ▪...

  • Page 8: Note On Use

    1 Safety precautions Note on use ▪ If the appliance is visibly damaged, do not use it. Contact our Customer Services. ▪ If the appliance is not functioning properly, disconnect it from the power supply immediately. ▪ If the mains cable of the appliance is damaged, it must be replaced by Cus- tomer Services in order to avoid hazard.
  • Page 9 1 Safety precautions ▪ When carrying out maintenance work on the appliance, including replacing the light bulb, cut off the electricity supply to the appliance: remove the screw fuse from the holder or switch the circuit breaker off, or disconnect from the mains supply.

  • Page 10: Disposal

    Disposal Packaging ▪ All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS)) are marked and should, if possible, be collected for recycling and disposed of in an environmentally friendly way. Disconnection ▪ Disconnect the appliance from the mains. With a fixed appliance, this is to be carried out by a qualified electrician! Safety ▪...

  • Page 11: Appliance Description

    Appliance description Appliance description The appliance is designed for use in the home for extracting cooking fumes and smells from above the cooking surface. The model can be used to extract or recirculate air. Extraction model A fan draws cooking fumes and smells from above the cooking area. The metal grease filters clean the extracted air, which is passed through a connect- ing pipe fitted with an integrated non-return valve and through the air duct to the outside.

  • Page 12: Equipment

    3 Appliance description Equipment ▪ 1 extractor fan with 4 power levels: ▪ 1 = low, 2 = medium, 3 = high, and intensive level. ▪ Power levels 1–3 are suitable for continuous operation. ▪ The intensive level is used for short bursts of intensive extraction of cooking fumes and smells, e.g.

  • Page 13: Construction

    3 Appliance description Construction 1 Operating and display elements 2 Metal grease filter 3 Illumination 4 Return air in recirculation model If your appliance has lateral ventilation slits (see no. 4 in the figure) then it is a recirculation model.

  • Page 14: Operating And Display Elements

    3 Appliance description Operating and display elements Switch illumination on/off Switch off Power level 1 Power level 2 Power level 3 and intensive level After-running time Flashing Clean metal grease filters Flashing Reactivate/replace long-life activated charcoal filter Depending on the model and features, the specification of the appli- ance may partly differ in individual details from the standard spe- cification described.

  • Page 15: Operating The Appliance

    Operating the appliance Using for the first time Configuring the appliance The model can be used to extract or recirculate air. The appliance is set up as a recirculation hood ex-factory. With this setting, the service life of the long-life activated charcoal filter is 120 operating hours.

  • Page 16: Operation

    4 Operating the appliance Checking the settings ▸ Switch the appliance off. ▸ Depress the button for three seconds. – If the buttons flash, the appliance is set up as an extraction model. – If the and buttons flash, the appliance is set up as a recirculation model.

  • Page 17: Intensive Level

    4 Operating the appliance Intensive level To select the intensive level, the appliance has to be switched on. ▸ Hold the button depressed for two seconds. – The button flashes. After five minutes, the appliance switches back to power level ▸...

  • Page 18: Saturation Indicator

    4 Operating the appliance Saturation indicator Saturation indicator for metal grease filters display flashes after 20 operating hours. The saturation level has been reached and the metal grease filters must be cleaned. Saturation indicator for the long-life activated charcoal filter button flashes after 120 operating hours.

  • Page 19: Care And Maintenance

    Care and maintenance Cleaning the housing Take care that no water gets into the housing of the appliance! If water gets into the housing, it can cause damage. Do not use abrasive cleaners, scouring pads, steel wool, etc. for cleaning, as they can damage the surface. Remove the screw fuse or switch off the circuit breaker.
  • Page 20 5 Care and maintenance Removing the metal grease filters ▸ Push the grip 2 on the metal grease filter 1 back. ▸ Carefully pull the metal grease filter down and out of the fixture. Do not damage the grease filter.
  • Page 21 5 Care and maintenance Cleaning ▸ Clean the metal grease filters in the dishwasher. ▸ Select an «intensive» or «heavy» wash programme with a warm prewash. Cleaning may cause the metal grease filters to become discoloured. However, this will not affect the functioning of the filters in any way. If no dishwasher is available: ▸...

  • Page 22: Cleaning The Long-Life Activated Charcoal Filter

    5 Care and maintenance Cleaning the long-life activated charcoal filter Long-life activated charcoal filters are only used in the recirculation model. The long-life activated charcoal filter can be cleaned and reactivated. The long- life activated charcoal filter should be cleaned bimonthly with normal use or whenever the indicator light flashes.
  • Page 23 5 Care and maintenance Removing the long-life activated charcoal filter Switch off the circuit breaker or remove the screw fuse. ▸ Cover over the hob to protect it from getting damaged. ▸ Pull the grip 2 on the metal grease filter 1 down.

  • Page 24: Replacing The Leds

    5 Care and maintenance Installing the long-life activated charcoal filter ▸ Insert the long-life activated char- coal filter 4 into the metal holder 3. ▸ Insert the metal holder 3 into the housing 6 and close the safety catch 5. ▸...

  • Page 25: Trouble-Shooting

    Trouble-shooting What to do if … … the illumination is not working Possible cause Solution ▪ Fuse or automatic circuit ▸ Replace the fuse. breaker for electrical in- ▸ Reset the automatic circuit breaker. stallations in the home is defective. ▪...
  • Page 26 6 Trouble-shooting … Saturation indicator illuminates Possible cause Solution ▪ Metal grease filter is dirty. ▸ Clean the metal grease filters. ▸ After cleaning, hold the button de- pressed for at least five seconds. – The display goes out. ▪ The long-life activated ▸...

  • Page 27: Accessories And Spare Parts

    Accessories and spare parts Please give model number of the appliance and exact designation of the ac- cessory or spare part when ordering parts. Metal grease filter Long-life activated charcoal filter...

  • Page 28: Technical Data

    ▸ Remove the metal grease filters. – The identification plate is located on the inside of the appliance. Product fiche Description Abbrevi- Unit Value ations Brand V-ZUG Ltd Model identifier 62011/63011 Annual energy consump- kWh/a 46.5 / 47.8 hood tion Energy Efficiency Index 54.7 / 54.8...
  • Page 29 8 Technical data Airborne acoustical A- 46 / 48 weighted Sound Power Emissions at minimum speed Airborne acoustical A- 62 / 63 weighted Sound Power Emissions at maximum speed Airborne acoustical A- 67 / 68 boost weighted Sound Power Emissions at intensive or boost setting Measured power con- - / -...
  • Page 30 Index Removing.......... 23 Replacing.......... 22 Accessories ..........27 Saturation indicator .... 15, 18 After-running time........17 Appliance description ......11 Malfunction Illumination not working .... 25 Care............19 Metal grease filter Children in the home........7 Saturation indicator ...... 18 Cleaning Model number ..........
  • Page 31 9 Index Saturation indicator illuminates ..... 26 Service & Support........35 Service agreement........35 Settings Checking.......... 16 Spare parts ..........27 Symbols ............5 Technical data .......... 28 Trouble-shooting ........25 Type............... 2 Validity............2 What to do if The appliance is not extracting enough air ........
  • Page 32 Notes...
  • Page 35 Your repair order Call the free service number 0800 850 850 to contact your nearest V-ZUG service centre. You can arrange an onsite visit by us by phone if you wish. General queries, accessories and service agreement V-ZUG will be happy to help you with any general administrative or technical queries, to accept your orders for accessories and spare parts and to inform you about our progress- ive service agreements.

  • Page 36: Quick Instructions

    After-running time Flashing Clean metal grease filters Flashing Reactivate/replace long-life activated charcoal filter 1012210-R04 V-ZUG Ltd, Industriestrasse 66, CH-6301 Zug Tel. +41 58 767 67 67, Fax +41 58 767 61 61 info@vzug.com, www.vzug.com Service Centre: Tel. 0800 850 850...
