Delta Flux Impianti srl
Sede operativa:
Via per Airuno, 23 – 23883 BRIVIO (LC) Italy
Tel + 39 039-532.13.86 – Fax +39 039-532.05.26
deltaflux@deltaflux.it www.deltaflux.it
P. IVA 02554110136

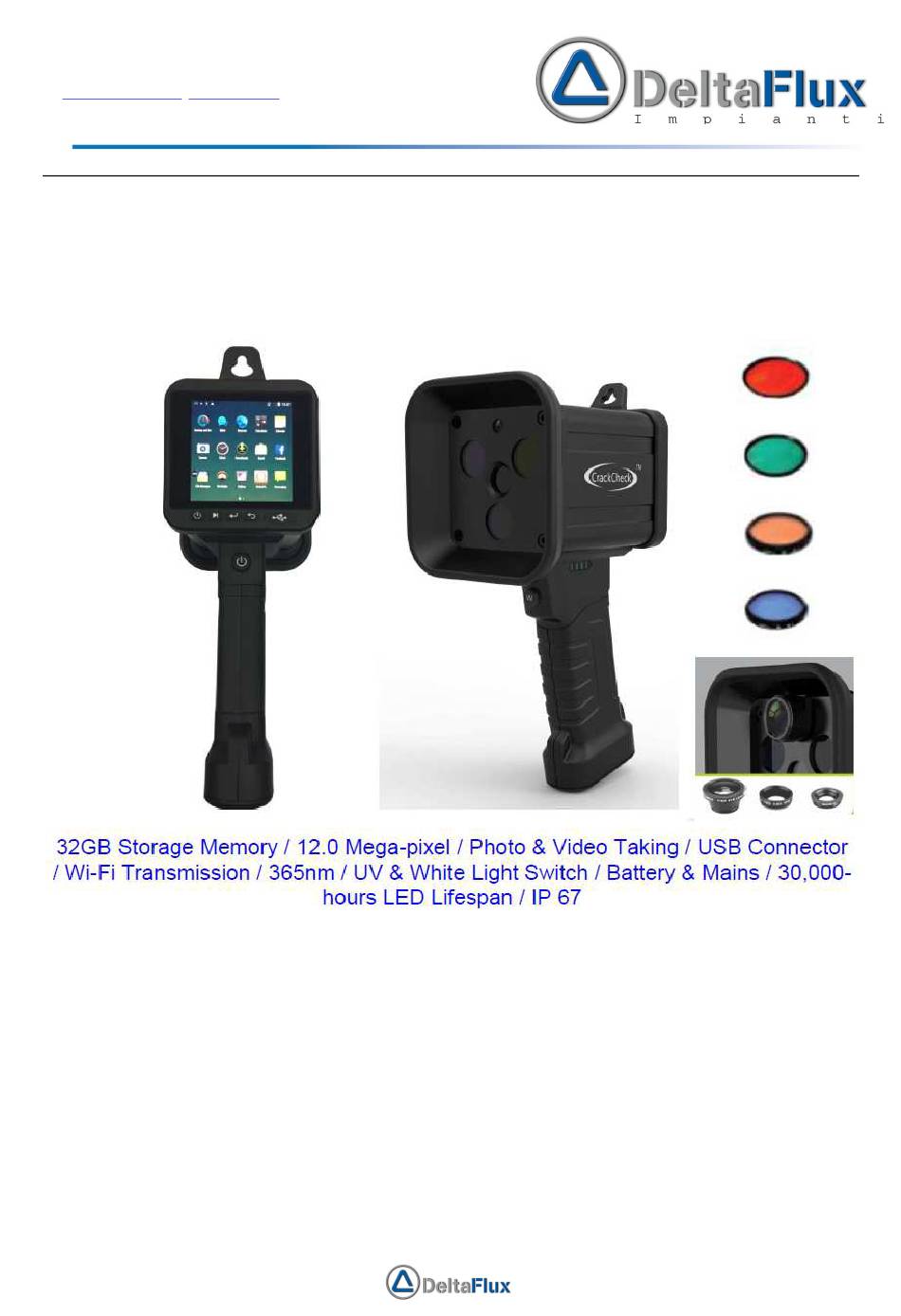

DF L PX C PRO lamp with Camera is a hand-held UV LED Lamp with white light and UV
light emissions as per to ASTM E3022.
Lamp has 12.8 Mega-Pixel HD Camera with UV filter and is a good mate to take photos or
videos for the cracks. The intelligen operation system is Android 4.4 and the data can be
transmitted via Built-in Wi-Fi or Micro-USB.
Professional UV LED lamp, with 3 UV LEDs and a white light LED. Each UV LED is
covered with black light filter. With interchangeable Lens and Filters.
Can be powered both by electrical mains and built-in batteries with battery indicator.
Operation Manual
DF L PX C PRO
.
Advertisement
Table of Contents
Summary of Contents for Delta Flux DF L PX C PRO
- Page 1 Operation Manual DF L PX C PRO DF L PX C PRO lamp with Camera is a hand-held UV LED Lamp with white light and UV light emissions as per to ASTM E3022. Lamp has 12.8 Mega-Pixel HD Camera with UV filter and is a good mate to take photos or videos for the cracks.
-
Page 2: Unpacking The Equipment
1. UNPACKING THE EQUIPMENT Check whether the lamp is damage or not during transport. In the event of external damage to the product, contact the company responsible for transport and your supplier immediately before use. Make sure that no part is missing. If some of the part is missing, please contact your supplier for help as soon as possible. - Page 3 4. OPERATING INSTRUCTIONS UV LED lamp can be powered both by electrical mains and built-in batteries. MAINS OPERATED *Mains voltage: 100-240V 50/60 Hz *Output voltage: 12V DC *Effect: 12W Mounting: 1. Mount the lamp in a dry location 2. Connect mains cable to mains outlet BATTERY OPERATED The battery is 18650 Li-ion battery.
- Page 4 There is also a mini USB on the rear of the lamp. Press the button on the rear of the handle to take photos. Interchangeable Lens and Filters: meet demanding and specific photographing needs. Screw the lens on the front of the DF L PX C PRO lamp.
-
Page 5: Technical Data
5. TECHNICAL DATA Application Data Model DF L PX C PRO 3 UV LEDs, 1 White light LED UV-A Irradiation (at 380 mm) With blackight filter: ~4500 µW/cm Visible light < 5 Lux Peak wavelenght 365-370 nm Wavelenght Drift (at elevated temperature) ≤... -
Page 6: Warning And Safety
6. WARNING AND SAFETY Warning! General UV Safety Information Unprotected and prolonged exposure to any form of UV light, including UV-A, can be resul in skin injures, cataracts and possibility cancer. Even brief exposure can be hazardous if the UV intensity is very high. Thus, it is advised to always shield the eyes/face. For maximum protection and whnever possible, hands and arms should be covered with long sleeves and gloves of a non-fluorescent material. - Page 7 Ultraviolet radiation can cause damage to skin and eyes. See the following recommendations: Do not look directly into the UV-LED light beam Never use optical focus devices, such as magnifying glasses, tele-scopes or microscopes, to look into the light beam. In this context, corrective glasses are not included in focusing optical devices.
-
Page 8: Warranty
Warranty for repaired UV LED lamps The warranty for UV LED lamps repaired by Delta Flux is 12 months from date it is shipped, only for repareid spare parts. Freight *For products not under warranty, it is the responsibility of the customer to pay for the freight costs to and from Delta Flux. -
Page 9: Declaration Of Conformity
ASTM E3022, ASTM E14147, ANSI/NCSL Z540-1-1994, Rolls Royce: RRES 90061. Type of equipment: electrical equipment for control Brand name or trade mark: CrackCheck Type destination: Phoenix series led uv lamp Manufacturer: CHiNDT Distributor: Delta Flux Standards Test report issued by Regarding EN61010-1 NTEK...
