Summary of Contents for Cobra CSP6

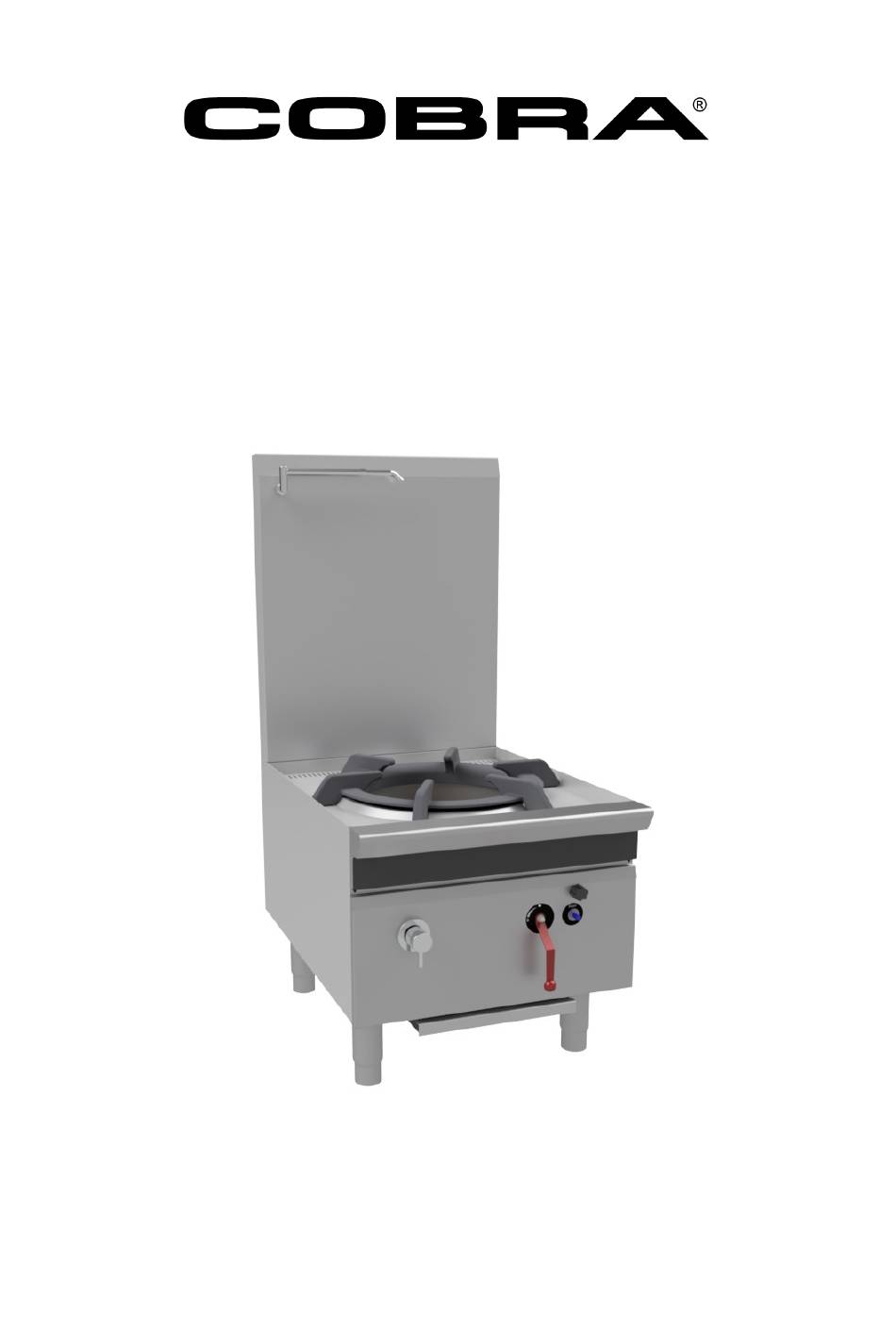

- Page 1 G a s S t o c k P o t M o d e l C S P 6 I N S T A L L A T I O N A N D O P E R A T I O N M A N U A L 242360-1...
- Page 2 Moffat Limited Rolleston 7675 New Zealand AUSTRALIA Moffat Pty Limited E.Mail: vsales@moffat.com.au Main Office: (tel): +61 (03) 9518 3888 (fax): +61 (03 9518 3833 Service: (tel): 1800 622 216 Spares: (tel): 1800 337 963 Customer Service: (tel): 1800 335 315 (fax): 1800 350 281 CANADA Serve Canada...
- Page 3 CSP6 - Gas Stock Pot. Models Covered in this Specification General Assembly Gas Connection Water Supply Requirements Water Drainage Gas Supply Requirements Dimensions Installation Requirements Unpacking Location Clearances Gas Connection Water Connection Drainage Connection Commissioning Operation Guide Description of Controls...
- Page 4 We are confident that you will be delighted with your COBRA Gas Stock Pot and it will become a most valued appliance in your commercial kitchen. To ensure you receive the utmost benefit from your new COBRA appliance, there are two important things you can do.
- Page 5 A cold water supply can be connected to the CSP6 GAS Stock Pot. water inlet connection (R " BSP), refer to Specification Drawings for water inlet positions for the various options. The Gas Stock Pot is only available as a single Water connection should be plumbed in, in burner model.
- Page 6 - Australia: Input Rating (N.H.G.C.) 70 MJ/hr 70 MJ/hr Supply Pressure 1.13 - 3.40 kPa 2.75 - 4.50 kPa Burner Operating Pressure (*) 1.0 kPa 2.65 kPa Gas Connection ¾” BSP Male - New Zealand: Input Rating (N.H.G.C.) 70 MJ/hr 70 MJ/hr Supply Pressure 1.13 - 3.40 kPa...
-
Page 7: Overall Dimensions
Overall Dimensions 1230mm (depending on Leg Adjustment). 600mm. 800mm. 600mm. 180mm (Adjustable). Suits up to 150ltrs. - Page 8 LPG / Butane 19m³/hr min. 3. The appliance must be installed on a fire proof Cobra Gas Stock Pots are designed to provide base. years of satisfactory service and correct installation 4. Position the appliance in its approximate is essential to achieve the best performance, working position.
- Page 9 QUALIFIED SERVICE PERSON. NOTE: A Manual Isolation Valve must be fitted to 1. Cobra Stock Pots do not require an electrical individual appliance supply line. connection, they function totally on the gas 5. Locate the appliance into its final operating supply only.
- Page 10 NOTE: The following commissioning checks must be carried Water connection shall be installed in accordance out before the Gas Stock Pot is handed over for use, with local water regulations in force and the to ensure the unit operates correctly and the applicable standard / code, e.g.
- Page 11 Water Valve Gas Safety Main Burner Valve Gas Valve 1. Cobra Gas Stock Pots have been designed to provide simplicity of operation and 100% safety protection. 2. Improper operation is almost impossible, however bad operation practices can produce a poor quality product. To use this Gas Stock Pot correctly, please read the following sections carefully;...
- Page 12 4. Pull out the front part of the arm to extend the arm and tighten the adjuster. 1. Turn the Main Burner Gas Valve anti-clockwise to 5. On the Control Panel, Water Valve the ‘Off’ position, the Main Burner will extinguish. turn the Water Valve anti 2.
- Page 13 4. Dry the control panel thoroughly using a dry clean cloth. 5. At the end of each day or at end of each shift, clean the exterior of the Gas Stock Pot using a DO NOT mild detergent and hot water solution using soft USE FLAMMIBLE SOLVENTS AND CLEANING AIDS ON cloth or a soft bristled brush.
- Page 14 NOTE: All maintenance operations should only be carried out by a qualified service person. To achieve the best results, cleaning must be regular and thorough and all controls and mechanical parts should be checked and adjusted periodically by a qualified service person. If any small faults occur, have them attended to promptly.
- Page 15 This section provides an easy reference guide to the more common problems that may occur during operation of your equipment. The fault finding guide in this section is intended to help you correct, or at least accurately diagnose problems with your equipment. Although this section covers the most common problems reported, you may encounter a problem not covered in this section.
- Page 16 1. Unscrew and remove the blanking screw at Pilot Burner the base of the pilot burner assembly. 2. Remove the pilot injector and spring, NOTE: taking care not to lose the spring. These conversions should only be carried out by 3.
- Page 17 On completion of the gas conversion, replace gas type identification labels located at:- - Rear of unit, above the gas connection. - Beside the rating plate. Before leaving the converted installation; 1. Check all gas connections, including the pilot burner injector base connection, for leakage using soapy water or other gas detecting equipment.
-
Page 18: Replacement Parts List
243359 DRAIN CHANNEL COVER (CSP6) 242618 PILOT HOOD 242556 POT STAND STOCK POT 243185 BURNER TUBE 3/4” (20mm) x 12” (CSP6) 243097 BURNER DUCKBILL 18 JET 0.70mm LPG 242547 BURNER DUCKBILL 18 JET 1.25mm NAT 242552 INJECTOR DUCKBILL 0.70mm LPG 242555 INJECTOR DUCKBILL 1.25mm NAT...
