Summary of Contents for Artist Guitars RoboWinder

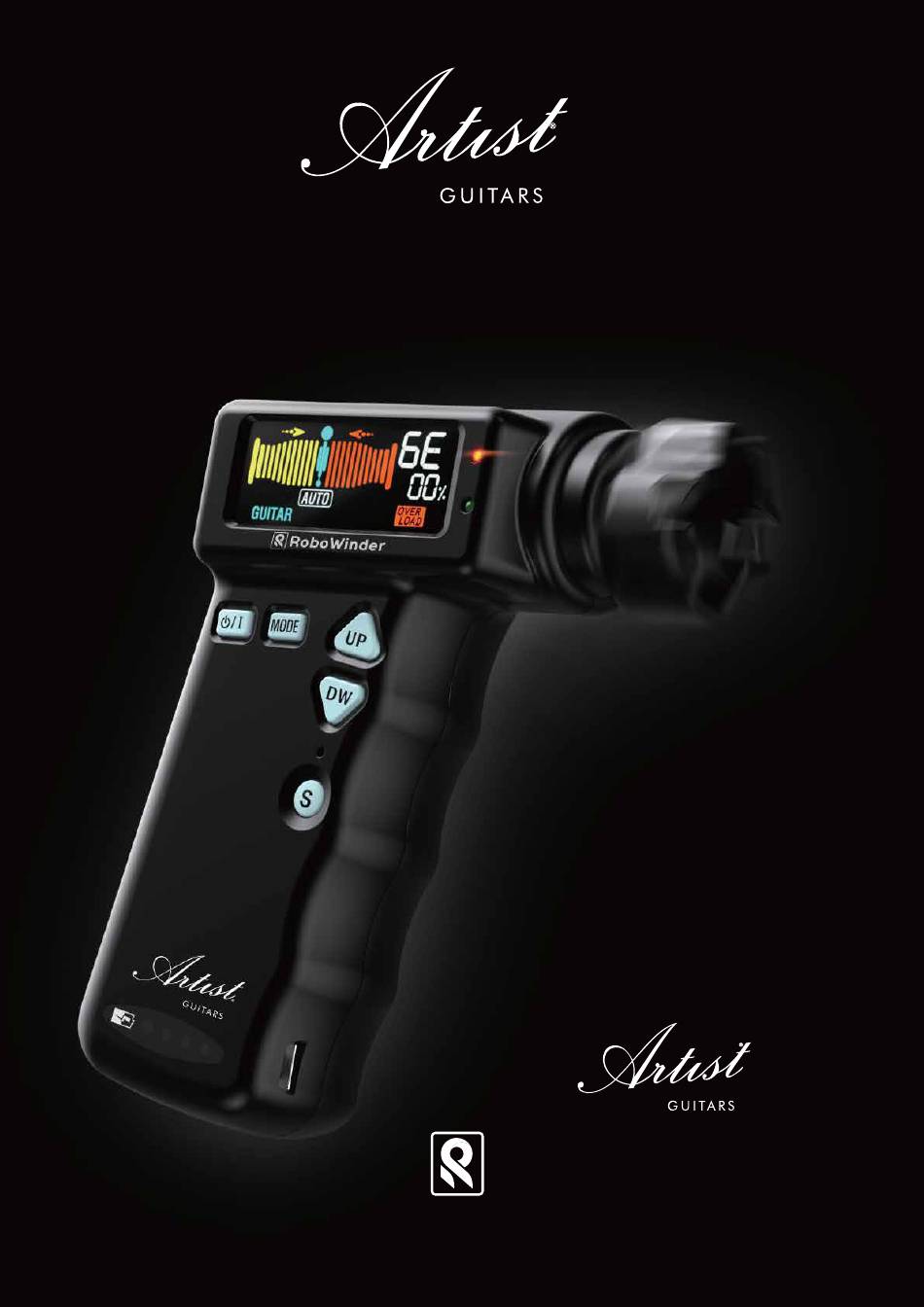

  • Page 1 USER GUIDE RoboWinder...
  • Page 2 FEATURES Easy Combining a vibration tuner and motorised string winder, the RoboWinder tunes guitars, basses and other stringed instruments with ease. Safe Over-tune & current protected. No need to worry about breaking strings. Fast Tune your strings at 180rpm. This motor is powerful enough for all kinds of machine heads.

  • Page 3: Safe Use Information

    SAFE USE INFORMATION Device must match with displayed number at SEMI-A/CUSTOM mode If not you may risk breaking strings Please avoid noisy environments. Loud noise may affect the accuracy of the device. Do not hold the peg connector with hands. Please avoid electromagnetic fields.
  • Page 4 FUNCTIONS & COMPONENTS Direction Indicator Red light indicates tightening string Green light indicates loosening string Main Peg Connector LCD Panel Additional Peg Connector UP Button Manually tighten strings DW Button Manually loosen strings Factory Reset Button S Button Press to select strings number. Hold to switch the Low G at SEMI-A/UKE Mode Button Hold to select modes...

  • Page 5: Lcd Panel

    LCD PANEL Semi-Automatic Tuning Mode String Number Automatic Tuning Mode Target Pitch Display Custom Tuning Mode Pitch Distance Display Lo/Hi display Low Battery Indicator Guitar Selection Ukulele Selection Overload Indicator Chromatic Selection Pitch Distance Display(Lo/Hi) It tells relative pitch distance between current vs.
  • Page 6 This mode is ideal if the instrument strings are out of tune by large amounts e.g. when replacing strings. Use this mode by telling the unit which string you want to tune. Once selected, the RoboWinder will keep tuning until it reaches the correct note.

  • Page 7: Auto Mode

    Hold the MODE button to select the AUTO mode. Place RoboWinder on the instruments machine head. Pluck the string until RoboWinder shows needle aligned in the center on the correct note. The unit will beep when the correct pitch is reached.

  • Page 8: Semi-Auto Mode

    Place S button to select the string you are tuning. Place RoboWinder on the instruments machine head. Pluck the string until RoboWinder shows needle aligned in the center on the correct note. The unit will beep when the correct pitch is reached.

  • Page 9: Custom Mode

    Press MODE button to change the required note. Place RoboWinder on the instruments machine head. Pluck the string until RoboWinder shows needle aligned in the center on the correct note. The unit will beep when the correct pitch is reached.
  • Page 10 3. When the charging LED indicator stops blinking, the battery is fully charged. Reset Button In the unlikely event that the RoboWinder becomes unresponsive, a hard reset is required. Insert a pin into the reset hole and press the button.
  • Page 11 PEG CONNECTOR USAGE Normal Size Peg Main Peg Connector Special Size Peg Additional Peg Connector Usage Plug in the additional peg connector for different sized guitar pegs Additional Peg Connector Usage...
  • Page 12 (General Android Mobile Phone Charging Wire) Current Stand by = 16mA Motor Tuning = 250mA Motor Overload = 1400mA Automatic stop after 1 second after motor overload Rechargeable 3.6 / Type 18650 / 2600mA Lithium Battery RoboWinder For support go to www.artistguitars.com.au/support...
