- Page 1 Optibike Pioneer LCD Display Programming Guide V1.2...
-
Page 2: Display Parameters

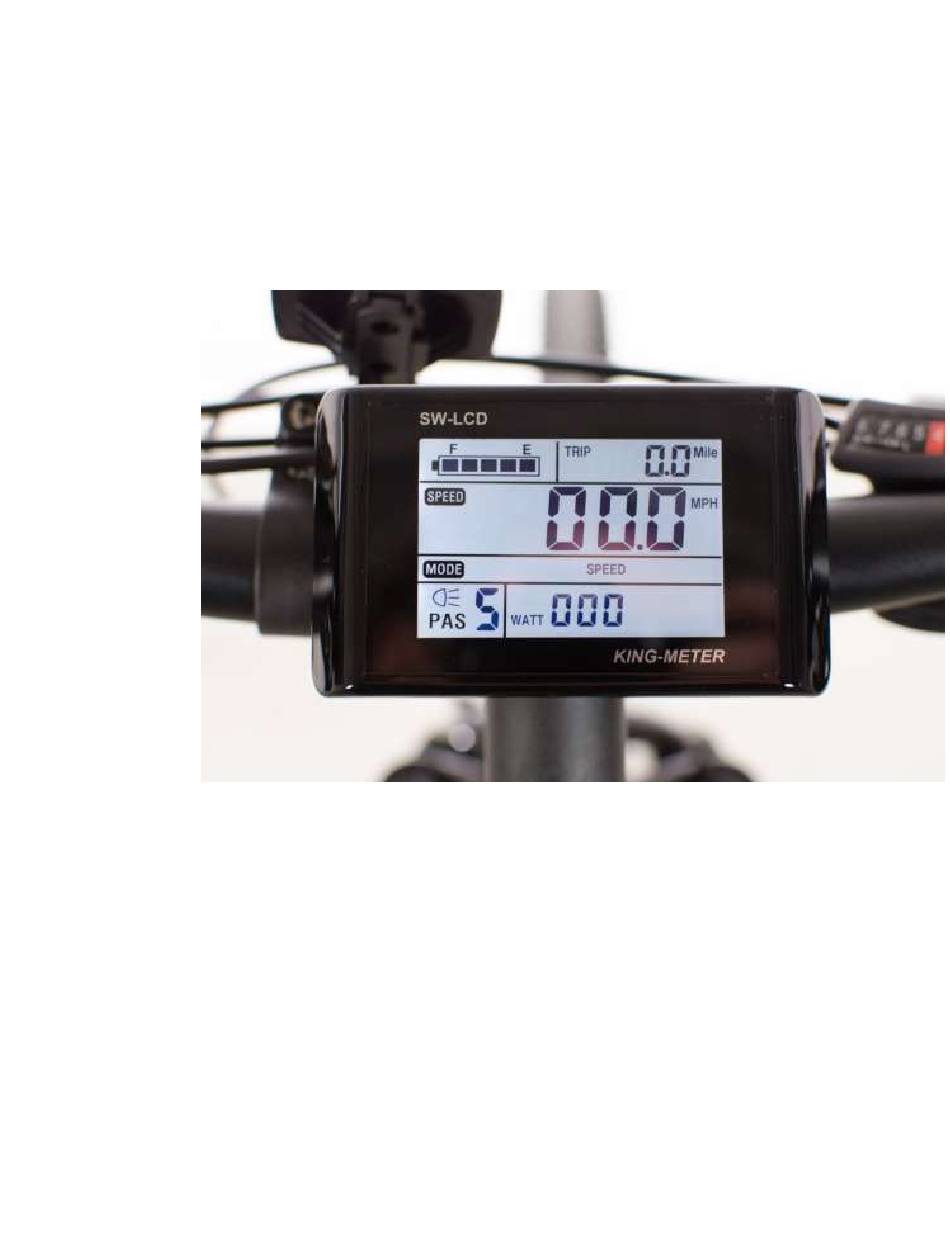

Overview This manual describes the function and programming of the LCD display that comes on the Optibike Pioneer Allroad and City electric bikes. The display has both user changeable settings and regular display of information, such as speed and motor power. -
Page 3: Programming Mode
The LCD is equipped with special 3-button unit that is attached to the left handlebar. There are three buttons: 1)MODE 2) Up Arrow and 3) Down Arrow. Programming Mode To turn on the display, press the MODE button for 1.5 seconds until the display lights up. -
Page 4: Max Speed
The wheel size is used for speedometer calibration. If the wheel size is incorrect the speedometer reading will be off. The standard setting for the Pioneer Allroad is 26 inch. Max Speed The second setting parameter is Max Speed. The Max Speed is the speed at which the motor will no longer provide assistance. -
Page 5: Backlight Brightness
Backlight Brightness The third setting parameter is backlight brightness. The interface is as below: Press UP or DOWN to modify the backlight brightness. You can choose from level 1 to level 3. Level 1 is the minimum brightness. Level 3 is the maximum brightness. The default value of the backlight brightness is level 1. -
Page 6: Quit From Set Up
Press UP or DOWN to choose a display unit. The unit can be MPH or KPH. Quit from set up To exit the setup mode, press MODE for 3 seconds to confirm the input, save current setting and exit. Standard Operation ON / OFF Press MODE, then the display starts to work and supply power to controller, long press MODE then switch off power. -
Page 7: Speed Display
Speed Display (Current Speed/Average Speed/Max Speed) When the e-bike starts, the display will automatically show the current speed. Hold UP and the display will show the MAX speed during this ride. Hold UP again and the display will show the AVG speed during this ride. Hold UP again and the display will turn to the current speed display. - Page 8 Assisted Power Select or Throttle Level Select Press UP or DOWN to change the output power of the motor. The power ranges from Level 1 to Level 5. Level 1 is the minimum power. Level 5 is the maximum power. Power Level “0” will give no power.
-
Page 9: Push Cruise Control
Push Cruise Control The Push Cruise Control can be used to walk your bike at a slow speed. This can be good for walking the bike up a hill. It is not recommended to be used while riding. Press DOWN for a while to get into power assist mode, and the bike will travel at fixed speed 6Km/h. -
Page 10: Motor Power
Motor Power Display the real time m o t o r power. The interface is below: Error Code Display If there is something wrong with the electronic control system, the display will show the error code automatically. The following is the definition of the error code. Error Code Definitions Code Definition... - Page 11 Error Code Display The Display will return to normal only after problem has been fixed and bike will not run before fixing the problem.
