Summary of Contents for RTC ProfitPoint

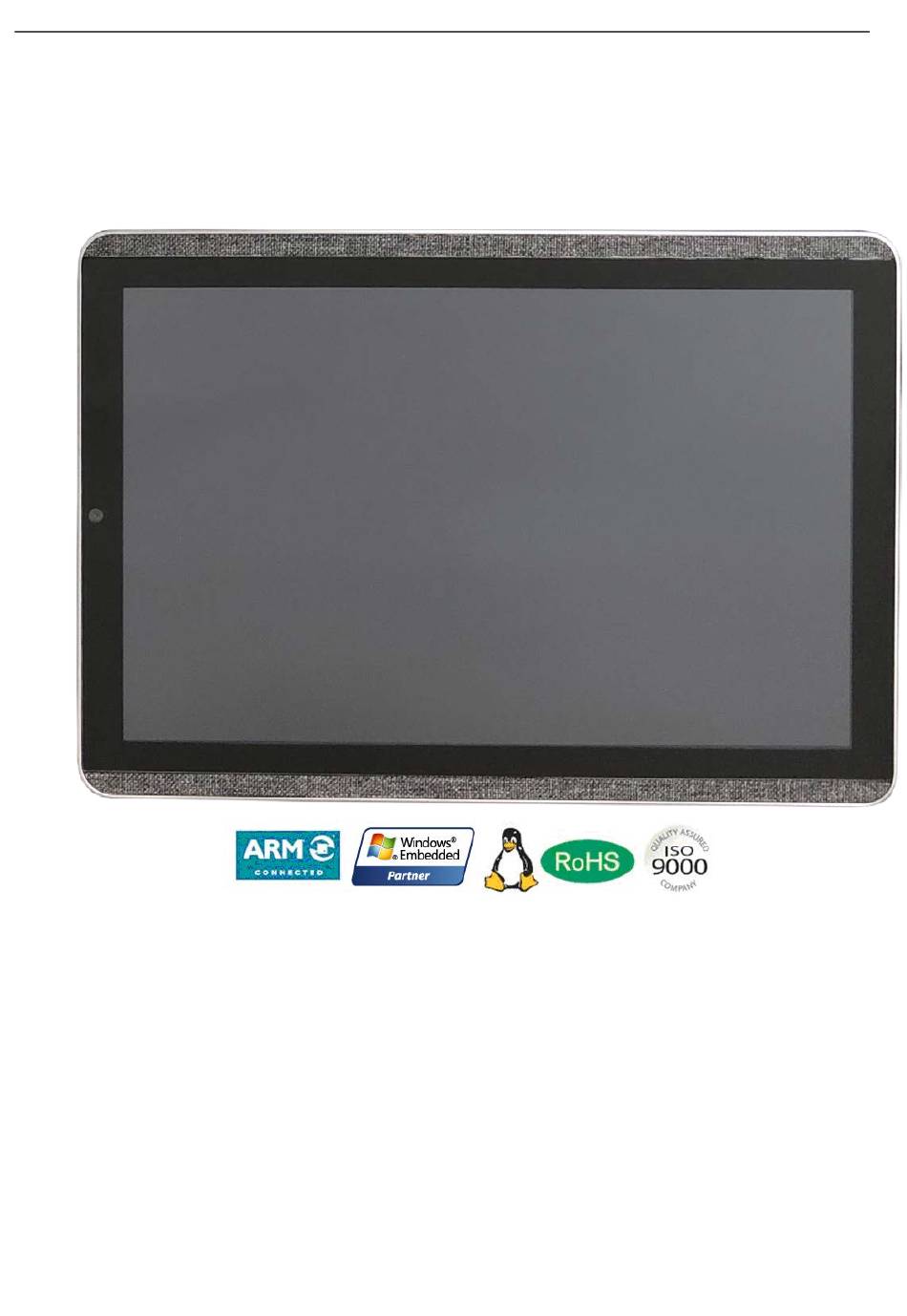

- Page 1 ProfitPoint 10” User’s Manual ProfitPoint ™ 10” User’s Manual All Rights Reserved...
-
Page 2: Table Of Contents
OVERVIEW ................................9 2.1 I ................................... 9 NTRODUCTION 2.2 P ................................10 RODUCT ERIES Ordering Information .............................. 10 2.2.1 PROFITPOINT HARDWARE INSTRUCTIONS ......................11 3.1 P ..............................11 RODUCT PPEARANCE 3.2 S ................................. 12 PECIFICATIONS 3.3 I ..............................13 NTERFACE NSTRUCTIONS Front View ................................ - Page 3 ProfitPoint 10” User’s Manual 4.1 B ................................. 17 RIEF NTRODUCTION TIPS ..................................18...
-
Page 4: Revision History
ProfitPoint User’s Manual Revision History Version Description Date V1.0 First release 2018/04/10 V1.1 Update Description of device 2018/04/13 V1.2 Update Description of Function 2018/04/18 V1.3 Update FCC, ISED, CE Caution 2019/04/17 4/ 22... -
Page 5: Foreword
RTC reserves all rights of this manual, including the right to change the content, form, product features, and specifications contained herein at any time without prior notice. -
Page 6: Statement
1.5 Limitation of Liability/Non-warranty For direct or indirect damage to this device or other devices of RTC caused by failure of conforming to this manual or the safety instructions on device label, RTC assumes neither warranty nor legal liability even if the device is still under warranty. -
Page 7: Precautions
ProfitPoint User’s Manual 1.7 Precautions Pay attention to the product labels/safety instructions printed on silk screens. Do not try repairing this product unless declared in this manual. Keep away from heat source, such as heater, heat dissipater, or engine casing. -
Page 8: Safety Instructions For Power Cables And Accessories
Start only with power source that satisfies voltage label and the voltage necessary according to this manual. Please contact technical support personnel of RTC for any uncertainty about the requirements of necessary power source. Use tested power source This product still contains a button lithium battery as a real-time clock after its external power source is removed and therefore should not be short-circuited during transportation or placed under high temperature. -
Page 9: Overview
User’s Manual 2 Overview 2.1 Introduction Thank you for choosing RTC. It is our commitment to provide our valued customers with the embedded devices equipped with the state-of-the-art technology and the best product services. Tablet enables the interaction between operators/users and applications, connects industrial control products such as wireless, transducer, battery inside, storage, etc. -
Page 10: Product Series
T200111 is the main model number, which will be followed by two letters and two numbers that indicate color and FLASH Storage Capacity, such as T200111-BK16. Basic information: 10.1” TFT IPS LCD, 1920x1200 4:3 Wide Screen, RK3399 ProfitPoint ™ 10” , 1000Mbps ARM Dual-Core Coretex-A72 2.0GHz, Quad-core Coretex-A53 1.5GHz Ethernet, POE IEEE 802.3at, USB2.0 HOST, Type-C OTG, WIFI/BT4.2. -
Page 11: Profitpoint Hardware Instructions
ProfitPoint User’s Manual 3 ProfitPoint Hardware Instructions 3.1 Product Appearance Front View Back View 11/ 22... -
Page 12: Specifications
ProfitPoint User’s Manual 3.2 Specifications ProfitPoint ™ 10” Product RK3399, Dual-Core Coretex-A72 2.0GHz, Quad-core Coretex-A53 1.5GHz 10.1” IPS TFT LCD, 1920 x1200, 16.7M color depth, 450cd/m2 Display TP use 1.1mm thickness Corning Gorilla Glass for good hardness Multi-point capacitive touch screen, 10 point... -
Page 13: Interface Instructions
ProfitPoint User’s Manual 3.3 Interface Instructions 3.3.1 Front View Speaker R Speaker L Camera 5M pixel 3.3.2 Back View Reset Button 13/ 22... -
Page 14: Side View
ProfitPoint User’s Manual 3.3.3 Side View HDMI USB Type-C Recovery Button DC 12V Power Jack USB 2.0 HOST RJ45 POE 3.4 Dimension Whole device Size: 244.8x171.3x25.4mm 3.5 Buttons Reset button You can press reset button with back small hole when you want to reset the tablet. -
Page 15: Interface Description
ProfitPoint User’s Manual 3.6 Interface Description 3.6.1 12V Adapter Input DC 2.1x5.5mm type adapter power Jack Input Power: DC 12V/1.5A Structure mark: DC 12V Description Centre +12V Diameter Ground 3.6.2 Internal MIC in Interface Front hole is used to the on-board analog MIC input. -
Page 16: Packing List
ProfitPoint User’s Manual 3.7 Packing List No Part Description Quantity Type ProfitPoint ™ 10” 12V/ 2A Adapter 16/ 22... -
Page 17: Software Instructions
ProfitPoint User’s Manual 4 Software Instructions 4.1 Brief Introduction ProfitPoint has been pre-loaded with Android image, please reference to SW-UM. 17/ 22... - Page 18 In the aim of avoiding accidents as far as possible, it is not allowed to replace the system or change components unless with permission and certification. Please contact the technical department of RTC or local branches for help. Pay attention to caution signs.
- Page 19 RTC assumes no responsibility of possible missing contents and information, errors in contents, citations, examples, and source programs. RTC reserves the right to make necessary changes to this manual without prior notice. No part of this manual may be reprinted or publicly released in forms of photocopy, tape, broadcast, e-document, etc.
- Page 20 ProfitPoint User’s Manual television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna.
- Page 21 Product Name: ProfitPoint ™ 10” Model: T200111 Brand Name: RTC Industries, Inc. hereby declares that this [Name: ProfitPoint ™ 10”, Model: T200111] is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The full test of the EU declaration of conformity please refer to www.rtc.com/support...
- Page 22 RF Output Power Max. 13.76dBm (EIRP) CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. RTC Industries, Inc. 2800 Golf Road. Rolling Meadows, IL. USA 60008 http://www.rtc.com/support U.S. 800-949-4190 22/ 22...
