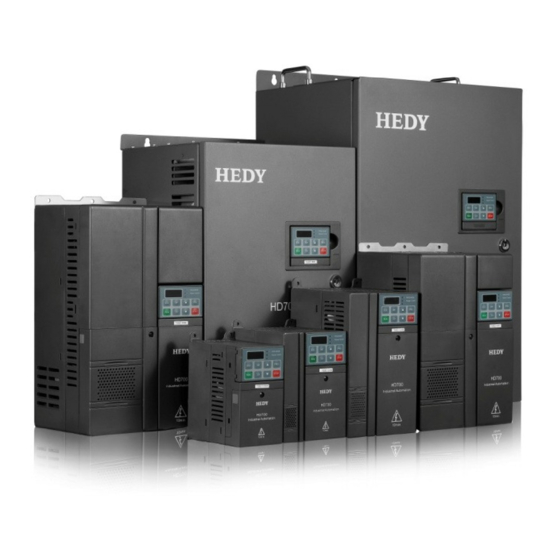

Summary of Contents for Hedy HD700 Series

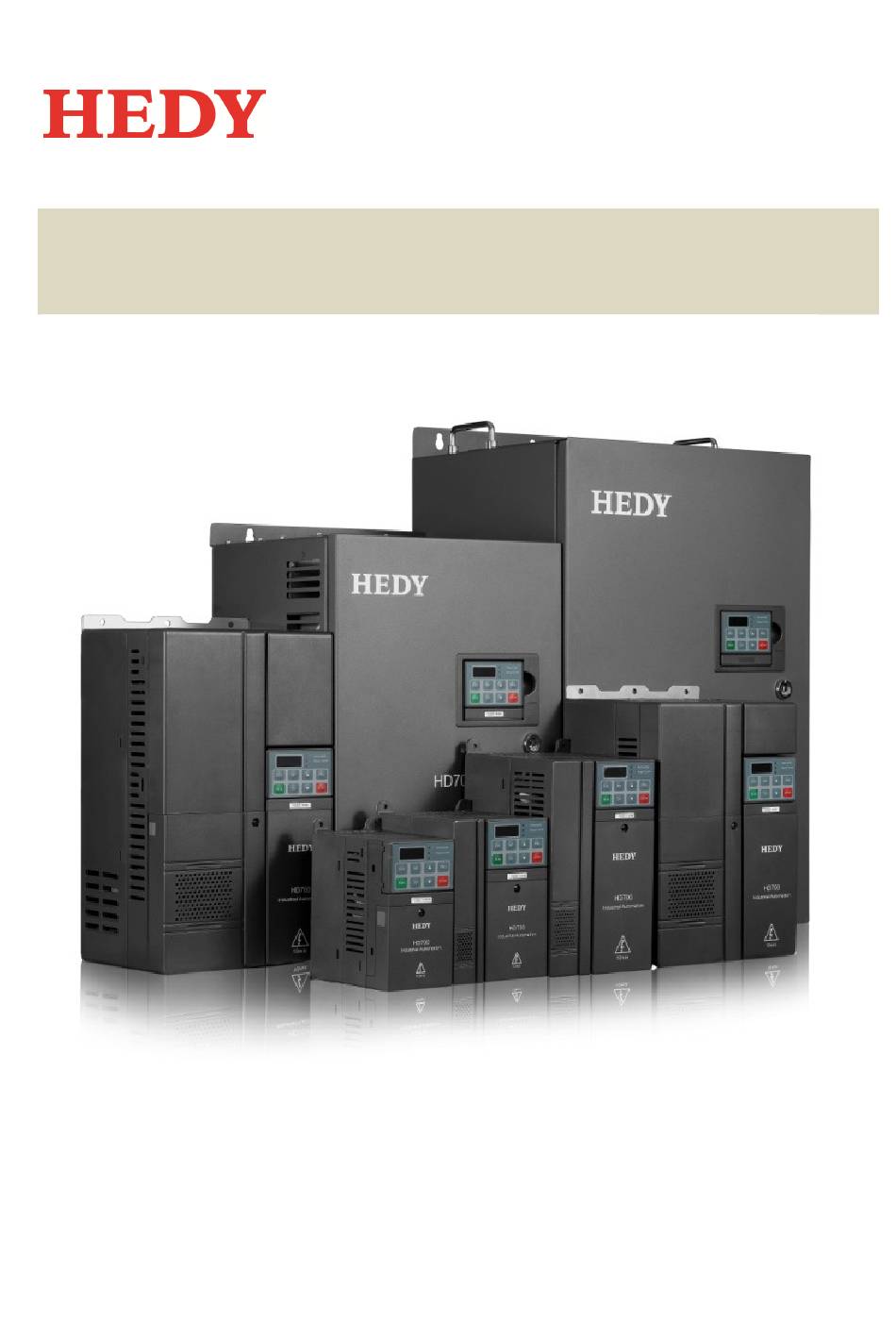

- Page 1 HD700 Easy start guide (0.4kW~90kW) V1.4.0...
- Page 2 Copyright © 2011 by Guangzhou HEDY Industrial Automation. Co., Ltd. All rights reserved. About this manual Thank you for choosing the HD700 AC Drive from HEDY. This manual provides basic information which will allow the user to install, setup and commission the HD700 drive for simple applications.
- Page 3 Declaration of Conformity (size D, E) Guangzhou HEDY Industrial Automation. Co., Ltd No.63, Punan Road, Yunpu Industry Park, Huangpu District, Guangzhou, Guangdong, 510760, China HD700-40T01100 HD700-40T01500 HD700-40T01850 HD700-40T02200 The AC variable speed drive products listed above have been designed and manufactured in accordance with...
- Page 4 Declaration of Conformity (size F, G) Guangzhou HEDY Industrial Automation. Co., Ltd No.63, Punan Road, Yunpu Industry Park, Huangpu District, Guangzhou, Guangdong, 510760, China HD700-40T03000 HD700-40T03700 HD700-40T04500 HD700-40T05500 HD700-40T07500 HD700-40T09000 The AC variable speed drive products listed above have been designed and manufactured in accordance with...
-
Page 5: Table Of Contents
Contents 1 Safety information .................... 1 1.1 General ....................1 1.2 Safety Symbols ..................1 2 Technical specification ..................2 2.1 How to identify the drive from the model reference ......2 2.2 Ratings ..................... 2 2.3 Maximum motor cable length ..............4 2.4 General technical data ................ -
Page 6: Safety Information
Safety information 1.1 General This chapter provides very important information so that you can use the HD700 drive safely, prevent injury or death, or damage to equipment. Please read this information thoroughly and make sure you observe all the safety information shown below and elsewhere in this manual. Please make this manual available for the end user. -
Page 7: Technical Specification
Technical Specification 2.1 How to identify the drive from the model reference The model reference can be found on the drive rating label HD700 00550 Family Supply voltage 2 = 230V 4 = 400V Brake unit 0 = Internal Brake (22KW and below, the internal brake unit is standard). - Page 8 Technical Specification Supply voltage = 380 - 480V (+/- 10%), Three phase, 48-62Hz Rated Rated Rated Minimum Motor Output Input Output Brake power Overload Model Size Current Current Resistance (1 minute) Ω HD700-40T00075 0.75 3.75 HD700-40T00150 HD700-40T00220 100% 150% HD700-40T00400 13.2 14.25 HD700-40T00550...
-
Page 9: Maximum Motor Cable Length
If the maximum motor cable length is to be exceeded, an output motor reactor or sine filter must be used. See the Technical Data Guide for details. www.hedyiad.com 2.4 General Technical Data Note: For full & detailed technical data please refer to the HEDY website: www.hedyiad.com UL approval E348255... -
Page 10: Installation
Installation 3.1 Mechanical installation 3.1.1 Parts of the drive Keypad Barcode Terminal Cover RJ45 Port Control Terminals Option Connector Rating Label EMC filter link Power Terminals 3.1.2 Drive Mounting & Dimensions Warning: The HD700 has an Ingress Protection rating of IP20 and therefore must be installed in a suitable enclosure, according to relevant local codes or standards. - Page 11 Installation Mechanical dimensions and mounting (Size D, E) Mechanical dimensions and mounting (Size F) P a g e HD700 AC Drive Easy Start Guide...
- Page 12 Installation Ø Ø Mechanical dimensions and mounting (Size G) P a g e HD700 AC Drive Easy Start Guide...
- Page 13 Installation Mounting Weight Hole Ø Size Model (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (kg) HD700-20D00040 HD700-20D00075 HD700-20D00150 97.4 − 202.4 148.8 − HD700-40T00075 HD700-40T00150 HD700-20D00220 HD700-40T00220 142.4 123.5 − 220.4 155.5 − HD700-40T00400 HD700-20T00400 HD700-40T00550 163.1 − 176.8 −...
-
Page 14: Drive Clearances
Installation 3.1.3 Drive clearances ≥100mm ≥ X mm ≥ 5 0mm ≥ 5 0mm ≥100mm Note: In vertical installations where drives are mounted above each other, there should be suitable air flow to keep the drives cool. Note: Dimension X Hot air from the lower drives should not flow Size A, B &... -
Page 15: Electrical Installation
Installation 3.2 Electric installation Warning: Recommendations made in this section may be superseded by local regulations. The user is responsible for making sure that local regulations are complied with. 3.2.1 How to remove & fit the terminal cover Cover slots Remove: Untighten the screw M4x10 •... -
Page 16: Typical Power Connections
Installation 3.2.3 Typical power connections Warning: The drive must be connected to system ground using the drive’s PE terminals. The size of the earth conductor and earth loop impedance must comply with local electrical regulations. Warning: If there is a contactor between the drives output and the motor, the drive must be disabled before opening/closing the contacts. -
Page 17: Recommended Fuses, Power & Control Cables
Installation 3.2.4 Recommended fuses, power & control cables Supply Cable & Motor Input Current Supply Fuses Earth Cable Control IEC gG conductor (Type C) Model cable (mm2) Single Three Single Three Single Three Single Three Three phase phase phase phase phase phase phase... -
Page 18: Default Control Connections
Installation 3.2.5 Default control connections Note: The drive is in keypad control as default Run Forward DI1 (Digital input 1) AO1 (Analogue output 1) Output frequency 0 - 10V Run Reverse DI2 (Digital input 2) Zero speed DO1 (Digital output 1) (24V when at zero speed) DI3 (Digital input 3) Drive alarming... -
Page 19: Control Terminals Specification
Installation 3.2.6 Control terminals specification Note: For full detailed specification & functionality of the control terminal please refer to the HD700 Technical Data Guide Terminal Type Function Specification Name RS485 RJ45 Port Two lines, Modbus RTU protocol Serial RS485 + signal Communications. -
Page 20: Emc
Installation 3.2.7 EMC EMC recommendations: Immunity The drive should be installed onto a metal back plate • 360 degree ground clamps should be used to connect the screen of the cable; avoid "Pigtail" • ground connection Control and power cables should be separated by a metal partition. •... - Page 21 Installation Fit and remove the internal EMC filter (Size B and C) Internal EMC filter Insert link to connect the EMC filter Internal EMC filter Pull out the link to remove the EMC filter Fit and remove the internal EMC filter (Size D and E) Size D: The internal EMC filter can be disconnected by removing screw 1 •...
- Page 22 Installation Fit and remove the internal EMC filter (Size F) The internal EMC filter can be disconnected by untightening screws 1 and 2 and removing the EMC • filter board as shown below. Note: In order to ensure reliable earthing, please tighten the screws 1, 2 after removing the EMC filter board. Fit and remove the internal EMC filter (Size G) The internal EMC filter can be disconnected by untightening screws 1 and 2 and removing the EMC •...
-
Page 23: Using The Keypad
Using the keypad 4.1 Display overview 5 digit LED display shows drive status, parameter & value, trip codes etc. LED lights indicate what the display is showing Unit Light on Light flashing Output frequency Frequency Reference Output current Output voltage DC bus voltage Run light turns on when the drives output is active. -
Page 24: Changing Parameters
Using the keypad 4.3 Changing Parameters The following flow diagram illustrates the process of changing parameters; Note: The digit shown below with an underline is flashing. Change parameter value Change parameter Default display 0.00 P00.01 P00.02 Left shift >> parameters Note: When the value of a parameter is changed the PRG key must be pressed to save the value Worked example: Change the value of P00.16 from 5.00Hz to 15.00Hz... -
Page 25: Quick Commisioning
Quick Commissioning The following quick setup guides quick setup guides show the quickest way to get the motor running in keypad show the quickest way to get the motor running in keypad and terminal control. They assume that the assume that the drive has factory default parameters set. 5.1 Quick commissioning in keypad control commissioning in keypad control Note: The drive is in keypad control from default... -
Page 26: Quick Commisioning In Terminal Control
Quick Commissioning 5.2 Quick commissioning in terminal control Make connections Enter motor details into the drive Ensure the drive is powered OFF • Make control connections as shown • Apply power to the drive • Using the information from the motor •... -
Page 27: Quick Commisioning In For Fixed Speed
Quick Commissioning 5.3 Quick commissioning to run at a fixed speed Enter motor details into the drive Apply power to the drive • Using the information from the motor • nameplate set the following parameters: P00.01 (motor rated voltage) = nameplate data P00.02 (motor rated current) = nameplate data P00.03 (motor rated frequency) = nameplate data For information on how to change... -
Page 28: P00 Parameters
P00 Parameters P00 parameter group contains parameters for basic set up of the drive. Each parameter in this menu is related with a parameter from the extended menus. If a parameter in this menu is changed, the related parameter is also changed. -
Page 29: P00 Parameter Descriptions
P00 Parameters 6.2 P00 Parameter Descriptions Note: Change mode shows what condition the drive needs to be in to allow the parameter to be changed. Parameter Parameter name Change mode Range 【 【 【 【 D efault 】 】 】 】 200V: 0V ～... - Page 30 P00 Parameters 2: Preset (Preset/constant speeds) Controlled by the digital input terminals, the frequency reference is the value of P04.01 (preset 1) - P04.16 (preset 16). Example set up: Digital inputs DI4 and DI5 are set up as the preset select bits: P09.05 = 0 DI4 is preset select bit 0 P09.06 = 1...
- Page 31 When the output frequency gets to the Stop DC injection brake frequency (P03.12), the DC injection braking begins. (Please refer to P03.08, P03.09, P03.13 & P03.14 in the HEDY HD700 Advanced User Guide for further information on DC injection braking).
- Page 32 P00 Parameters Parameter Parameter name Range D efault Change mode 【 【 【 【 】 】 】 】 P00.12 Voltage boost level Run or Stop 0.0% ～ 30.0% 【 b y model 】 (P06.08) The voltage boost is used to increase motor voltage at low speeds and improve low speed motor starting torque.
- Page 33 P00 Parameters Parameter Parameter name Range D efault Change mode 【 【 【 【 】 】 】 】 P00.14 Digital input selector Stop only ～ 【 】 (P09.22) Setting this parameter automatically configures the drives digital input terminals as per the following diagrams: Note: DI5 (digital input 5) is set to OFF by default so therefore has no function...
- Page 34 P00 Parameters Parameter Parameter name Change mode Range 【 【 【 【 D efault 】 】 】 】 P00.16 Preset speed 1 ± P00.07 【 5 .00Hz 】 Run or Stop (P04.01) Sets the frequency the drive will run at when preset speed 1 is selected. Parameter Parameter name Range...
- Page 35 P00 Parameters Parameter Parameter name Change mode Range 【 【 【 【 D efault 】 】 】 】 P00.24 Load defaults Stop only ～ 【 】 (P10.08) 0: No action 1: Load default parameters. When P00.24 is set to 1 and the PRG button is pressed all parameters are set to their factory default values.
-
Page 36: Troubleshooting
7.1 Faults & corrective actions Note In the unlikely event that a trip occurs that is not listed below, please refer to the HD700 Advanced User Manual for a full list of trip codes Note: Trip information is recorded in Group P11 (Fault tracking) Trip Trip Description Possible Reasons... - Page 37 Troubleshooting Trip Trip Description Possible Reasons Corrective Actions Code F012 AI1 Over current AI1 input current is over 26mA Check AI1 input F013 AI1 Input current loss AI1 input current <3mA Check AI1 input Output current of user +24V, DO1 Check if there is short circuit on the F014 User +24V supply overload...
-
Page 38: Alarms
Troubleshooting 7.2 Alarms When drive is in an alarm condition, the drive will keep running and Keypad will display the alarm Code (Hxxx). The Alarm code will flash for 3 seconds, then return to the normal display (selected by P05.01). The normal display will flash for 3 seconds, then return back to flashing alarm code. - Page 39 Notes...
- Page 40 Easy Menu Parameters Parameter Parameter name Setting Parameter Parameter name Setting P00.01 Motor rated voltage P00.13 V/f control mode P00.02 Motor rated current P00.14 Digital input selector P00.03 Motor rated frequency P00.15 Relay 1 selector P00.04 Control mode P00.16 Preset 1 P00.05 Reference source selector P00.17...
