Summary of Contents for TAKARA MB1200
-
Page 1: User Manual
USER MANUAL Translation of the original version BALANCE BIKE ELECTRIC FOLDABLE TAKARA MB1200... - Page 2 Content of the manual 1. Warnings / Residual Hazards / Precautions for Use a. Warnings / Precautions for Use b. Residual Hazards c. Handling / Transport / Storage / Battery i) Handling / Transport / Storage ii) Battery 2. Product Description a.
- Page 3 vi) Braking 4. Cleaning / Maintenance / Repairs a. Cleaning b. Brakes: maintenance / adjustments i) Adjusting brake cable tension ii) Brake Caliper Adjustments c. Wheels i) Inflation ii) Wheel Alignment iii) Warnings on shocks 5. Legal indications Importé par DIECI SAS 59 Avenue Henry Dunant, 06105 Nice Cedex 2 Page...
- Page 4 1) Warnings / Residual Hazards / Precautions for Use a) Warnings / Precautions for Use - Do not lend your electric balance bike to anyone who is not familiar with the device. - When using the Balance Bike please wear appropriate clothing and all necessary protective equipment: helmet, knee pads, elbow guards and other protections.
- Page 5 - Do not be distracted while driving, answering the phone, listening to music or doing any other activity. - This device is allowed to run only on private roads and is tolerated on pedestrian routes at a maximum speed of 6km / h according to local regulations, please make sure of these different regulations.
- Page 6 must under no circumstances disassemble the device or modify the components of this product. - Do not open the device, if the device is defective or malfunctioning, contact the seller immediately, do not try to repair by yourself. While driving, you may be exposed to unexpected hazards or dangerous situations, which may result in serious injury, please exercise caution and care.
- Page 7 maintained in accordance with the instructions Inhalation of dust and noxious fumes Formation of dust and explosive fumes Materials from the environment Hydraulic fluids on the track Damage to property and persons resulting from the projection of objects. Ergonomic Repetitive injuries Bad posture Non-use of personal protective devices...
- Page 8 shocks or accidental start-up, this may cause malfunctions of the device, see a significant deterioration of the device or the battery. Store the balance bike in a cool, ventilated, clean and dry place, in the "parking" position (kickstand in the open position, on a flat surface, on a slope or uneven), when the charger is unplugged and that the balance bike is off (off), the storage location should not be subject to large temperature...
- Page 9 - Only an authorized person can change the battery. - If the battery is defective or damaged, contact a Takara electric cycle specialist who can disassemble the balance bike and change the battery. - The balance bike equipped with a battery must not be close to a fire or a source of heat.

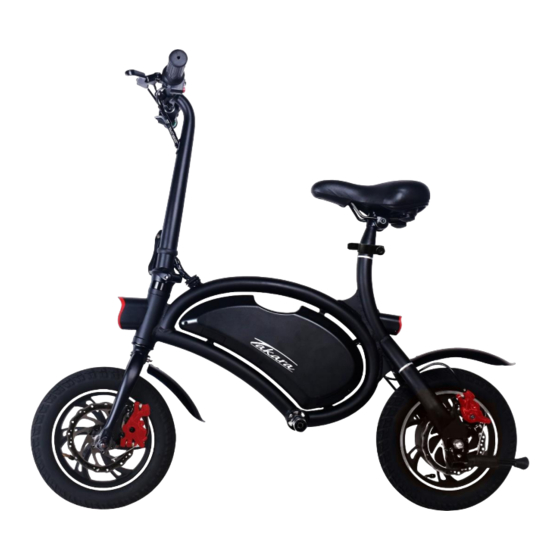

- Page 10 - Please contact local authorities for recycling practices in your jurisdiction. 2) Product Description a) Description/Presentation You have just purchased a TAKARA model MB1200D electric balance bike. This new type of mobility, entirely electric and non-polluting, will enable you to perform leisure activities smoothly and without fatigue.
- Page 11 List of product elements Page...
- Page 12 MB1223 Battery charge level indicator Throttle grip MB1224 MB1225 Handlebar folding ring Handle MB1226 Buzzer MB1227 MB1228 Drums Front rim MB1229 MB1230 Engine with rear rim Charger MB1231 Padlock MB1232 * Spare parts available for 2 years on www.takara.fr Page...
- Page 13 Accessories Fenders Seat FRONT REAR Footrests Padlock supplied two keys Buzzer AC charger User Manual Page...
- Page 14 b) Mounting accessories WARNING ASSEMBLY / DISASSEMBLY When assembling the elements you must comply with the instructions below and the precautions to take, if you do not comply with these instructions it could cause a malfunction of the device and cause a loss of balance (stability), a fall or an accident.
- Page 15 ii) Seat assembly WARNING ASSEMBLY / DISASSEMBLY OF THE SEAT Make sure that the Balance Bike is in the "parking" position (kickstand in the open position, on a flat, sloped or uneven surface), that the charger is unplugged and that the Balance Bike is off (off).
- Page 16 WARNING ASSEMBLY / DISASSEMBLY OF MUDGUARDS Make sure that the Balance Bike is in the "parking" position (kickstand in the open position, on a flat, sloped or uneven surface), that the charger is unplugged and that the Balance Bike is off (off). Unpack the mudguards, the smaller ones attach to the front using the supplied screw and nut, the larger ones attach to the back using the screw and nut provided.
- Page 17 WARNING ASSEMBLY / DISASSEMBLY SOUND ALARM Make sure that the Balance Bike is in the "parking" position (kickstand in the open position, on a flat, sloped or uneven surface), that the charger is unplugged and that the Balance Bike is off (off). Unpack the horn, attach it to the left side of the handlebar using the fixing ring and the screw so that you can reach it with your thumb without removing...
- Page 18 c) Technical characteristics SETTINGS STANDARD DATA Materials Aluminum alloy / steel Size (folded) 1080 * 430 * 490mm Size (unfolded) 1080 * 430 * 1140mm Height and Wedge height 200mm weight Wheel size 12 inches Frame color Black Shipping weight 18.6kg Product weight 14.3kg...
- Page 19 3) Functions a) Folding / Unfolding the Handlebar of the Balance Bike WARNING FOLDING / UNFOLDING THE HANDLEBAR Make sure that the Balance Bike is in the "parking" position (kickstand in the open position, on a flat, sloping or uneven surface), that the charger is unplugged and that the Balance Bike is off (off).
- Page 20 Unfolding detail Photo n°1 Photo n°2 Photo n°3 Photo n°4 Photo n°6 Photo n°5 Page...
- Page 21 ii) Folding the handlebar of the balance bike Unlock the handlebar locking buckle (photo n ° 4 / p22). Position the handlebars so that the brake handles are vertical. Re-lock the handlebar locking buckle (photo n ° 6 / p22). Unlock the safety pin up in the open position and unblock the folding buckle AT THE SAME TIME: Then bend the steering column.
- Page 22 b) Operating system against unauthorized use To prevent unauthorized use of the product, please use the lock provided with the product. When you no longer use the balance bike, when it is parked or in parking mode, including in your garage, secure it by connecting the lock in this way: - Position the lock so that it surrounds the wheel and the fork to lock the wheel system.
- Page 23 c) Charge the battery of the balance bike LOADING WARNING Make sure that the balance bike is in the "parking" position (kickstand in the open position, on a flat surface, neither on a slope nor uneven), that the Balance Bike is off (off). DO NOT ABSOLUTELY HAVE THE DRAISIAN TURNED ON DURING THE LOAD CYCLE, that the Balance Bike is in a dry place, away from the sun, rain, that the Balance Bike and...
- Page 24 Photo n°3 Photo n°2 Photo n°1 - To disconnect after charging, please disconnect the power cable from the 220V socket. - Then disconnect the charging cable (photo n° 3 / p25). - Close the waterproof plug of the charging port and close the charging port cover (photo n °...
- Page 25 After 4-5 hours the charging cycle will be complete, the indicator light of the charger will change from red to green. GREEN It will be necessary to correctly disconnect the charging port and the power cable as seen in the previous step (See point i - description of the charging - photo n °...
- Page 26 charging time could cause overheating and thus increase the risk of fire or explosion. ALWAYS unplug the charger from the balance machine and the power outlet after a full charging cycle to avoid overheating and not to alter the life of the battery. Do not leave the charger and the balance connected.
- Page 27 on), then you have to open the stand so that you can keep the balance bike upright without human assistance. v) Turning on / turning on the Balance Bike WARNING START UP Make sure that the Balance Bike is in the "parking" position (kickstand in the open position, on a flat, sloping or uneven surface), folding ring, safety pin, clamping ring tightly closed, that the loader unplugged and the balance...
- Page 28 On power-up an electronic anti-start safety device will prevent you from operating the accelerator during the lighting of the balance bike as follows: - Press the power button *** Start-up security *** - Flash of the green charge indicators - One after another ignition of the green charge indicators according to the charge of the balance bike (1/2/3/4 lights come on consecutively) *** End of boot safety ***...
- Page 29 This electronic immobilizer anti-start will allow you not to operate the accelerator and the power of the balance bike, thereby limiting the risk of falling at the start. vi) Front / Rear lighting Front / rear lighting: press the push button on the right side of the handlebar for 3 seconds to switch on the headlights.
- Page 30 A bell positioned on the handlebars will allow you to signal your presence to others. viii) Start / Driving WARNING STARTING Make sure that the Balance Bike is in the "parking" position (kickstand in the open position, on a flat, sloping or uneven surface), folding ring, safety pin, clamping ring tightly closed, that the loader unplugged and the balance bike is off (off).
- Page 31 ix) Braking Rear disc brake Front disc brake The balance bike is equipped with two disc brakes for a safe use experience. The brake handle on the right handlebar activates the front brake. The brake handle on the left of the handlebar activates the rear brake. Page...
- Page 32 During the action of one of the brake handles this cuts the electric motor preventing the effect of slippage and allowing a faster and softer braking. WARNING BRAKING The use of the brake must be done smoothly, do not press too hard on the brakes to avoid slippage or tilting.
- Page 33 b) Brakes: maintenance / adjustments WARNING BRAKES Make sure that the Balance Bike is in the "parking" position (kickstand in the open position, on a flat, sloping or uneven surface), that the charger is unplugged and that the Balance Bike is OFF (off). Please check the brakes before use.
- Page 34 Shortening the cable will release the brake voltage: Lengthening the cable will tighten the brake voltage : Retighten the screw with the key while holding the cable to the desired length : Page...
- Page 35 Test the cable tension with the corresponding brake handle : Right brake handle => front brake. Left brake handle => rear brake. The tension in the handle should be neither too strong nor too loose. WARNING BALANCE BIKE MUST ALWAYS REMAIN OFF DURING SETTINGS. Page...
- Page 36 BRAKING TEST Raise the balance wheel, manually turn the wheel corresponding to the brake you have just adjusted. While the wheel is spinning, operate the brake handle, stopping the rotation of the wheel must be instantaneous. If the stop is not immediate, braking will not be optimal. Repeat the procedure.
- Page 37 Photo n°1 To make the settings: - Loosen the screws (pictures n ° 2 and 3 p40). The stirrup must be able to move transversely when it is handled. Photo n°2 Photo n°3 Align the disc and the pads so that the space is parallel and identical from left to right of the disc.
- Page 38 If the adjustment is correct, tighten the screws slowly so as not to lose the position. Tighten the brake handle corresponding to the brake caliper you have just adjusted and then release. Visually check the alignment (photo n ° 1 / p40) If it is not optimal, repeat the procedure.
- Page 39 If the wheel seems to force or make friction noises, repeat the procedure. WARNING THE DRAISIAN MUST ALWAYS ATTENTION LA DRAISIENNE DOIT TOUJOURS RESTER REMAIN OFF DURING SETTINGS. HORS TENSION PENDANT LES REGLAGES DES FREINS. DES FREINS. c) Wheels WARNING WHEELS Make sure that the Balance Bike is in the "parking"...
- Page 40 Make sure that the beak of the inner tube is perpendicular to the rim (see picture below) to avoid pinching the tube and / or premature wear of the tube. Use a suitable inflator, type car inflator to check the tire pressure and if necessary reinflate the tube.
- Page 41 ii) Wheel Alignment The two wheels must be perfectly aligned with the frame, if this is not the case, do not use the balance bike, the wheels could be veiled, the frame, the fork or the twisted axis of direction making the use of the dangerous balance bike.
- Page 42 iii) Warnings on shocks If you suffer a shock on one of the wheels of your balance bike, it could result in: ▪ Abolish the tube ▪ Absorb the rim of the wheel ▪ To sail the wheel ▪ Twist the fork ▪...
- Page 43 We, DIECI SAS - 59 Avenue Henry Dunant - 06105 Nice Cedex 2 - FRANCE, declare that this declaration of conformity is established under our sole responsibility : Brand : TAKARA Reference : MB1200D Type : DRAISIENNE ELECTRIQUE PLIABLE To which this declaration refers, it complies with the essential...
Need help?
Do you have a question about the MB1200 and is the answer not in the manual?
Questions and answers

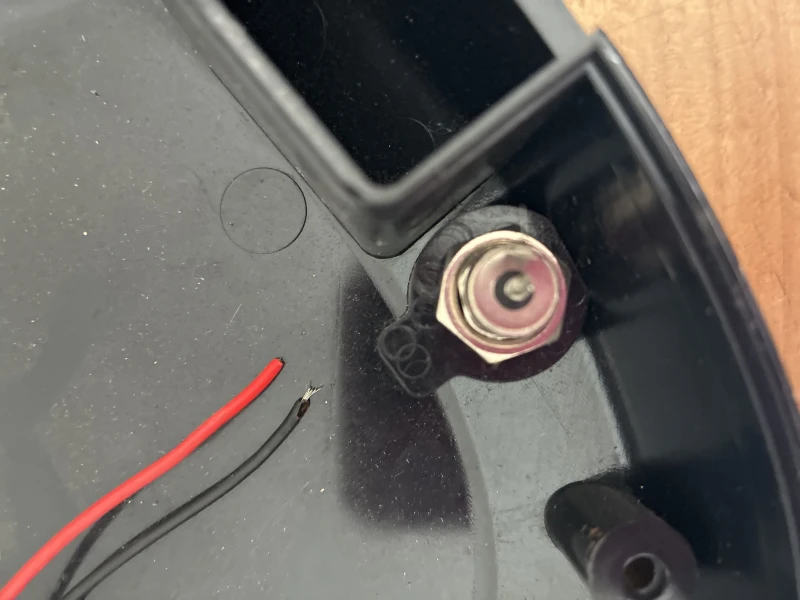

Bonjour la protection de la batterie a été arrachée et le fil rouge et noir sont dessoudés de l’arrière de la prise qui permet le chargement pouvez-vous m’indiquer où souder le rouge et où souder le noir à l’arrière de la prise.je vous remercie par avance Gravelle
