Summary of Contents for Eyenetra NETROPTER

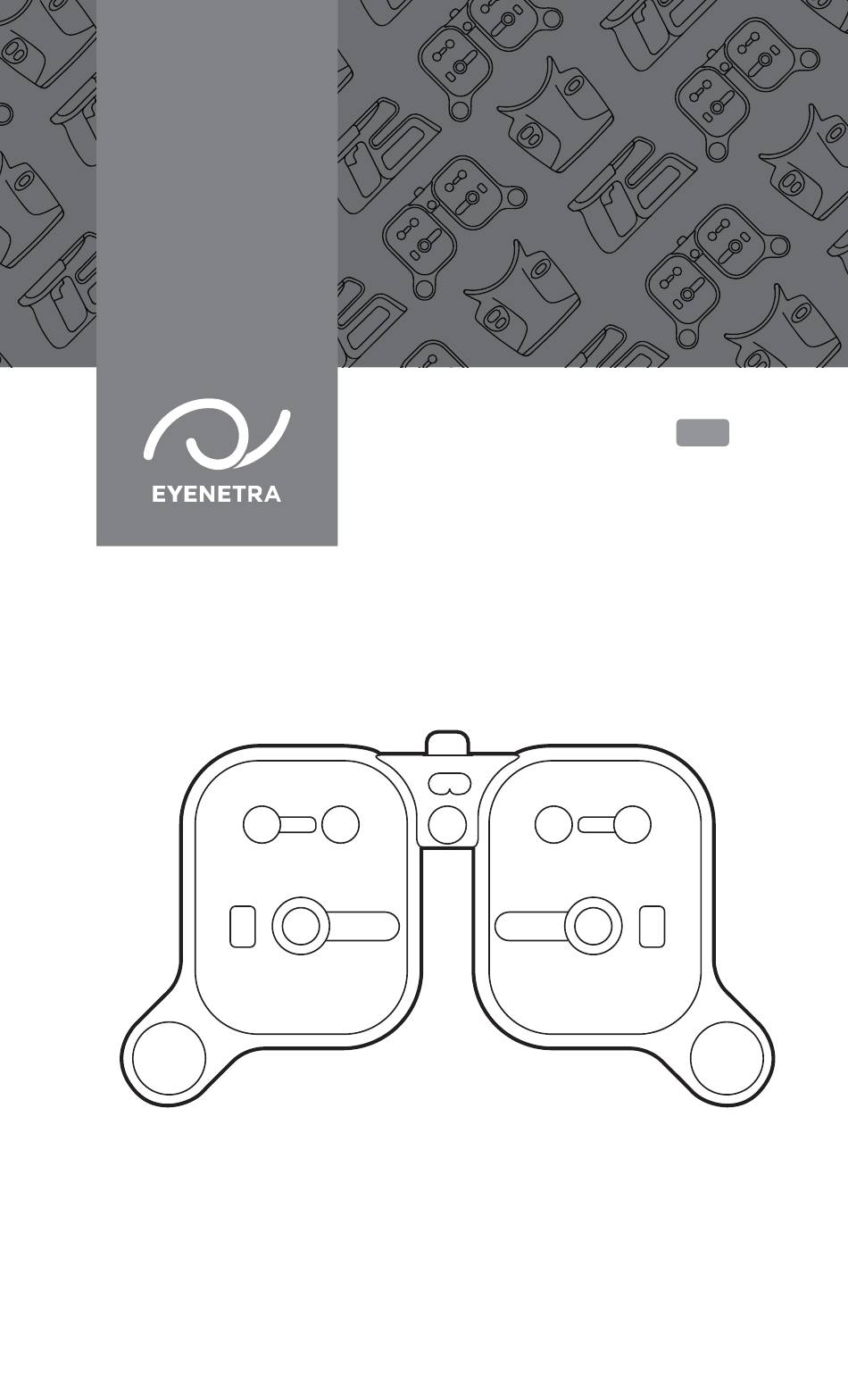

- Page 1 NETROPTER v1.01 User Manual...
- Page 2 INDICATIONS AND INTENDED USE STATEMENT The Netropter is intended for use by an eyecare professional to provide a means of positioning spherical and cylindrical lenses in front of a subject’s eyes for purpose of determining refractive error and binocular functions such as visual acuity (both near and far).The Netropter is intended to replace...
- Page 3 The following items are included in this kit: NETROPTER MICROFIBER CLOTH...
-
Page 4: Table Of Contents
TABLE OF CONTENTS Your NETROPTER 5 Setup and Use 9 Technical Specifications 17 FAQ 19 Warranty and Support 21 Terms of Sale 25 Refund Policy 29... -
Page 5: Your Netropter
NETROPTER Your NETROPTER... - Page 6 FRONT VIEW Your NETROPTER | NETROPTER USER MANUAL...
- Page 7 PD Knob Axis Knob PD Lock Cylinder Knob Aperture Minor Sphere Knob Major Occluder Switch (patient’s right eye) Sphere Knob (patient’s left eye) Your NETROPTER | NETROPTER USER MANUAL...
- Page 8 BACK VIEW Thumb Rest Aperture Your NETROPTER | NETROPTER USER MANUAL...
-
Page 9: Setup And Use
NETROPTER Setup and Use... - Page 10 SETUP Set the pupillary distance using the PD knob. INCREASE DECREASE Pull the PD Lock into the UP position to lock in the PD. Setup and Use | NETROPTER USER MANUAL...
- Page 11 1.00D from -10D to +5D The Sphere Minor Knob is the larger knob, and it can be used to make adjustments in increments of 0.25D from 0D to -0.75D -.00 -.25 -.50 -.75 Setup and Use | NETROPTER USER MANUAL...
- Page 12 Set the Set the axis cylindrical using the error using the Axis Knob. Cylinder Knob. 0.00 -3.25 -6.00 Setup and Use | NETROPTER USER MANUAL...
- Page 13 The Occluder switch can be used to open or close the aperture. To OPEN THE APERTURE, push the SWITCH DOWN. THE OCCLUDER CAN BE USED FOR MONOCULAR TESTING OPEN THE SWITCH APERTURE DOWN Setup and Use | NETROPTER USER MANUAL...
- Page 14 When operating the NETROPTER, hold the device with knobs facing out. USE INDOORS RATHER THAN IN DIRECT SUNLIGHT Setup and Use | NETROPTER USER MANUAL...
- Page 15 Use both hands to grip the handles, with the thumbs resting in the recessed area. USE INDOORS RATHER THAN IN DIRECT SUNLIGHT Setup and Use | NETROPTER USER MANUAL...
- Page 16 Rest the device against your forehead and look through the aperture(s). NETROPTER CAN BE USED FOR BOTH "DISTANCE" AND "READING" VISUAL ACUITY TESTING Setup and Use | NETROPTER USER MANUAL...
-
Page 17: Specifications
NETROPTER Technical Specifications... - Page 18 None (Handheld) REQUIREMENTS Class I, exempt from 510(k) pre-market FDA STATUS submission requirements • Temperature: -15°C to 93°C OPERATION • Relative humidity: 95% non-condensing • Temperature: -15°C to 93°C STORAGE/TRANSPORT • Relative humidity: 95% non-condensing Technical Specifications | NETROPTER USER MANUAL...
-
Page 19: Faq
NETROPTER... - Page 20 Yes, for users who are elderly, disabled, or for any reason unable to hold the Netropter in a stable manner, it is recommend to have the user rest their elbows on a stable surface while holding the Netropter for added comfort and stability.
-
Page 21: Warranty And
NETROPTER Warranty and Support... - Page 22 All Eyenetra devices are guaranteed for 1-year from date of purchase. If you purchased directly from Eyenetra, please contact customer service by calling Monday thru Friday 9:00 AM - 5:00 PM (EST) +1 (857) 997 2057 or by visiting our customer support website at store.eyenetra.com with any issues. If you purchased from an authorized re-seller, please contact them directly.
- Page 23 In no event shall Eyenetra be liable for any damages (including, without limitation, lost profits, business interruption, or lost information) arising out of your use of or inability to use the PRODUCT, even if Eyenetra has been advised of the possibility of such damages. No distributor, dealer or other party is authorized to make any warranty on behalf of Eyenetra, or to assume for Eyenetra any other liability with respect to its PRODUCTs.
- Page 24 In no event shall Eyenetra be liable for any damages (including, without limitation, lost profits, business interruption, or lost information) arising out of your use of or inability to use the SOFTWARE, even if Eyenetra has been advised of the possibility of such damages. No distributor, dealer or other party is authorized to make any warranty on behalf of Eyenetra, or to assume for Eyenetra any other liability with respect to its SOFTWARE.
-
Page 25: Terms Of Sale
NETROPTER Terms of Sale... - Page 26 (SOWs), published warranties and service level agreements, and may be available to Customer in hard copy or by accessing the Eyenetra Store. Prices and Taxes. Prices will be as quoted as set out on the Eyenetra Store website at the time an Order is submitted to Eyenetra and accepted.
- Page 27 Supporting Material; (b) modifications or improper system maintenance or calibration not performed by Eyenetra or authorized by Eyenetra; (c) malware (e.g. virus, worm, etc.) not introduced by Eyenetra; or (d) abuse, negligence, accident, fire or water damage, electrical disturbances, transportation by Customer, or other causes beyond Eyenetra’s control.
- Page 28 Eyenetra may modify the product or service so as to be non-infringing and materially equivalent, or may procure a license. If these options are not available, Eyenetra will refund to Customer the amount paid for the affected product in the first year or the depreciated value thereafter or, for support services, the balance of any pre-paid amount.
- Page 29 NETROPTER Refund Policy...
- Page 30 The ten days are for trial and evaluation purposes only. EyeNetra does not refund products that were used in for-profit and not-for-profit environments. The product must return in the same condition that you received it, in the original box with all its components included.
- Page 31 EXCHANGES (IF APPLICABLE) We only replace items if they are defective or damaged. If you need to exchange it for the same item, send us an email at info@eyenetra.com. NETROPTER USER MANUAL DIGITAL VERSION...
- Page 32 When cleaning the aperture windows, use only a clean microfiber cloth so as to prevent accidental scratching of the window. Do not slide the Netropter along a surface such as a table or counter, as this can scratch the aperture windows.
