Summary of Contents for Haug PRX U

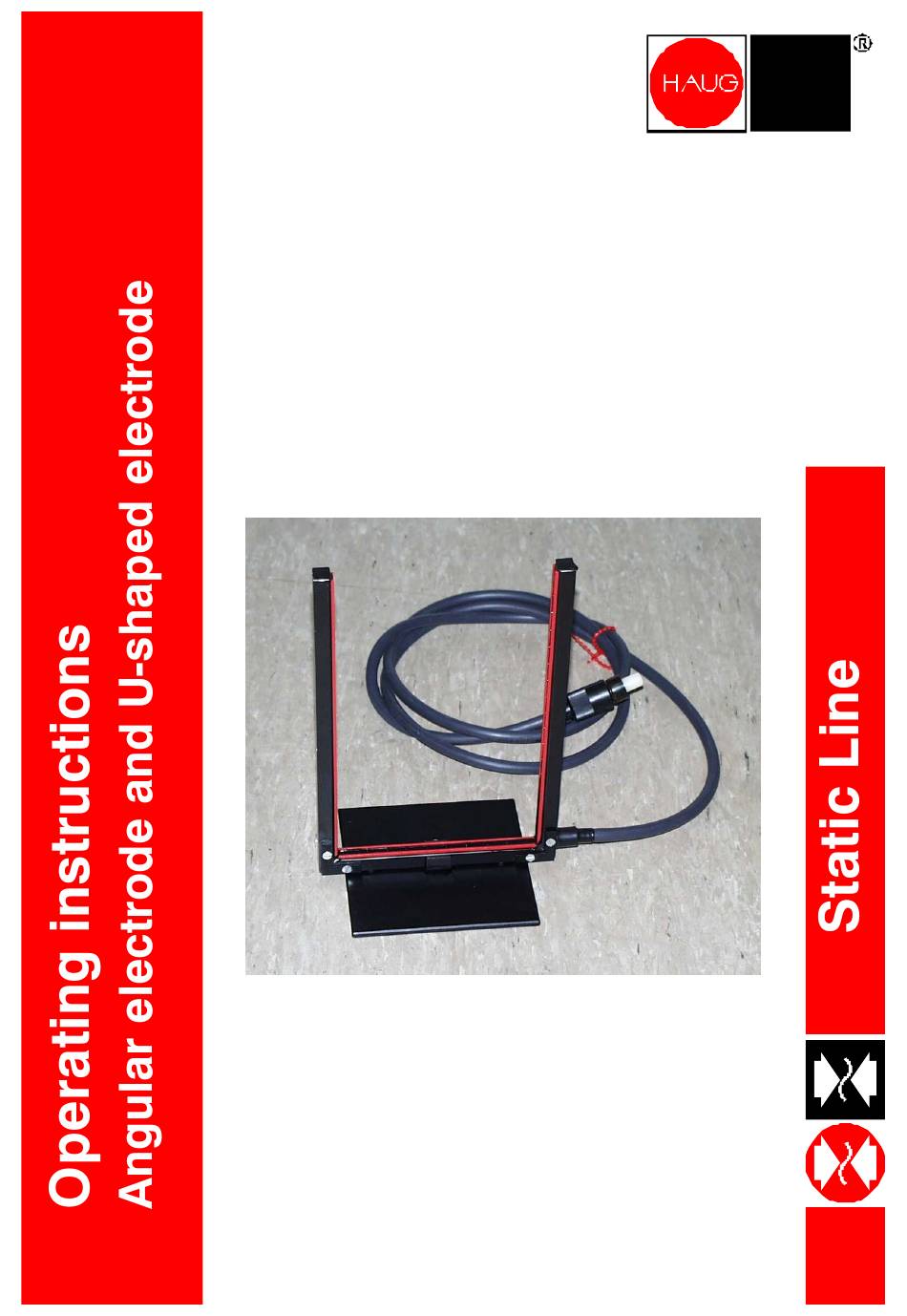

- Page 1 Operating instructions Angular electrode and U-shaped electrode PRX U, PRX W, PRV U, PRV W...
- Page 3 Operating instructions angular electrode and U-shaped electrode Types: PRX U; PRX W PRV U; PRV W Keep in a safe place for future reference! Contents 1. Notes on operating instructions 5. Remedy of defects 2. Safety 6. Maintenance and repairs 3.
-
Page 4: Intended Use
Ionizing units generate positive and negative ions. Their purpose is the elimination of electrostatic charges (e.g. in paper, films and foils, textiles, glass, plastics etc.). HAUG power packs only must be used for supplying the high voltage to the units. Do not install or use the units in areas subject to explosion hazards. -
Page 5: Operator Qualifications
Operating instructions angular electrode and U-shaped electrode Operator qualifications The unit may be installed and put into operation by trained electricians only or by authorized and persons informed about the potential dangers. The above mentioned persons must have read the operating instructions and must follow the instructions, notes and safety advice. - Page 6 Conditions: The power pack and the ionizing unit must be connected correctly. Ionizing units, in combination with HAUG power packs, are intended for the removal of electrostatic charges (e.g. from paper, films and foils, textiles, glass, plastics etc.). Example:...
-
Page 7: Maintenance And Repairs
Operating instructions angular electrode and U-shaped electrode Remedy of defects Any remedy of defects must be carried out by trained electricians only. The above mentioned persons must have read the operating instructions and must follow the instructions, notes and safety advice. In case of defects regarding the power pack and the ionizing unit, please check for correct installation first. -
Page 8: Technical Data
Operating instructions angular electrode and U-shaped electrode Technical data Supply voltage The ionizing units are provided with high voltage from HAUG power packs. Ambient conditions Ambient temperature: Rated application range +5 °C to +45 °C Extreme range for storage and transport -15 °C to +60 °C... - Page 9 ~ 20 - 30 mm...
- Page 10 r > 50 mm...
- Page 12 HAUG GmbH & Co.KG Friedrich-List-Straße 18 D-70771 Leinfelden-Echterdingen Telefon 07 11 / 94 98 - 0 Telefax 07 11 / 94 98 - 298 www.haug.de E-Mail: info@haug.de HAUG Biel AG Postfach 52 CH-2500 Biel/ Bienne 6 Johann-Renfer-Strasse 60...
