Silent Gliss 11092 Manual

Single channel timer unit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Silent Gliss 11092
Single Channel Timer Unit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 11092 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Silent Gliss 11092

Summary of Contents for Silent Gliss 11092

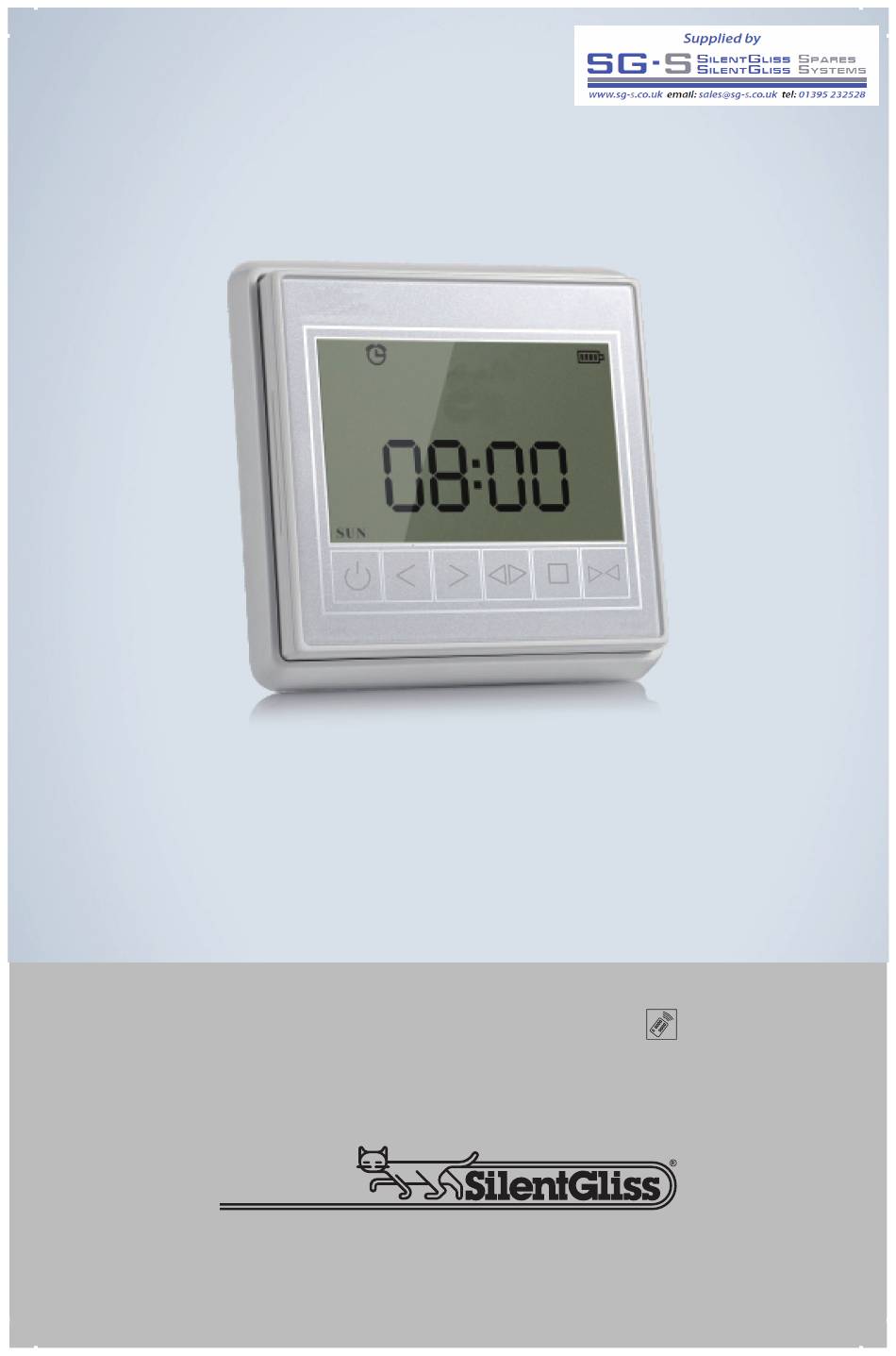

  • Page 1 Silent Gliss 11092 Single Channel Timer Unit...
  • Page 2 User manual and setting instructions Intelligent timer remote control Features • Radio control • Battery operated • LCD display • Touch button control • Timing function with 2 independently programmable time points per day for daily and weekly cycles • Surface mounted back box with magnetic holder...

  • Page 3: Technical Data

    Technical Data Part number 11092 Power Supply 2 x CR2032 (3V) batteries Power 10mW Max Radio Frequency 433.92 MHz Number of channels Operation method Touch screen Timer settings 2 Programmable timing points per day Screen display and button functions Signal status...

  • Page 4: Installation

    Installation Installation with adhesive tape – suitable for glass and smooth tiles adhesive tape adhesive tape Remove backing tapes Stick on glass or smooth tile. Standard wall fixing 60mm Wall Drill and insert Fiix the magnetic Place timer in wall plugs holder magnetic holder Operating Instructions...
  • Page 5 Addressing Timer unit to Motor On Motor Programming button 1. Push programming button with a pin for 1 sec 2. LED blinks red 3. Please do following step below within the next 10 sec On Timer Unit 1. Press function 2.

  • Page 6: Manual Operation

    Manual Operation 1. Press function 2. Press open, close, button for 3s to enter stop to achieve control window open, close, stop movements manually Time and day setting (24 - hour) For example, if you need to set Thursday 16.35, please follow the steps below 1.

  • Page 7: Timer Setting

    4. Press left/right to 5. Press open/close 6. Press function change the to set time/week, button and hold for time/week set the time as 3s, then back to 16:35, week day as control window Thursday Timer setting (2 time points per day – 14 max – Select - A,B.C,E,F,G,H,I,J,L,O,P,S,U).
  • Page 8 3. Press right to 4. Press stop enter change to timing timing setting setting window To set time point (time point 2) 5. Press open/close 6. Press right to 7. Press to change the time ON/OFF open/close point number and to set the time choose point B point as ON...
  • Page 9 Set the timer point to up or down (up) 10. Press right to 11. Press open/close setting open/close to set it as open Note: = open, = close Set days of week (Monday to Friday) 12. Press right to 13. Press week setting open/close to move week day, press...

  • Page 10: Troubleshooting

    14. To set the 15. Press and hold weekly day from the function button Monday to Friday for 3s to save and exit from the window Note If you want to assign a time point to more than one day follow steps 13 – 14, to choose the weekdays required.
  • Page 11 Silent Gliss Ltd. Pyramid Business Park Poorhole Lane, Broadstairs Kent CT10 2PT Great Britain Tel: +44 (0) 1843 863571 Fax: +44 (0) 1843 864503 info@silentgliss.co.uk...
